UNI-T LM70A Laser Distance Meter (up to 70 meter)

The new LM A series laser distance meters are a new design to measure the distance precisely. It can measure AREA, VOLUME, ADDITION, SUBTRACTION, etc easily. It can also store 99 groups of data. These meters can be used in interior/exterior design, construction, factory supervision, engineering inspection, real estate development, and so on.

Features:

• Ergonomic exterior, comfortable handling
• Millimeter accuracy
• 99 groups of data storage
• Quick, self-calculation with real-time readout
• Physical leveler(Horizontal and vertical)
• Multiple functions: Max/Min/continuous measurement, data storage, etc

Specifications:

Specifications	LM70A
Certifications	RoHS
Display size	2.0-inches
Range	70m
Display type	LCD
Min. display unit	0.001m
Measurement units	m/ft/in
Measurement basis	front/rear
Accuracy	±(2mm+5 x 10-5D)
Laser class	2
Laser type	630~670nm, ﹤1mW
Features
Single measurement	√
Continuous measurement	√
Max/Min/Area	√
Volume	√
Pythagoras	√
Add/Subtract	√
Self-calibration	√
Horizontal bubble	√
Data storage	99 groups
Auto power off	3 minutes without operation
Auto laser off	30s without operation
Storage temperature	-20℃~60℃
Operating temperature	0℃~40℃
General Characteristics
Power	1.5V battery (LR03) x 2
Product Color	Red and grey
Product size	122mm x 52mm x 29.5mm

Applications:

Volume measurement

Area measurement

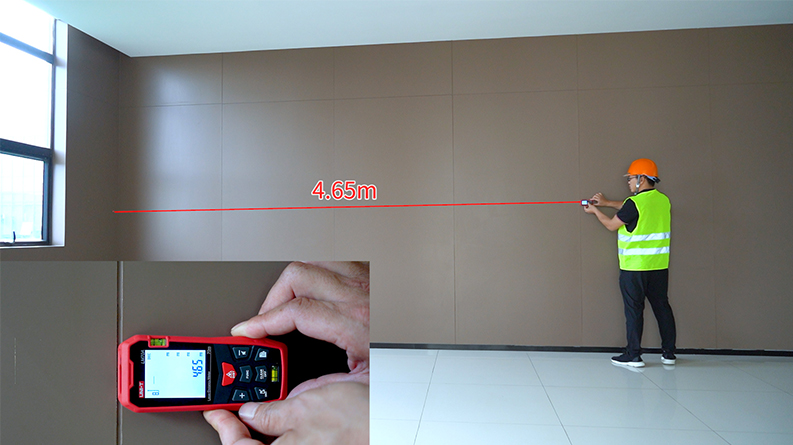

Single measurement (1)

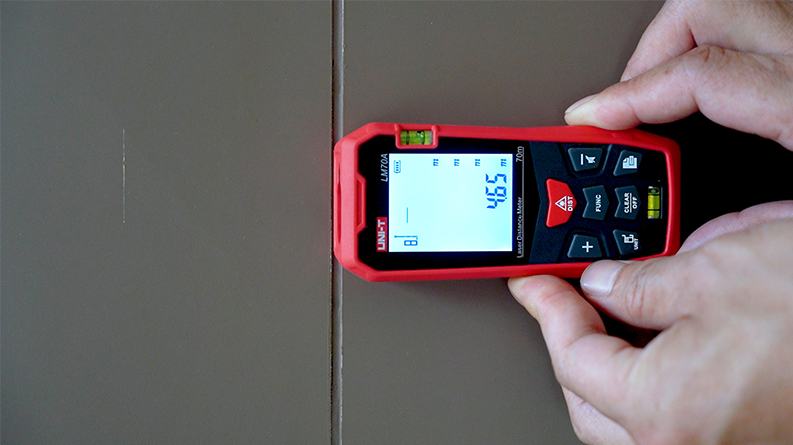

Single measurement (2)

Package includes:

• 1× UNI‑T LM70A laser distance meter
• 2× AAA (1.5 V) batteries for immediate use
• 1× soft carrying case for protection and portability
• 1× user manual for setup and operation guidance

Documents:

• Datasheet
• User Manual
