UNI-T UDP6720 DC Power Supply

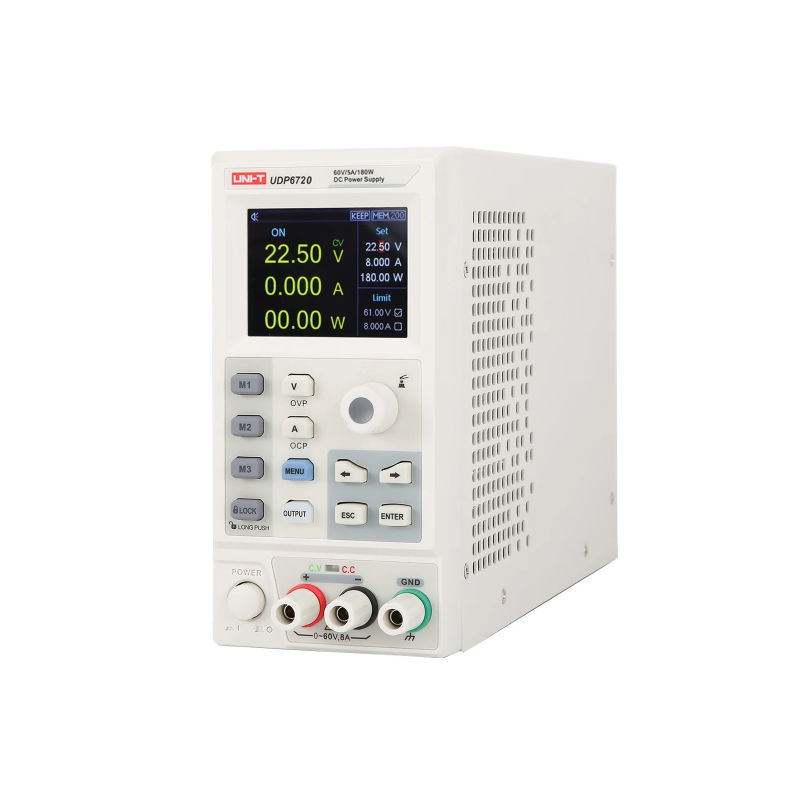

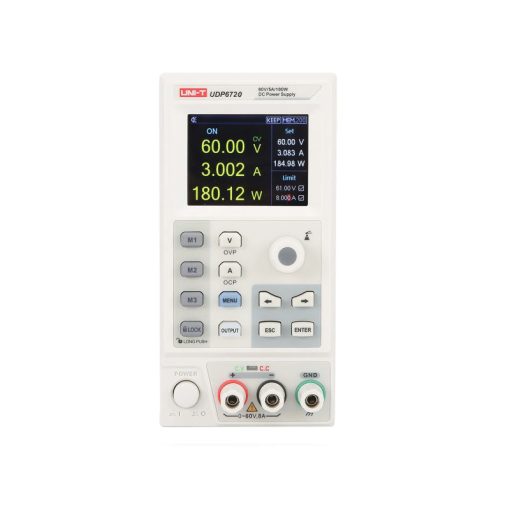

The UNI‑T UDP6720 is a single‑channel, switching DC power supply delivering up to 60 V and 5 A (100 W) with fully digital control and high efficiency. Its compact footprint (87 × 174 × 255 mm) belies a robust feature set designed for laboratory and industrial bench-top applications. A 2.8‑inch full‑color TFT LCD provides intuitive, multi‑parameter readouts, while a rotary encoder and dedicated keys allow rapid adjustment of voltage and current. The UDP6720 supports remote sensing (S+, S– terminals) to compensate for voltage drops on long leads, ensuring accurate load voltages. It offers SCPI‑compliant RS‑232 communication for integration into automated test systems, complete with upper‑computer software for real‑time data logging and trend analysis.
Protection features include adjustable over‑voltage, over‑current, and over‑temperature thresholds, automatically disabling output upon fault. Intelligent fan regulation minimizes acoustic noise and extends component life. Advanced functions such as List and Delayer modes enable programming of up to 48 sequence steps with timing and on/off control, while three memory banks (M1–M3) store up to 200 presets each (600 total) for instant recall.
Overall, the UDP6720 combines versatility, precision, and programmability in a high‑reliability, cost‑effective package.
Features:
- Fully digital control.
- Full‑scale high resolution: 10 mV / 1 mA.
- Low ripple (< 2.0 mV rms) and noise (< 5 mA rms).
- Software calibration/correction.
- Compact dimensions (87 × 174 × 255 mm).
- 2.8″ TFT LCD display.
- Remote compensation (sense terminals).
- RS‑232 communication with SCPI support.
- Intelligent fan regulation.
- Constant‑voltage and constant‑current modes.
- Protections: adjustable OVP, OCP, OTP.
- List & Delayer sequence functions (48 steps).
- Output on/off control switch.
- Three memory banks (M1–M3) storing 200 presets each (600 total).
- High performance‑to‑cost ratio.
Specifications:
| Parameter | UDP6720 |
|---|---|
| Output Range: | 0 – 60 V, 0 – 5 A (100 W) |
| Load Regulation: | Voltage: < 0.01%+3 mVCurrent: < 0.01%+3 mA |
| Line Regulation: | Voltage: < 0.01%+3 mVCurrent: < 0.1%+3 mA |
| Programming Accuracy: | Voltage: < 0.05%+10 mVCurrent: < 0.2%+2 mA |
| Read‑back Accuracy: | Voltage: < 0.05%+10 mVCurrent: < 0.2%+2 mA |
| Ripple & Noise: | Voltage: < 2.0 mV rmsCurrent: < 5.0 mA rms |
| Resolution: | Voltage: 10 mVCurrent: 1 mA |
| Temperature Coefficient: | Voltage: ≤ 100 ppm/°CCurrent: ≤ 200 ppm/°C |
| Display: | 2.8″ LCD, 4‑digit |
| Dimensions (W × H × D): | 87 × 174 × 255 mm |
| Weight: | < 2.5 kg |

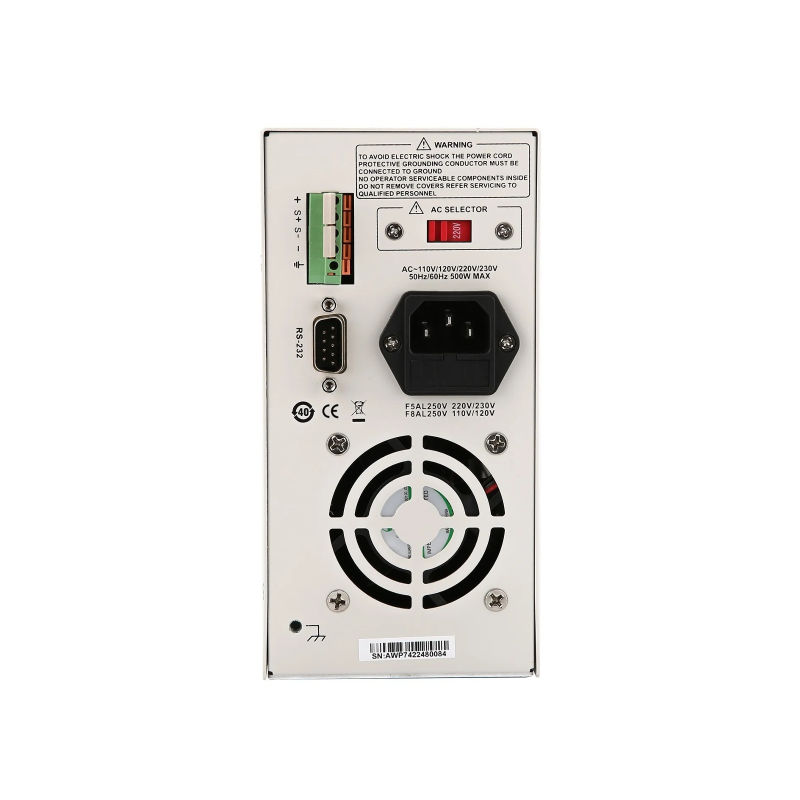

| Interface: | RS‑232, Remote compensation |
| AC Input: | 110/220 V ±10%, 50/60 Hz |
Applications:
- Laboratory Testing.
- Production Line Testing.
- Education and Training.
- R&D and Engineering Design.
- Automated Test Systems.
- Electronic Maintenance and Repair.
Package Contents:
- 1x Instrument (UDP6720 main unit)
- 1x 3‑core power cord (compatible with destination country)
- 1x Spare fuse (250 V / 3.15 A for UDP6720)
- 1x User’s Manual & Upper‑computer software (electronic download)
