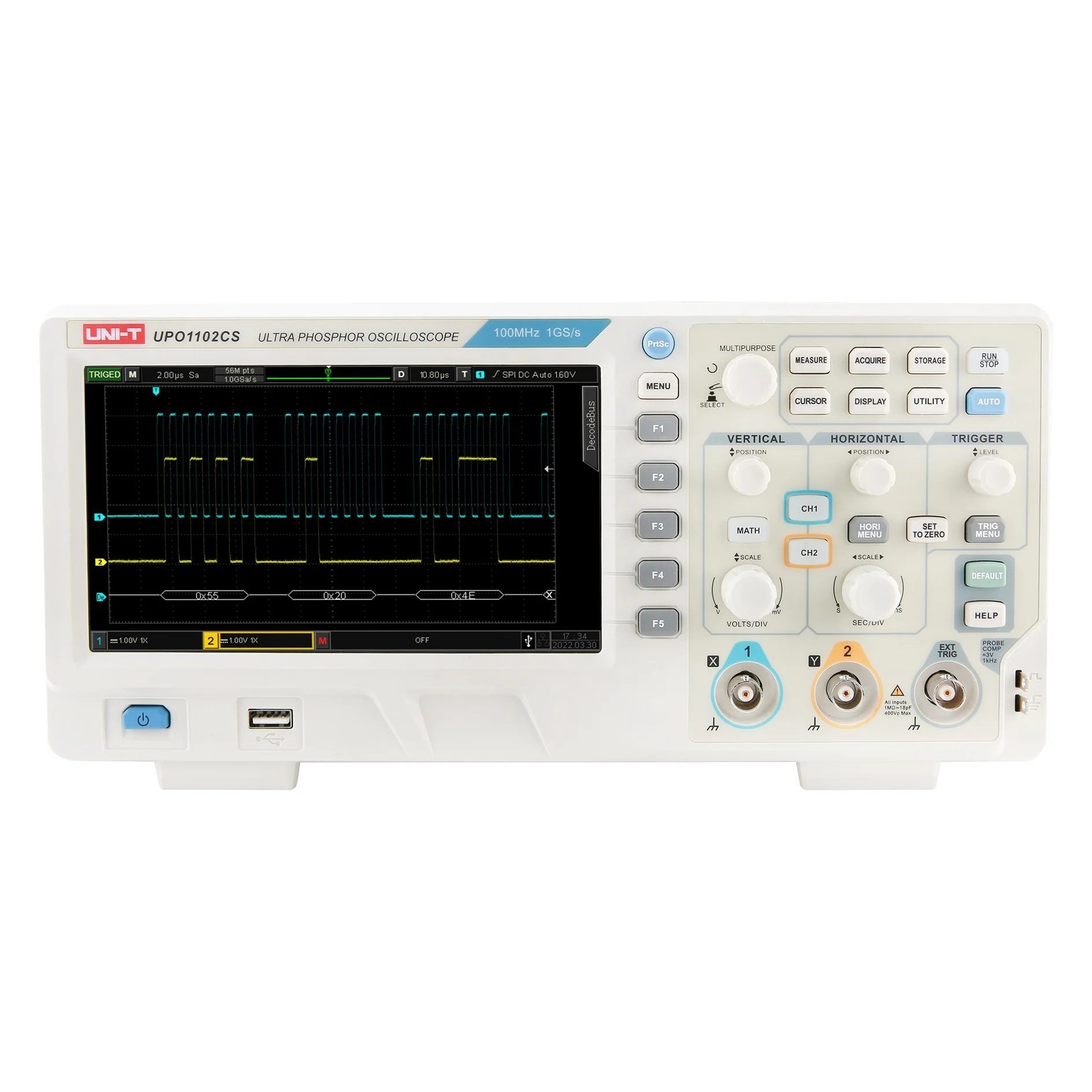

UNI-T UPO1102CS Digital Oscilloscope

2-channel, 100 MHz digital phosphor oscilloscope with 1 GSa/s sampling, 56 Mpts memory, 100,000-frame recording, 1 M-point FFT, DVM, and web control.

15,500.00 EGP

Buy Now
Availability: In Stock
Categories:,
Tags:,
Brand:
UNI-T UPO1102CS Digital Oscilloscope

The UNI‐T UPO1102CS is a 2‐channel, 100 MHz digital phosphor oscilloscope engineered for cost‐effective yet high‐performance waveform capture. Utilizing UNI-T’s Ultra Phosphor technology, it displays up to 256 levels of grayscale, revealing subtle transient details over extended observation periods. Each channel samples independently at 1 GSa/s (non‐interleaved) into a deep 56 Mpts record, enabling high‐resolution acquisitions over long time bases. In Fast Acquire mode, the UPO1102CS captures up to 500 k wfms/s, ensuring rare anomalies are reliably recorded.

Hardware‐based real‐time waveform recording can store up to 100,000 consecutive frames for later playback and analysis. Its 7-inch, 800 × 480-pixel TFT LCD affords clear, intuitive visualization, and front‐panel knobs plus softkeys streamline navigation. Triggering includes edge, pulse width, video, slope, runt, over‐amplitude, delay, timeout, duration, setup/hold, Nth-edge, and pattern, while on-board hardware decoding supports RS232, I²C, SPI, CAN, and LIN buses. A dual-channel DVM provides AC/DC TRMS measurements, and a 7-digit hardware frequency counter facilitates precise frequency analysis. An enhanced 1 M-point FFT with markers enables comprehensive frequency‐domain inspection.

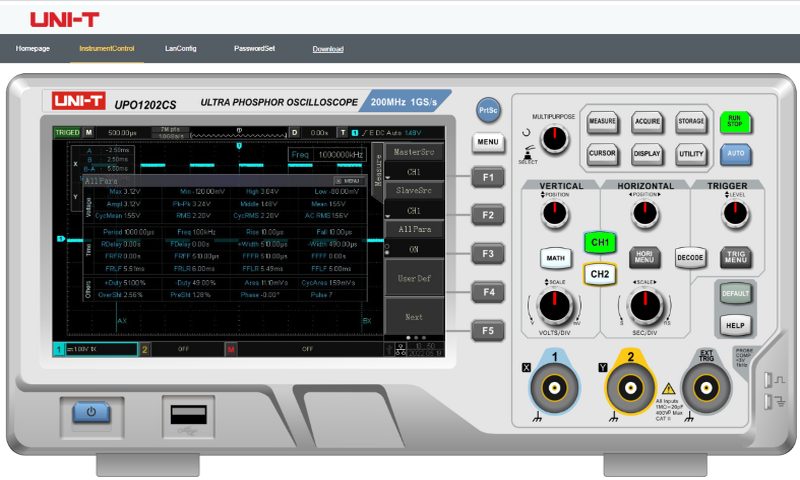

Connectivity via USB Host/Device, LAN, EXT Trig, and AUX Out (Trig Out/Pass/Fail) plus an integrated web server enables remote control and waveform sharing. Its blend of performance, deep memory, and versatile triggering makes the UPO1102CS ideal for electronics development, debugging, field maintenance, and education.

Features:
  • 2 analog input channels with 100 MHz bandwidth.
  • Independent real-time sampling at 1 GSa/s per channel.
  • 56 Mpts memory depth per channel.
  • Fast Acquire capture rate up to 500,000 wfms/s.
  • Hardware real-time waveform recording up to 100,000 frames.
  • Ultra Phosphor display with 256-level grayscale.
  • 7-digit hardware frequency counter.
  • Dual-channel DVM with AC/DC TRMS measurement.
  • Enhanced 1 M-point FFT with markers and multiple detection modes.
  • Rich trigger suite: edge, pulse width, video, slope, runt, over-amp, delay, timeout, duration, setup/hold, Nth edge, pattern.
  • Serial-bus triggering and hardware decoding: RS232, I²C, SPI, CAN, LIN.
  • Multi-Scopes mode for independent dual-channel trigger display.
  • Multiple interfaces: USB Host, USB Device, LAN, EXT Trig, AUX Out (Trig Out/Pass/Fail).
  • Web-based remote control via built-in HTTP server.
Specifications:
Parameter Specification (UPO1102CS)
Analog Bandwidth (–3 dB) 100 MHz
Calculated Rise Time (10–90 %) ≤ 3.5 ns
Analog Channel Count 2
Real-Time Sampling Rate 1 GSa/s per channel (non-interleaved)
Acquisition Modes Normal, Peak Detect, High Resolution, Averaging
Maximum Memory Depth 56 Mpts per channel
Waveform Capture Rate 150 k wfms/s (Normal)
500 k wfms/s (Fast Acquire)
Hardware Recording & Playback Up to 100,000 frames
Vertical Input Coupling DC, AC, GND
Input Impedance 1 MΩ ∥ 16 pF (± 3 pF)
Probe Attenuation Factors 0.001×, 0.01×, 0.1×, 1×, 10×, 100×, 1000×, Custom
Maximum Input Voltage (1 MΩ) 400 V max (DC + Vpeak)
Vertical Resolution 8-bit
Vertical Scale 1 mV/div to 20 V/div
Horizontal Scale (Time Base) 2 ns/div to 1000 s/div
Trigger Types Edge, Pulse Width, Video, Slope, Runt, Over-amplitude, Delay, Timeout, Duration, Setup/Hold, Nth Edge, Pattern
Trigger Couplings DC, AC, HF Reject (≥ 40 kHz), LF Reject (≤ 40 kHz), Noise Suppression
Display 7″, 800 × 480 TFT LCD, 24-bit true color, Point/Vector modes
Waveform Persistence Min, 50 ms, 100 ms, 200 ms, 500 ms, 1 s, 2 s, 5 s, 10 s, 20 s, Infinite
FFT 1 M points max; Hanning, Hamming, Rectangle, Blackman, FlatTop windows; Vrms/dBV scales; Markers
Serial-Bus Decode RS232, I²C, SPI, CAN (optional), LIN (optional); full-memory hardware decoding
DVM AC/DC TRMS, 4-digit, dual-channel independent, Limit Alarm
Frequency Counter 7-digit hardware
Interfaces USB Host, USB Device, LAN, EXT Trig, AUX Out (Trig Out, Pass/Fail, DVM)
Power 100–240 VAC ±10 %, 50/60 Hz
≤ 100 VA
Fuse: 2.5 A, 250 V, F-class
Dimensions (W × H × D) 306 × 138 × 124 mm
Weight 3.0 kg
Operating Environment 0 °C to +40 °C; ≤ 90 % RH (≤ 35 °C); Altitude < 3000 m; Pollution Degree 2
Storage Environment –20 °C to +70 °C; ≤ 60 % RH (35–40 °C); Altitude < 15,000 m
Safety & EMC EN 61010-1/-2-030, UL 61010-1/-2-030, CSA C22.2 61010-1/-2-030; CISPR 11 Class B; IEC 61000 Immunity
Applications:
  • Communications.
  • Semiconductors.
  • Computers.
  • Meter & Instruments.
  • Aerospace & Defense.
  • Instrumentation.
  • Industrial Electronics.
  • Consumer Electronics.
  • Automotive Electronics.
  • Field Maintenance.
  • R&D & Education.
Package Contents:
  • 1x Power cord
  • 1x USB data cable
  • 2x Passive probes
