UNI-T UPO2104E Ultra Phosphor Oscilloscope
The UPO2000E Series offers unprecedented value in customer applications with its innovative technology,industry leading specifications, powerful trigger functions and broad analysis capabilities. The Series is available in 70MHz and 100MHz bandwidth and 2 or 4 analog channels. It adopts UNI-T UPO visualization technology, has a maximum sample rate of 1GSa/s and a standard memory depthof 56Mpts.It comes with a minimum vertical scale input range of 1mV/div, an innovative digital trigger system with high sensitivity and low jitier, and a waveform capture rate of 80,000wfms/s.

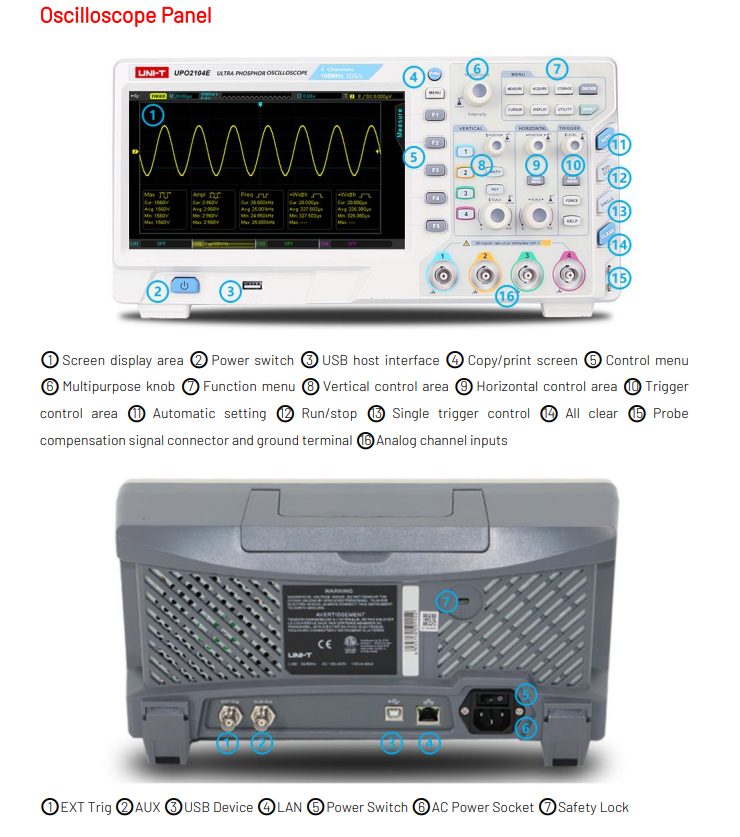

Features
- Digital fluorescent display:
256-level grayscale display capability, timely reflecting the probability of the appearance of the waveform, and the waveform change is clearly visible. - Excellent storage depth:
Up to 56Mpts storage depth, users can capture longer Time signal without losing waveform details.
Up to 80,000wfms/s waveform capture rate
Up to 80,000wfms/s waveform capture rate,discover occasional problems in time, greatly improve the ability to capture extremely low-probability events, and observe signal jitter and glitches more intuitively - Independent time base adjustable:
The time base of each channel is independently adjustable, which is convenient for users to observe four channels of frequencies at the same time Significantly different signals - Rich data measurement functions:
Support 34 kinds of automatic measurement parameter functions, Support Zoom, Math, statistics and advanced calculation functions.
Specifications
| Bandwidth | 100MHz |
| Channels | 4 |
| Sample rate | 1GSa/s |
| Memory depth | 28Mpts (per channel) 56Mpts (when using 1 channel) |
| Waveform capture rate | 80,000wfms/s |
| Trigger types | Edge, Pulse, Slope, Video, Run, Window, N-edge, Delay, Timeout, Duration, Setup/Hold, Code |
| Vertical scale | 1mV/div – 20V/div |
| Horizontal scale | 5ns/div – 50s/div |
| Connectivity | USB Host, USB Device, LAN, AUX Out (Trig Out, Pass/Fail) |
| Decode capabilities | RS-232/UART, I²C, SPI |
| Display | 8″ 800×480 TFT LCD, WVGA (800 x 480) |
| Weight | 3.5kg |
| Dimensions | 336 x 164 x 108mm |
Applications
- Debugging and analysis of analog and digital circuits.
- Embedded system development with serial bus decoding.
- Educational labs and hands‑on electronics training.
- Field service and maintenance for industrial equipment.
Package Contents
- 1× UNI‑T UPO2104E Ultra Phosphor Oscilloscope.
- 1× Passive probes (UT-P05).
- 1× Power cord.
- 1× USB 2.0 cable (UT-D14).
