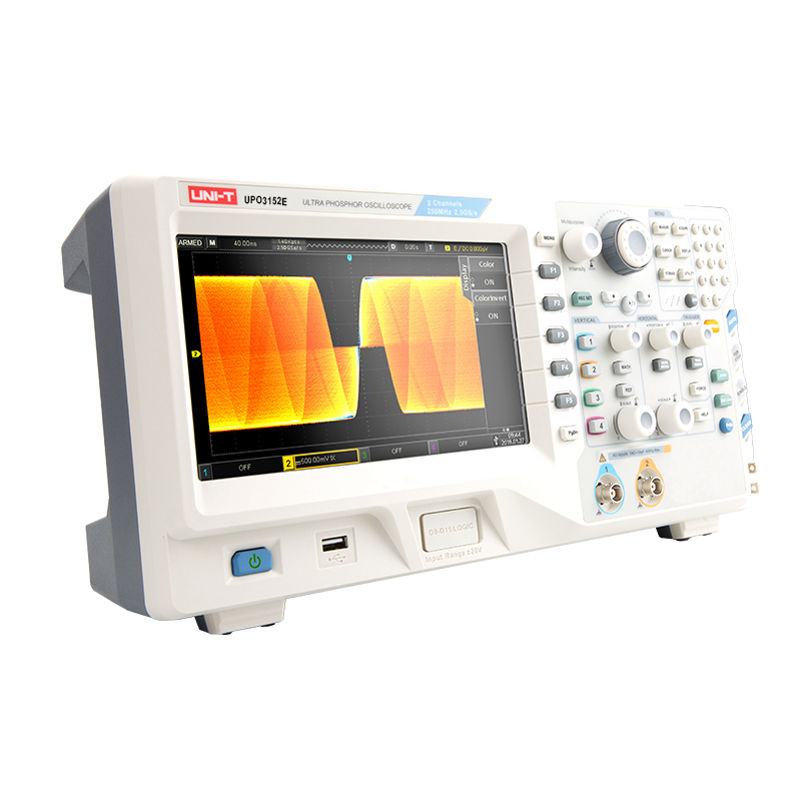

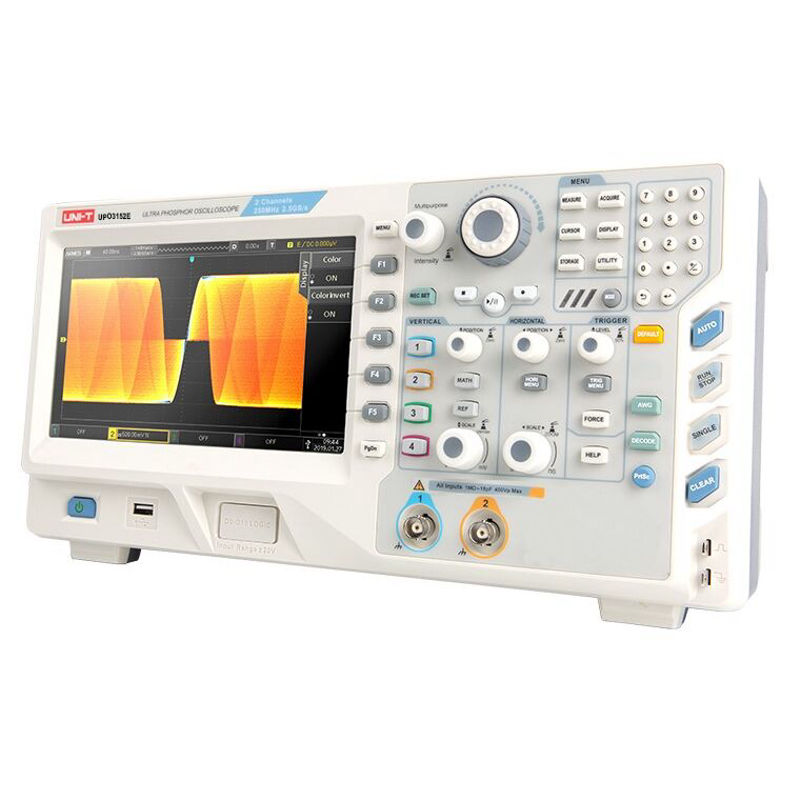

UNI-T UPO3152E Digital Storage Oscilloscope Ultra PHOSPHOR
The UPO3152E is part of UNI‑T’s Ultra PHOSPHOR series, leveraging proprietary three‑dimensional waveform rendering to deliver a vivid, multi‑level intensity‑graded display. With up to 256 levels of grayscale differentiation, users can instantly identify rare or fleeting signal anomalies glitches, jitter, or noise against the steady backdrop of recurring waveforms, ensuring critical events never go unnoticed.
Boasting a 150 MHz analog bandwidth and real‑time sampling rates up to 2.5 GS/s (single channel), the UPO3152E can capture up to 200,000 waveforms per second. Its deep‑memory architecture provides 70 Mpts per channel, allowing extensive time‑span analysis without sacrificing granularity. Whether tracking fast edges in high‑speed digital buses or logging long‑duration analog trends, the device’s record‑and‑playback feature offers an intuitive timeline‑based review of past data.
Encased in a compact chassis with an 8″ TFT LCD (800×480 resolution), the oscilloscope balances screen real estate with bench footprint. Dual‑channel inputs sit alongside versatile I/O USB, LAN, VGA facilitating remote monitoring and data export. Intuitive front‑panel controls and an optional function/arbitrary‑waveform generator module streamline everyday tasks, from routine bench debugging to complex multi‑protocol bus decoding.
Features:
- Ultra PHOSPHOR 2.0 multi‑level intensity display.
- FastAcquire waveform capture: up to 200,000 wfms/s.
- Deep memory: 70 Mpts per channel.
- Real‑time record/playback of >100,000 frames.
- 34 automatic measurement parameters.
- Independent dual time‑base display (4‑window mode).
- Rich trigger suite: edge, pulse‑width, video, slope, Nth‑edge, delay, duration, setup/hold, and more.
- Bus decoding: I²C, SPI, RS232/UART, USB, CAN, LIN, FlexRay.
- Math functions: addition, subtraction, multiplication, division, FFT.
- Optional modules: built‑in 25 MHz function/arbitrary generator & UT‑M12 DMM module.
- Intuitive GUI with soft‑key menus and rotary encoder control.
Specifications:
| Specification | Details |
|---|---|
| Bandwidth: | 150 MHz |
| Channels: | 2 analog |
| Sampling Rate: | 2.5 GS/s (single); 1.25 GS/s (dual) |
| Memory Depth: | 70 Mpts per channel |
| Waveform Capture Rate: | 200,000 wfms/s |
| Display: | 8″ TFT LCD, 800×480 resolution |
| Time Base: | 2 ns/div to 40 s/div |
| Rise Time: | 2.4 ns |
| Input Impedance: | 1 MΩ ± 1% ∥ 18 pF ± 3 pF |
| Vertical Scale: | 1 mV/div to 20 V/div |
| DC Gain Accuracy: | < 5 mV: ± 3%; ≥ 5 mV: ± 2% |
| Interfaces: | USB, LAN, VGA |
| Trigger Types: | Edge, pulse width, video, slope, runt, window, Nth‑edge, delay, duration, setup/hold, code |
| Bus Decode: | I²C, SPI, RS232/UART, USB, CAN, LIN, FlexRay |
| Math Functions: | A ± B, A × B, A ÷ B, FFT, advanced logical operations |
| Power: | 100–240 V AC |
| Dimensions: | 370 × 195 × 125 mm |
| Weight: | 5.17 kg |
Applications:
- High‑speed digital circuit debugging.
- Automotive electronics signal analysis.
- Embedded system development & validation.
- Communication bus decoding & monitoring.
- Education & laboratory instruction.
Package Contents:
- 1x UPO3152E oscilloscope unit
- 2x Passive 10 : 1 oscilloscope probe
- 1x Mains power cable
- 1x USB‑A to USB‑B data cable
- 1x User manual & quick‑start guide
