UNI-T UT-P04 Passive Probe 100MHz

UNI-T UT-P04 Passive Probe 100MHz

The UNI-T UT-P04 is a dependable passive oscilloscope probe that delivers consistent measurement performance across a variety of general-use scenarios. Its construction prioritizes durability and user comfort, offering a balanced tactile feel that ensures secure handling during probing tasks. Users will appreciate the familiarity of its design compact, intuitive, and engineered to pair smoothly with standard oscilloscopes, reducing setup friction. The finish and physical build feel robust, demonstrating that reliability was a core consideration in its design ethos.

Beyond its functional purpose, the UT-P04 exudes a subtle professional elegance. Its matte black finish and clean lines give it a refined, no-frills aesthetic, suitable for both educational labs and professional benches. The probe’s overall form is thoughtfully proportioned neither bulky nor too delicate striking the right balance between portability and presence. It merges practicality with understated design cues, avoiding unnecessary embellishments while maintaining a sense of engineering simplicity.

Handling the UT-P04 reveals a sense of confidence and precision. The included accessories feel solid and purposeful designed for seamless use rather than show. Whether navigating dense circuitry or probing delicate components, the probe responds with reassuring steadiness. From its tactile feedback to its physical feel, the UT-P04 communicates an unspoken promise of reliable performance, rooted in practical engineering and thoughtful material choices.

Features:

• This passive probe is a good oscilloscope accessory, it is suitable for oscilloscope.
• Stable performance and not easy to break
• This can provide professional and accurate measurements.
• Widely used, it can satisfy most people.
• A good helper for instrument engineers.

Specifications:

• Model: UT-P04
• Kind of probe: Passive
• Color: Black
• Attenuation: (1:1/10:1)
• Bandwidth: 100 MHz
• Input Resistance: 1MΩ:10MΩ
• Input Capacitance: 1X: 85pF-115pF, 10X: 14.5pF-17.5pF
• System Bandwidth: 1X:6MHz 10X:100MHz
• Compensation Range:10X: 5pf-30pf
• Maximum Working Input Voltage: 1X:≤200V pk 10X:≤600V pk
• Length: 130cm±1.5cm

Applications:

• General Purpose Oscilloscope Measurements.
• Circuit Debugging and Testing.
• Educational and Training Environments.
• Electronics Maintenance and Repair .
• Signal Integrity Analysis.

Package Contents:

• 1x Adjustment Tool
• 1x IC Tip

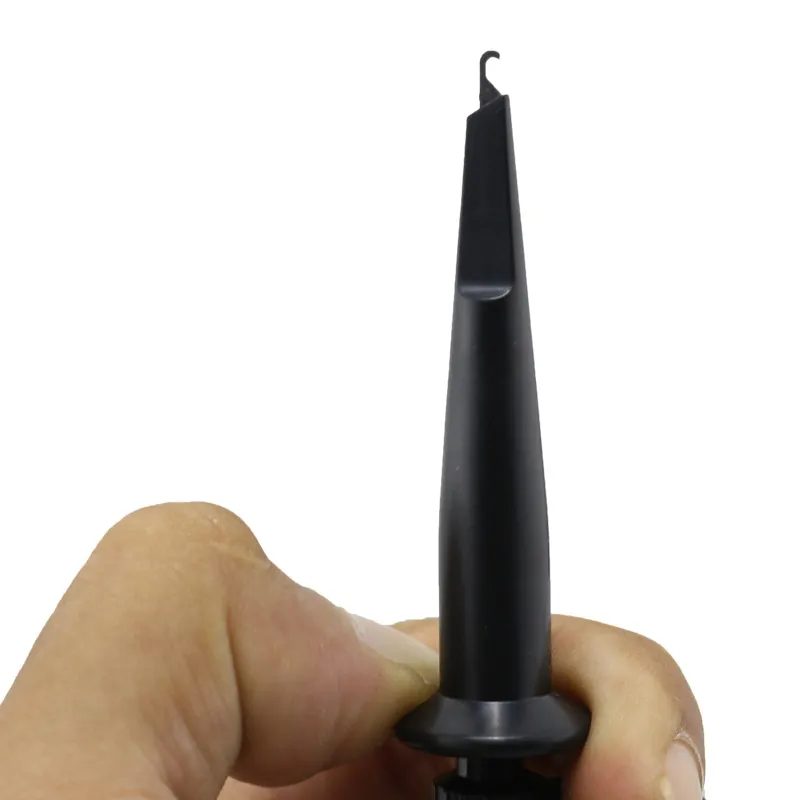

• 1x Sprung Hook

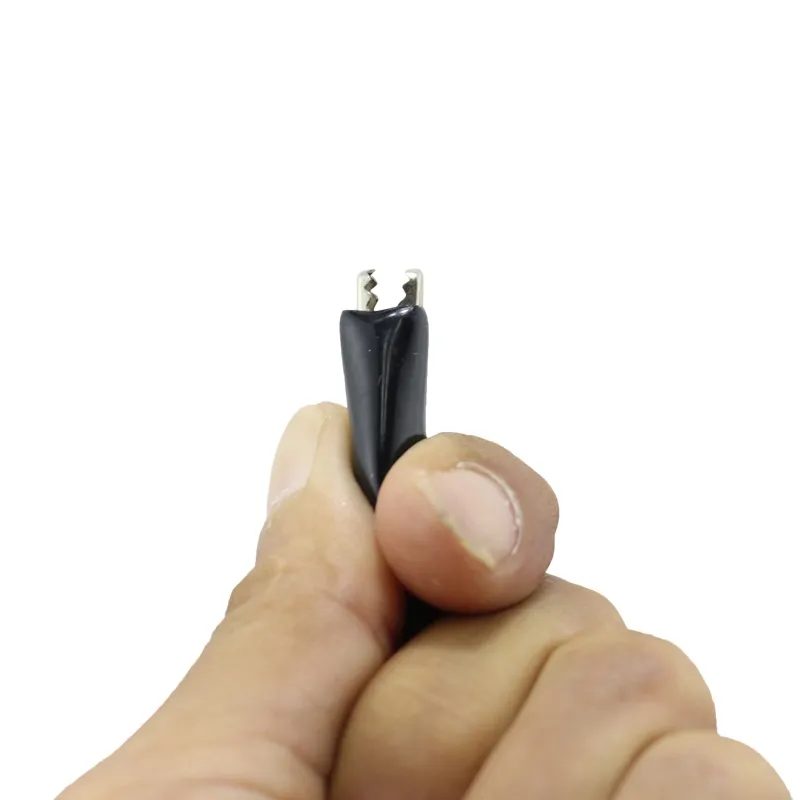

• 1x Ground Lead
• 1x BNC Adapter
• 1x Line Marker
• 1x Electrical Contact Ground

Document:

UT-P04
