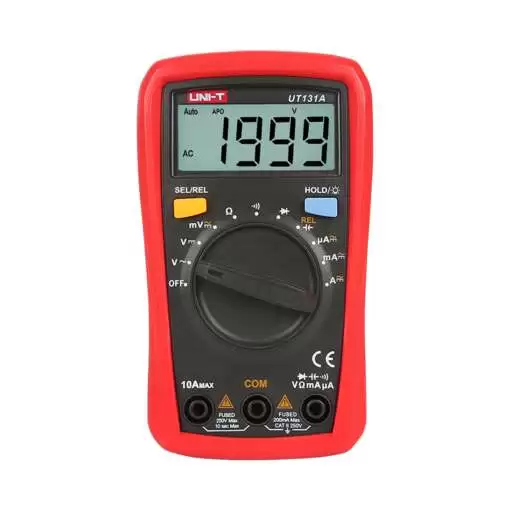

UNI-T UT131A Palm Size Multimeter
The new generation UT131 series redefines the performance standards for entry-level digital multimeters. Our innovative industrial design ensures that these products can withstand 2 meters drop. The new LCD display layout provides a better user experience. This series ensures that users can work safely in CAT II 250V environment. Special features are: 2mF capacitance test (UT131A)
Features:
- Clear LCD display
- Comfortable protective cover, with test lead hanging groove
- 2 meters drop test, precision protection
- Loud buzzer sound
- Ergonomic design
Specifications:
| Specifications | Range | UT131A |
| DC voltage (V) | 200mV~250V | ±(0.5%＋3) |
| AC voltage (V) | 200mV~250V | ±(0.7%+3) |
| DC current (A) | 200μA~10A | ±(1%+3) |
| AC current (A) | 200μA~10A | ±(1.2%+3) |
| Resistance (Ω) | 200Ω～200MΩ | ±(0.8%+2) |
| Capacitance (F) | 2nF~2mF | ±(3%+5) |
| Features | ||
| Display count | 2000 | |
| Auto power off/Auto backlight off | √ | |
| Diode test/Continuity buzzer | √ | |
| Drop test | 2m | |
| Test probe holder | √ | |
| Range selection | Auto | |
| General Characteristics | ||
| Power | 1.5V battery (R03) x 2 | |
| Display | 53mm x 28mm | |
| Product net weight | 473g | |
| Product Color | Red and grey | |
| Product size (W x H x D) | 131mm x 95mm x 58mm | |
Applications:
- Measuring DC / AC voltage.
- Measuring DC / AC current.
- Resistance testing.
- Capacitance measurement.
- Diode testing.
- Continuity / buzzer test.
Package Contents:
- 1x UT131A multimeter unit
- 1x Test leads (pair)
- 1x Protective case / cover
- 1x User manual / instruction sheet
