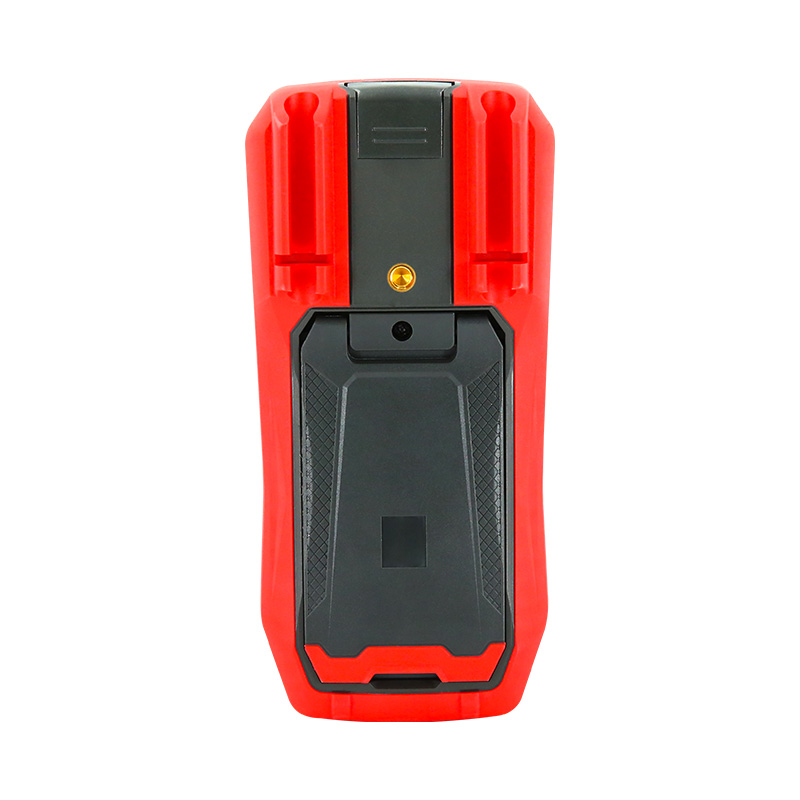

UNI-T UT161B 1000V True RMS Digital Multimeters
True-RMS UNI-T UT161B multimeter 6000 counts, up to 1000V AC/DC, NCV, backlight. Rugged, fused inputs, CAT III/IV safety.
2,800.00 EGP
Buy NowUNI-T UT161B 1000V True RMS Digital Multimeters
The UNI-T UT161B is a robust handheld true-RMS digital multimeter engineered for professional electricians and technicians. With a 6000-count display, clear analog bar, and broad measurement capability up to 1000V AC/DC, it combines durable construction, safety ratings and intuitive controls to handle demanding field tasks.
The meter supports auto and manual ranges, data hold, relative measurement and a backlit display for low-light work. Non-contact voltage (NCV), audible and visible alarms for high voltage/current, and max/min functions improve on-site diagnostics. USB data communication enables logging when the optional module is connected, and the meter offers peak measurement and auto power-off to conserve batteries. It measures AC/DC voltage and current, resistance, capacitance, frequency and continuity, providing versatile diagnostics, and includes gold-plated test leads for reliable connections.
Suitability and durability: Designed to meet CAT III 1000V and CAT IV 600V safety standards, the UT161B withstands everyday electrical environments. Its compact footprint, long battery life with four AAA cells, fused current inputs and full-scale overload protection make it suitable for maintenance, troubleshooting and verification across industrial, commercial and residential systems. Its ergonomic design reduces hand fatigue during prolonged use, improving safety.
Features:
- True RMS measurement capability.
- 6000-count LCD with analog bar.
- Measures up to 1000V AC/DC.
- Data hold and relative (REL) measurement.
- Auto and manual ranging.
- Backlight for low-light operation.
- Non-contact voltage (NCV) detection with audible/visual alarm.
- Max/Min and peak measurement functions.
- Diode and continuity tests.
- USB data communication (with optional module).
- Audible and visible high voltage/current alarm.
- Fused current inputs and full-scale overload protection.
- Auto power-off to save batteries.
Specifications:
| Specification: | Details: |
|---|---|
| Model: | UT161B |
| Display count: | 6000 counts |
| Display: | 6000-count LCD with 31-segment analog bar |
| Maximum voltage: | 1000 V AC/DC |
| Maximum current: | 10 A (10 s limit); fused inputs |
| DC voltage accuracy (example): | ±(0.8%+5) on lower ranges (see manual for full table) |
| AC voltage bandwidth: | 40 Hz ~ 500 Hz (UT161B) |
| Resistance range: | Up to 220 MΩ (ranges detailed in manual) |
| Capacitance: | Ranges up to 220 mF (see manual) |
| Frequency range: | 10 Hz ~ 220 MHz (range/accuracy depend on model/range) |
| Input impedance: | ≈1 GΩ for mV range; ≈10 MΩ for other ranges |
| Safety rating: | CAT III 1000 V, CAT IV 600 V |
| Battery: | 4 × 1.5 V AAA |
| Fuse protection: | F1: 600 mA, 1000 V (Φ6×32 mm); F2: 11 A, 1000 V (Φ10×38 mm) |
| Dimensions: | 186 × 89 × 49 mm |
| Weight: | ≈400 g |
| Operating temperature: | 0 °C ~ 40 °C |
| Storage temperature: | -10 °C ~ 50 °C |
| Relative humidity: | ≤75% at 0–30 °C; ≤50% at 30–40 °C |
| EMC / Standards: | Conforms to EN61326-1:2006; IEC 61010-1 safety |
Applications:
- General electrical maintenance and troubleshooting.
- HVAC system diagnostics and servicing.
- Industrial equipment commissioning and repair.
- Electronics testing and field service.
Package Contents:
- 1x UT161B multimeter
- 1x Pair test leads
- 1x USB cable
- 1x User Manual / Quick Start Guide
- 1x Download Operation Guide
- 4x 1.5V AAA batteries
