UNI-T UT200B+ Digital Clamp Meter
The UNI-T UT200B+ is a compact, handheld digital clamp meter engineered for precise AC current measurements in residential and light commercial environments. Designed with electricians and DIY enthusiasts in mind, it features a slim, ergonomic body that easily fits in a tool pouch or pocket. The large 28 mm jaw allows users to clamp onto wires without disconnecting them, streamlining the process of troubleshooting live circuits.
Built‐in True RMS measurement ensures accurate readings on both sinusoidal and non‐sinusoidal waveforms. An integrated LIVE test function provides a quick safety check before engaging with live conductors, while audible and visible alarms alert users to hazardous conditions. Overload protection and automatic power‐off safeguard both the meter and the operator. Despite its small footprint, the UT200B+ offers a bright backlit LCD for clear readability in dimly lit areas, as well as a handy flashlight to illuminate workspaces. Multilingual support (EN, RU, ES) makes it accessible to a broad user base.
With its combination of accuracy, user‐friendly interface, and rugged construction, the UT200B+ serves as a reliable everyday tool for electricians performing routine maintenance, repair tasks, or quick verification of household wiring.
Features:
- True RMS AC current measurement for accurate readings on complex waveforms.
- Minimum AC current range of 3 A for low‐current diagnostics.
- LIVE test function to verify circuit presence without contact.
- Audible and visible alarms for warning of unsafe conditions.
- Large 28 mm jaw opening to clamp around thick conductors without disconnecting.
- Overload protection to prevent damage during unexpected spikes.
- Auto power‐off to conserve battery life.

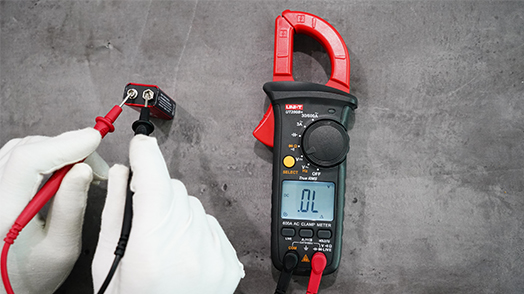

- Diode check and continuity test with audible beep.
- Data hold and backlit display for easy viewing in low light.
- High‐voltage warning indicator.
- Built-in flashlight for illuminating dark work areas.
- Multilingual interface (EN, RU, ES) for broad usability.
Specifications:
| Specification | UT200B+ Detail |
|---|---|
| Display Count: | 3 099 counts |
| Jaw Size: | Ø 28 mm |
| Overvoltage Category: | CAT III 600 V |
| AC Current (ACA) Range: | 3 A / 600 A |
| AC Current Accuracy: | ±(1.0%+3) |
| AC Voltage (ACV) Range: | 3 V ~ 600 V |
| AC Voltage Accuracy: | ±(4%+10) |
| DC Voltage (DCV) Range: | 3 V ~ 600 V |
| DC Voltage Accuracy: | ±(3%+5) for 3 V ~ 300 V; ±(4%+5) for 300 V ~ 600 V |
| Frequency (Hz) Range: | 10 Hz ~ 10 kHz |
| Frequency Accuracy: | ±(1.2%+5) |
| Resistance Range: | 300 Ω ~ 3 MΩ |
| Resistance Accuracy: | ±(1.0%+5) for 300 Ω ~ 300 kΩ; ±(2.0%+5) for 300 kΩ ~ 3 MΩ |
| Capacitance Range: | 30 nF ~ 1 mF |
| Capacitance Accuracy: | ±(5%+10) for 30 nF ~ 300 nF; ±(4%+10) for 3 µF ~ 300 µF |
| Auto Range: | Yes |
| Diode/Continuity Test: | Yes (with audible beep) |
| Hold/Backlight: | Yes |
| High‐Voltage Warning: | Yes |
| Flashlight: | Yes |
| Audible/Visible Alarm: | Yes |
| True RMS Measurement: | Yes |

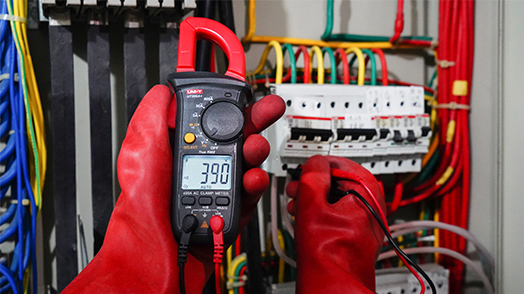

Applications:
- Repair and Maintenance of Household Equipment.
- Home and DIY Electrical Troubleshooting.
Package Include:
- 1x Digital Clamp Meter (UNI-T UT200B+)
- 1x Pair of test probes (test leads)
- 1x Carrying bag (case)
- 1x User manual
