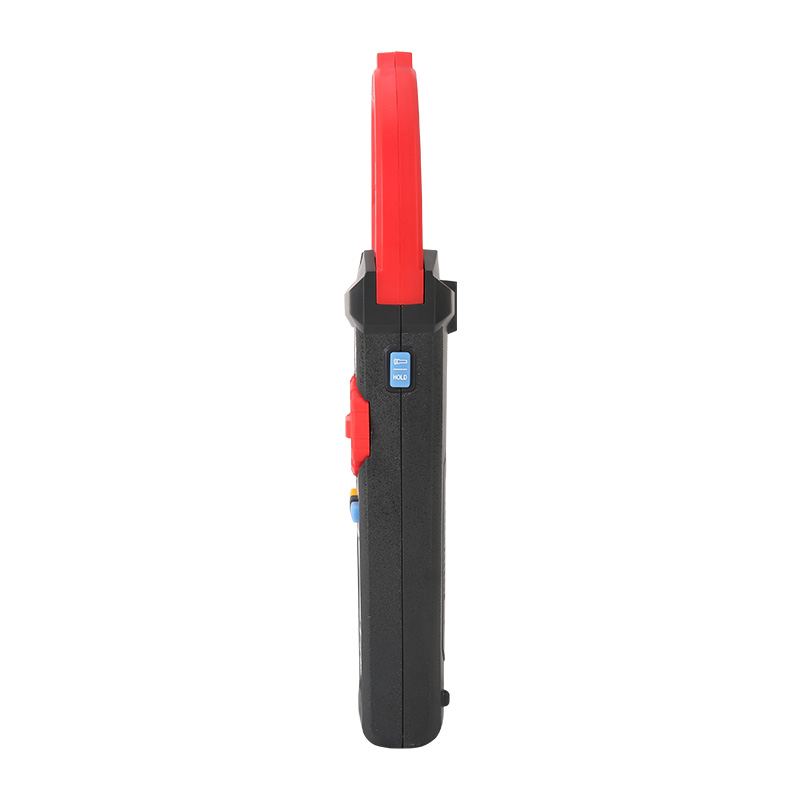

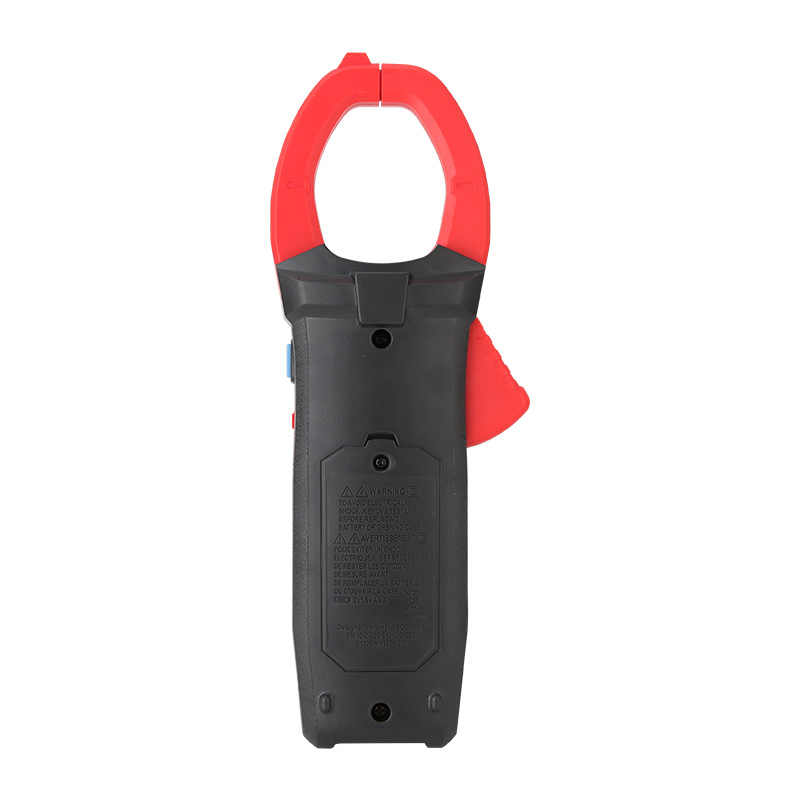

UNI-T UT205A+ Digital Clamp Meter
UT205A+ 1000A AC clamp meters are reliable and portable tools for electronics and electrical maintenance. Featuring a lightweight and slim design, and backlight for working in dark environments.
Features:
- 1000A AC current measurement
- 1000V AC/DC voltage measurement
- ACV frequency 10Hz～10kHz
- Jaw opening: 45mm
- Resistance / capacitance / frequency measurement
- Auto range / backlight / low battery indication
- Continuity / diode / duty cycle
- MAX/MIN
- Data hold / flashlight / relative mode
- Auto power off
- CAT II 1000V/CAT III 600V
Specifications:
| Specifications | Range | UT205A+ |
| AC current (A) | 1000A | ±(1.5%+5) |
| AC voltage (V) | 1000V | ±(1.0%＋2) |
| ACV frequency (Hz) | 10Hz～10kHz | ±(1.0%＋5) |
| DC voltage (V) | 1000V | ±(0.7%＋3) |
| Resistance (Ω) | 40MΩ | ±(0.8%+2) |
| Capacitance (F) | 40mF | ±(4%+5) |
| Frequency (Hz) | 10.00Hz～10.00MHz | ±(0.1%+4) |
| Features | ||
| Display count | 4099 | |
| Jaw opening | 45mm | |
| Auto range | √ | |
| Duty cycle | √ | |
| Diode test | √ | |
| Continuity | √ | |
| Low battery indication | ＜2.5V approximately | √ |
| Data hold | √ | |
| Auto power off | Approximately 15 minutes | √ |
| Max/Min | √ | |
| Flashlight | √ | |
| Backlight | √ | |
| Safety rating | CAT II 1000V/CAT III 600V | √ |
| General Characteristics | ||

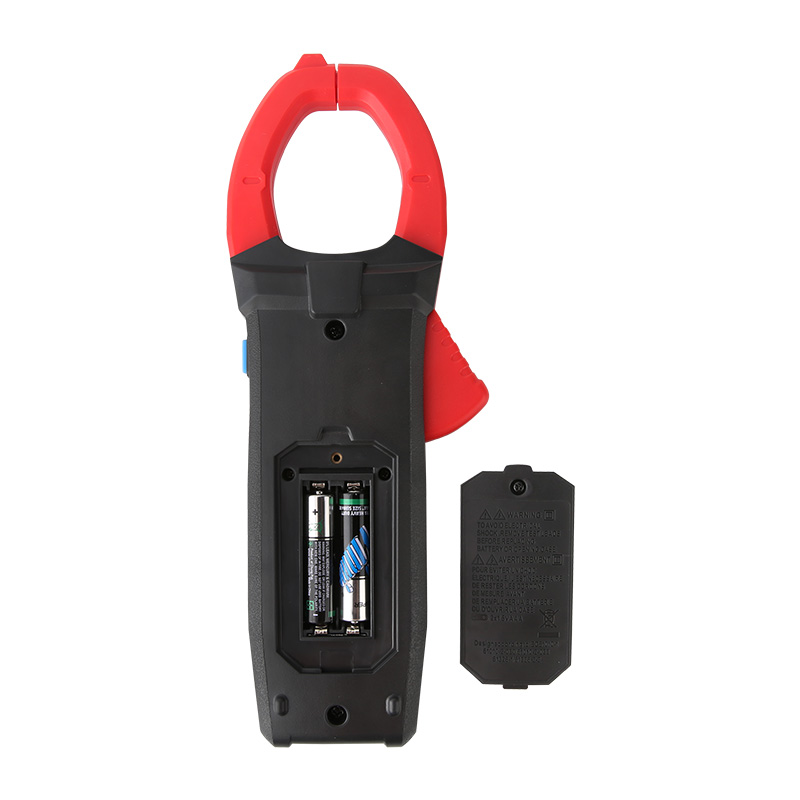

| Power | AAA 1.5V x 2 | |
| Standard accessories | Test leads, batteries, temperature probe(UT206A+), English manual | |
| Product color | Red + Gray | |
| Product net weight | 235g (Including batteries) | |
| Product size | 242×76.5x52mm | |

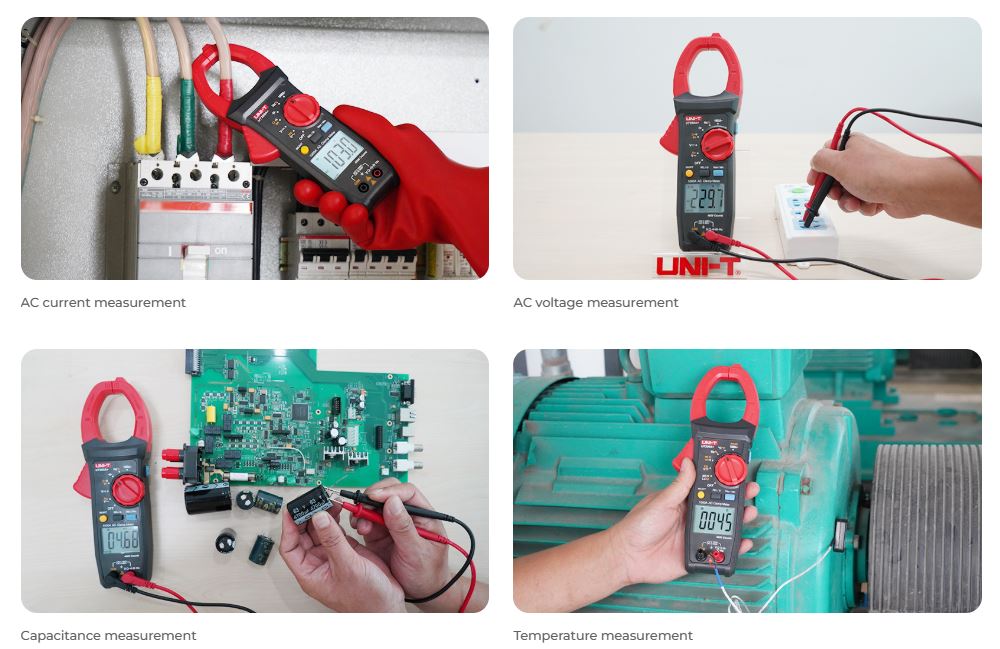

Applications:
AC current measurement
AC voltage measurement
Capacitance measurement
Package Contents:
- 1x Digital Clamp Meter UT205A+
- 1x Test Leads
- 1x Carrying Bag
- 1x User Manual
