UNI-T UT206A+ Digital Clamp Meter

UNI-T UT206A+ Digital Clamp Meter

The UNI-T UT206A+ is a handheld digital clamp meter engineered with a focus on portability and durability. It features a lightweight and slim profile, making it easy to carry and handle during extended use. The device is built to withstand demanding environments, incorporating a robust housing that meets international safety standards. Its ergonomic design includes a clearly labeled function switch, a large LCD display, and well-placed buttons for intuitive operation, ensuring that users can work efficiently even in low-light conditions thanks to its integrated backlight.

This clamp meter is designed for versatile electrical measurement tasks, offering a user-friendly interface that simplifies complex diagnostics. It includes a responsive jaw opening mechanism that allows for easy clamping around conductors up to 45mm in diameter. The meter supports automatic range selection and features functions like data hold, relative measurement, and a continuity buzzer for quick checks. Its operation is streamlined with dedicated buttons for mode selection, backlight control, and inrush current measurement, enabling both novice and professional users to obtain accurate readings with minimal effort.

Safety is a central aspect of the UT206A+‘s design, adhering to CAT II 1000V and CAT III 600V safety ratings to protect users during high-voltage measurements. It includes protective features such as overload indication, low-battery warnings, and automatic power-off to conserve energy and prevent misuse. The construction includes insulated test leads and a finger guard to reduce the risk of electric shock, ensuring reliable performance in various electrical maintenance and troubleshooting scenarios while prioritizing user protection.

Features:

• Lightweight and compact design.
• Backlight for use in dark environments.
• Flashlight function.
• Non-contact voltage (NCV) detection.
• Inrush current measurement.
• Data hold function.
• Max/Min recording.
• Auto power off.
• Auto range selection.
• Continuity test with buzzer.
• Diode test capability.
• Low battery indication.
• Duty cycle measurement.

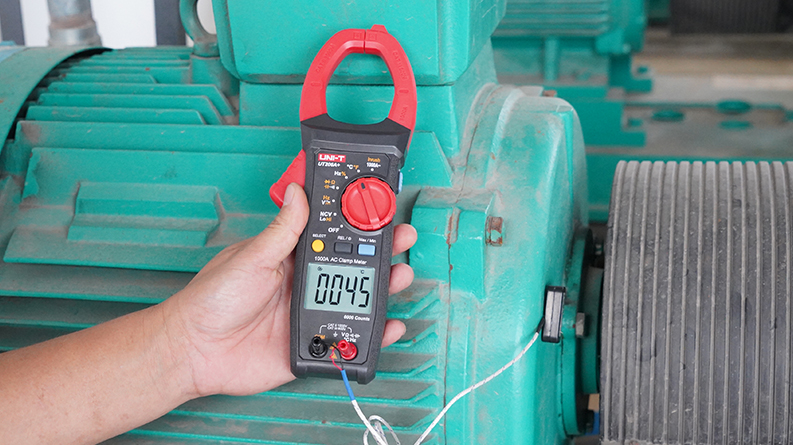

• Temperature measurement (with probe).
• Large jaw opening (45mm).

Specifications:

Applications:

• Electrical Maintenance.
• HVAC System Testing.
• Automotive Diagnostics.
• Industrial Equipment Inspection.
• Home Appliance Repair.
• Power Quality Monitoring.
• Energy Auditing.
• Field Service Engineering.

Package Contents:

• 1x User manual
• 1x Test leads (1 pair)
• 1x Temperature probe
• 1x Carrying bag

Documents:

• Datasheet
• User Manual
