UNI-T UT210E Current Clamp and Multimeter
The UNI-T UT210E is a compact, handheld clamp meter that merges the functionalities of a digital clamp and a multimeter. Its small form factor and ergonomic build make it suitable for carrying around easily, yet it retains a robust feel. The clamp jaw, built into the upper portion, allows for measuring both AC and DC currents up to 100 A without needing to break the circuit, which simplifies many kinds of electrical diagnostics. The front display is large, clear, and back-lit, aiding readability even in dimly lit environments.
Inside its casing, the UT210E incorporates auto-ranging circuits and specialized filtering to reduce interference from high-frequency signals. This gives more stable readings especially in environments where noise or rapidly changing signals are present (e.g. circuits with variable frequency drives or switching equipment). The meter also provides multiple measurement modes beyond just current and voltage including resistance, capacitance, continuity, and diode checks making it a versatile tool for general electrical work and troubleshooting.

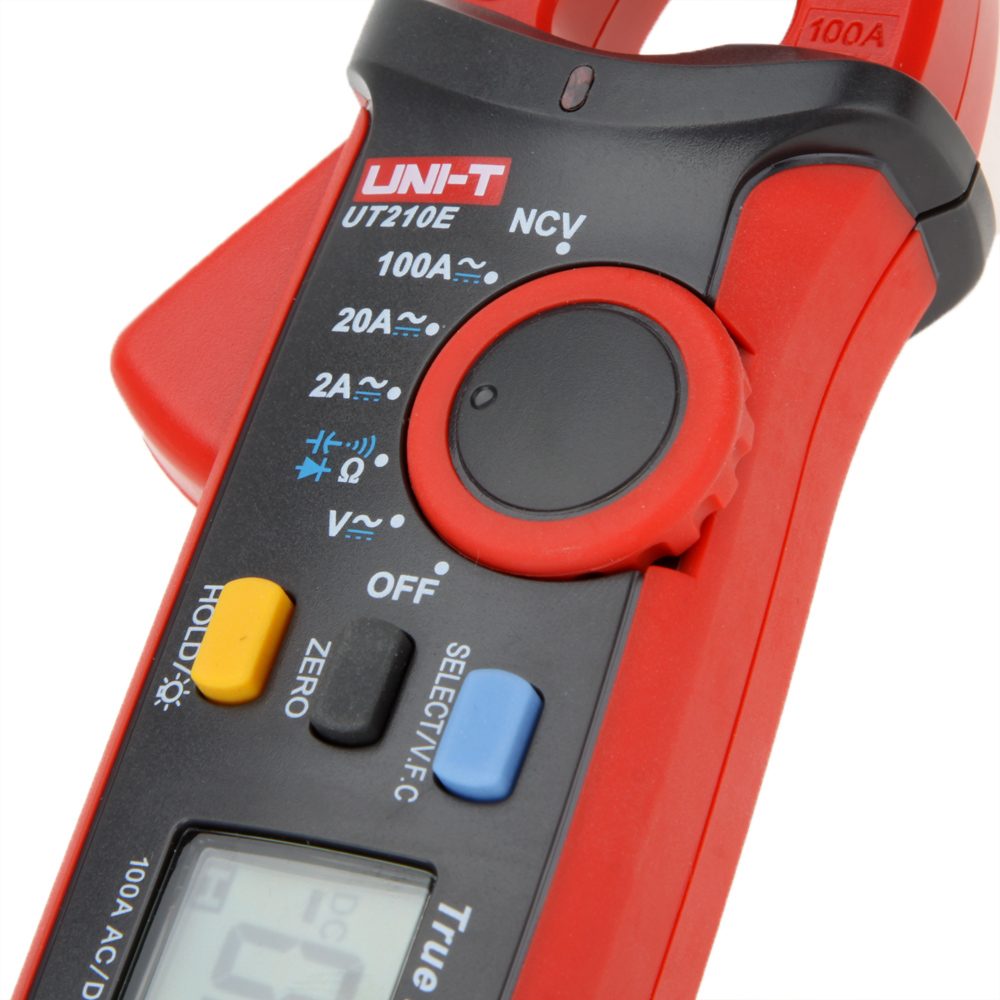

Although rich in capability, the UT210E emphasizes safety and user convenience. It includes non-contact voltage detection (NCV), overload protection, data hold, and zeroing functions. The side mode switch, along with tactile buttons for backlight, zero, etc., are designed for straightforward operation. AAA batteries power it, keeping maintenance simple. In short, it strikes a balance between functionality, portability, and safety, making it a solid choice for professionals, hobbyists, and anyone needing reliable electrical measurements in tight spaces or in field use.
Features:
- True RMS measurement for AC signals.
- Measures both AC and DC current via clamp.
- Auto-range capability.
- Non-contact voltage detection (NCV).
- VFC (Voltage Frequency Converter / filter) for variable frequency interference suppression.
- Large back-lit LCD display.
- Data Hold function.
- Zeroing (“Zero”) mode.
- Continuity buzzer.
- Diode test function.
- Auto power off.
- Low battery indication.
Specifications:
| Specifications | Range | UT210E |
| AC current (A) | 100A | ±(2.5%+5) |
| DC current (A) | 100A | ±(2%+3) |
| AC voltage (V) | 600V | ±(1%+3) |
| DC voltage (V) | 600V | ±(0.7%+3) |
| Resistance (Ω) | 20MΩ | ±(1%+2) |
| Capacitance (F) | 20mF | ±(4%+5) |
| Features | ||
| Display count | 2000 | |
| Continuity buzzer | √ | |
| Auto range | √ | |

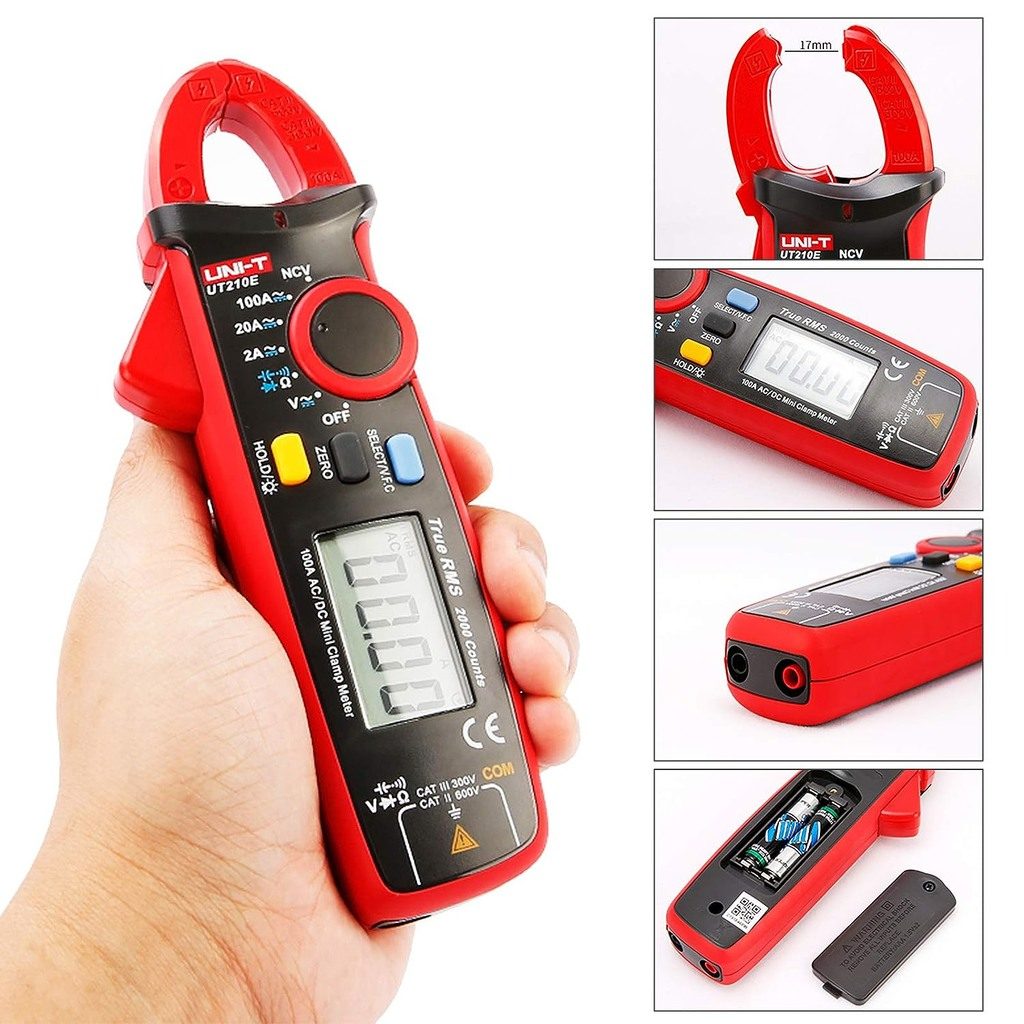

| Jaw opening | 17mm | |
| Diode test | Around 3.0V | √ |
| General Characteristics | ||
| Power | 1.5V battery (R03) x 2 | |
| Display | 39.3mm x 26.5mm | |
| Product Color | Red and grey | |
| Product net weight | 170g | |
| Product size | 175mm x 60mm x 33.5mm | |
Applications:

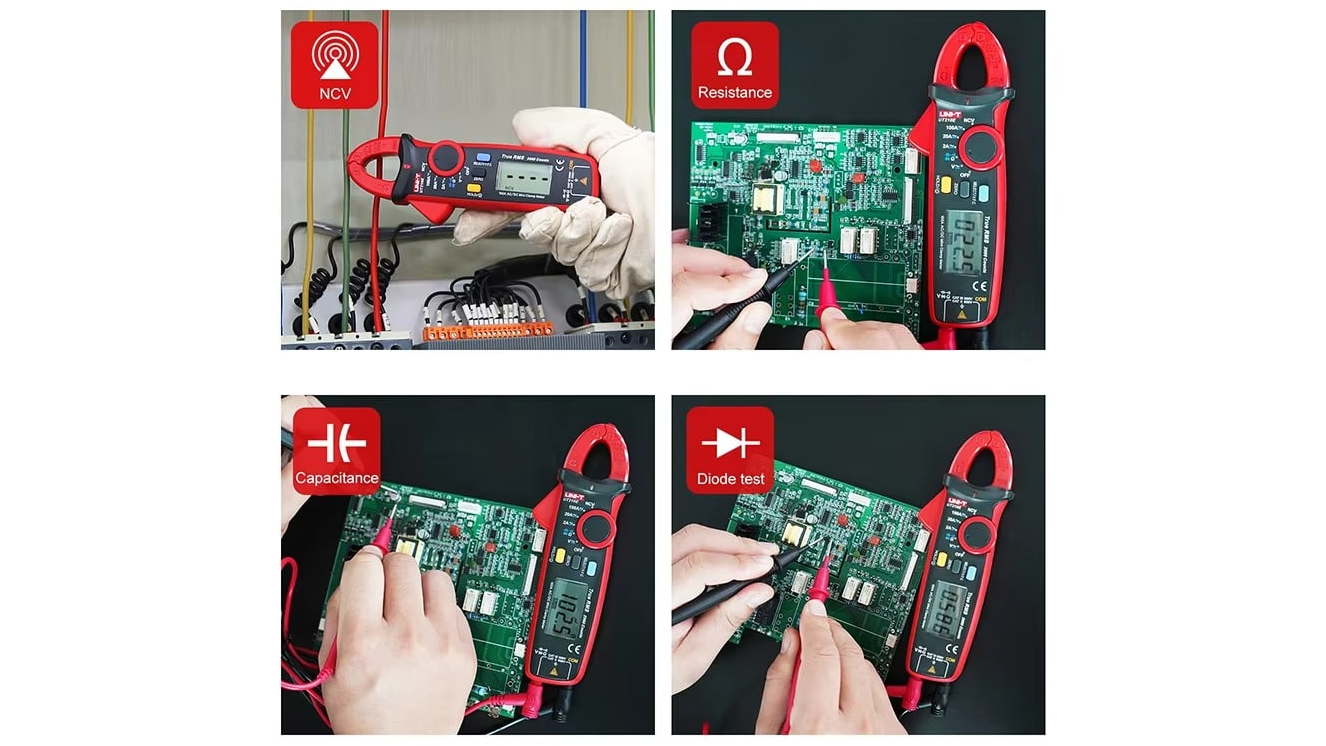

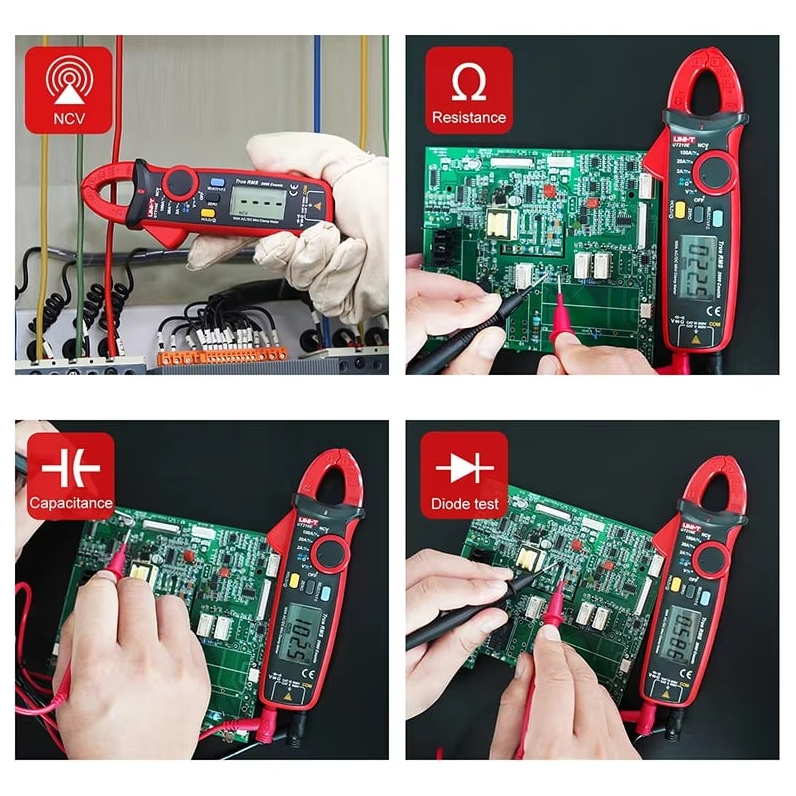

- Electrical Troubleshooting.
- Circuit Testing.
- Power Consumption Measurement.
- Industrial Applications.
- Automotive Diagnostics.
Package Contents:
- 1x UNI-T UT210E Current Clamp and Multimeter
- 2x Test Leads
- 1x User Manual
- 1x Carrying Case
