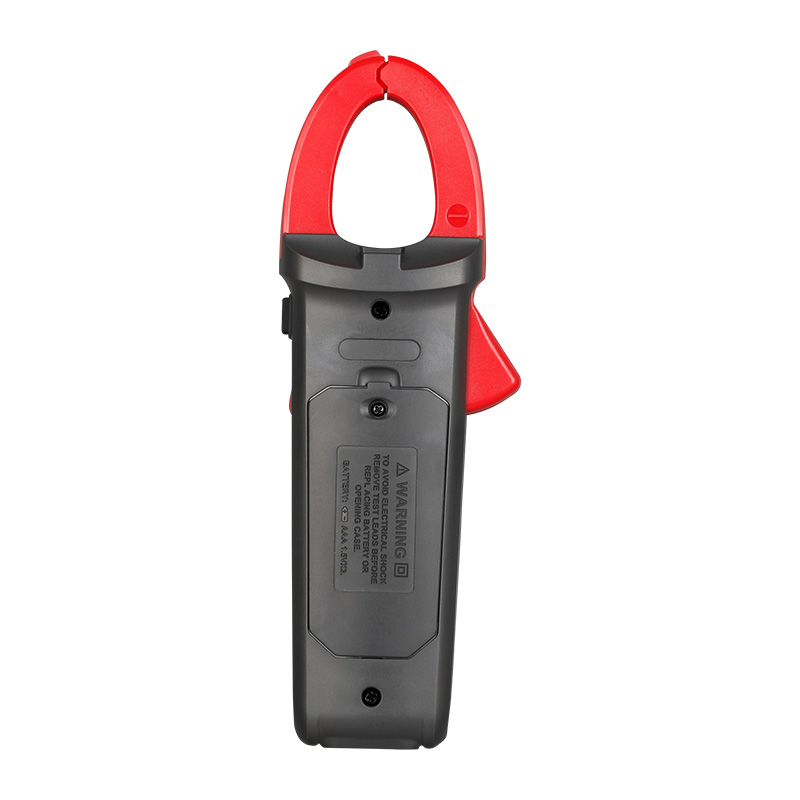

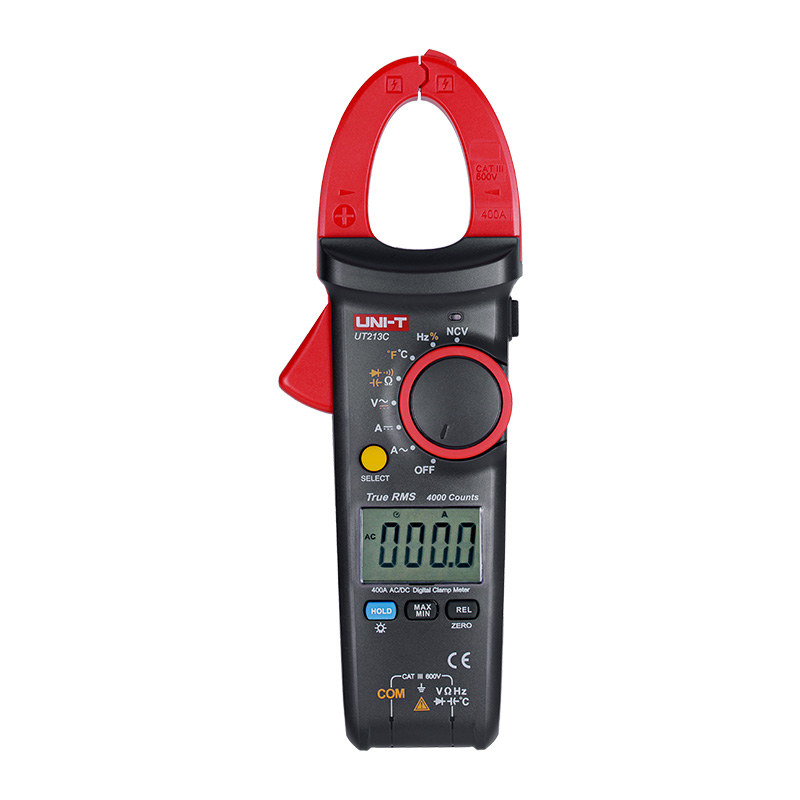

UNI-T UT213C 400A Digital Clamp Meters
The UNI-T UT213C 400A Digital Clamp Meter is a versatile and high-performance tool designed for professional electricians and HVAC/R technicians. It is capable of measuring AC/DC current up to 400A, AC/DC voltage up to 600V, resistance, capacitance, frequency, and temperature, making it a comprehensive tool for various electrical applications. The meter’s built-in flashlight is useful when working in dimly lit environments.
Featuring a compact design and a large, clear LCD display, the UT213C ensures ease of use in both bright and low-light conditions. With its auto-ranging capability, it can automatically select the most suitable range for the measurement being taken. The device also offers multiple functions such as True RMS, data hold, and relative mode, which make it suitable for troubleshooting and testing different electrical systems.
The UNI-T UT213C is built to meet CAT III 600V safety standards and comes with input protection to ensure durability and safety during operation. The meter’s high accuracy, reliable measurements, and safety features make it ideal for professional applications, offering users peace of mind when conducting electrical tests.
Features:
- True RMS Measurement: Ensures accurate readings for both sinusoidal and non-sinusoidal waveforms.

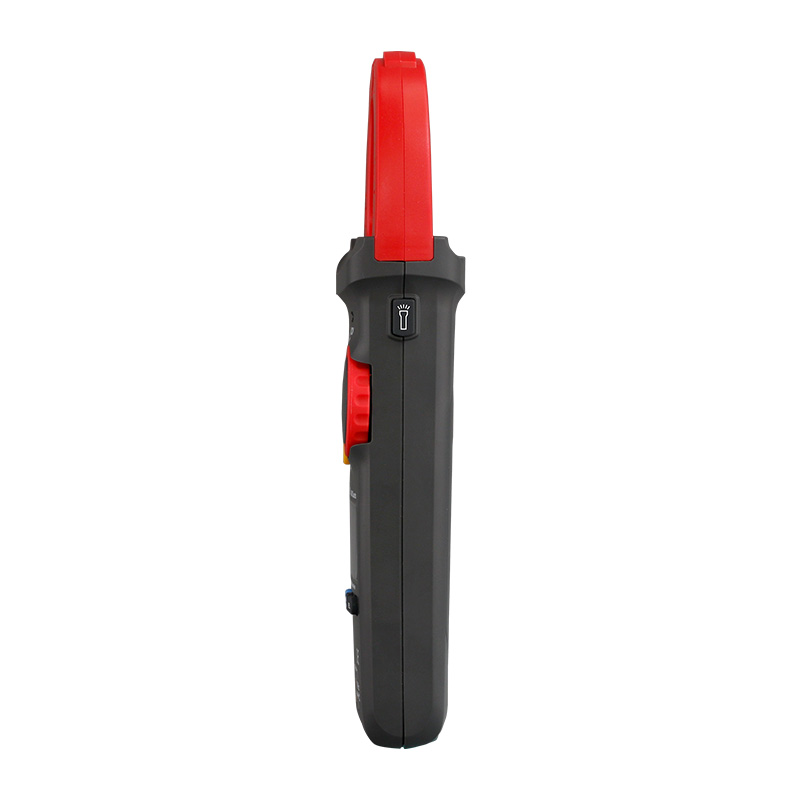

- Built-in Flashlight: Useful for working in low-light environments.
- Auto Range Function: Automatically adjusts the range for ease of use.
- Data Hold & Relative Mode: Holds the measured data for viewing and compares relative measurements.
- Large LCD Display: Provides clear readings.
- Wide Measurement Range: Measures up to 400A AC/DC current, 600V AC/DC voltage, and more.

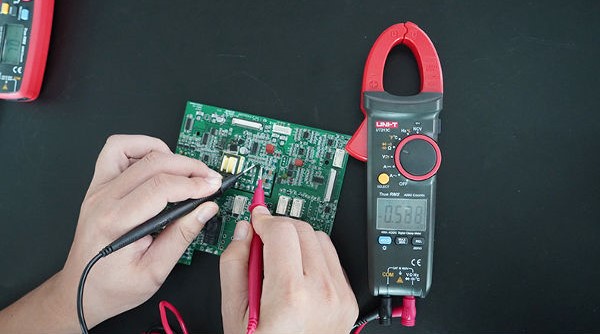

- Multiple Functions: Includes diode, continuity buzzer, NCV, and temperature measurement.
- Safety Features: Meets CAT III 600V safety standards.
Specifications:
| Specification | Details |
|---|---|
| AC/DC Current: | 400A |
| AC/DC Voltage: | 600V |
| Resistance: | 40MΩ |
| Capacitance: | 100μF |
| Frequency: | 10Hz-1MHz |
| Temperature: | -40°C to 1000°C |
| Display Count: | 4000 |
| Jaw Opening: | 30mm |
| True RMS: | Yes |
| Auto Range: | Yes |
| Backlight LCD: | Yes |
| Battery Type: | 1.5V battery (x3) |
| Product Weight: | 231.7g |
| Safety Standard: | CAT III 600V |
Applications:

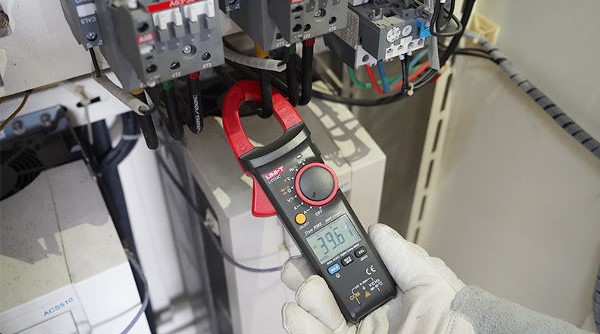

- Electrical System Troubleshooting.
- HVAC/R Technician Work.
- Voltage & Current Measurement.
- Capacitance and Resistance Testing.
- Temperature Measurement.
Package Contents:
- 1x UNI-T UT213C 400A Digital Clamp Meter
- 1x Set of Test Leads
- 1x Point Contact Temperature Probe (for UT213B/UT213C)
- 1x Carrying Bag
- 1x User Manual
- 3x Batteries 1.5V
