UNI-T UT230B-EU Power Socket
UT230B-EU power socket can be used to monitor operation status (voltage, current, time, power consumption and energy cost) of electrical appliances. UT230B-EU is suitable for indoor, in locations such as home, office, schools, and other residential and commercial settings.
Features:
- Unit price of electricity: 0~99.99 ($/kWh)
- Accumulative time: 0 minute~9999 days
- Accumulative charge: 0~9999$
- CO2 display: 0~9999kg
- Power consumption: <0.4W
Specifications:
| Specifications | Range | UT230B-EU |
| Voltage | 100V~260V | ±1% |
| Current | 0A~6A | |
| 0A~13A | ||
| 0A~16A | ±1% | |
| Frequency | 45Hz~65Hz | √ |
| Power | 1~3680W | ±1% |
| 0.5~1380W | ||
| 1~2990W | ||
| Power factor | 0~1 | ±2% |
| Energy consumption | 0~9999kWh | ±1% |
| Features | ||
| Unit price of electricity | 0~99.99 ($/kWh) | √ |
| Accumulative time | 0 minute~9999 days | √ |
| Accumulative charge | 0~9999$ | √ |
| CO2 display | 0~9999kg | √ |
| Power consumption | <0.4W | √ |
| Overload indication | >16A | |
| General Characteristics | ||
| Power | 3V button battery | |
| Display | 48mm x 30.5mm | |
| Product color | White | |
| Product net weight | 155g | |
| Product size | 130mm x 65mm x 37mm | |
Applications:
- Monitoring appliance power consumption.
- Tracking voltage & current usage.
- Calculating energy cost.
- Long-term energy logging.
- CO₂ emission estimation.
- Indoor energy management (homes, offices, schools).
Package Contents:
- 1x UT230B-EU power socket unit
- 1x 3V button battery (CR2032 or similar)
- 1x English user manual / instruction sheet

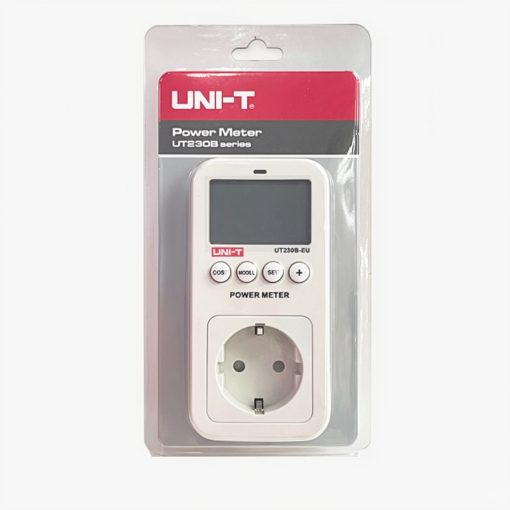

- 1x Standard individual packing (blister) (for retail)
