UNI-T UT255E Wireless High Low Voltage Hook Ammeter
The UNI-T UT255E is a compact, all-in-one wireless hook ammeter designed to make live-line current and leakage measurements both safe and convenient. At its heart lies a hook-type detector incorporating a built-in double-layer flexible coil, which is remarkably lightweight yet delivers high precision and excellent linearity when clamped around conductors. This detector communicates wirelessly with a handheld receiver over a robust 433 MHz link, allowing operators to maintain a safe distance from high-voltage lines while still obtaining real-time readings.

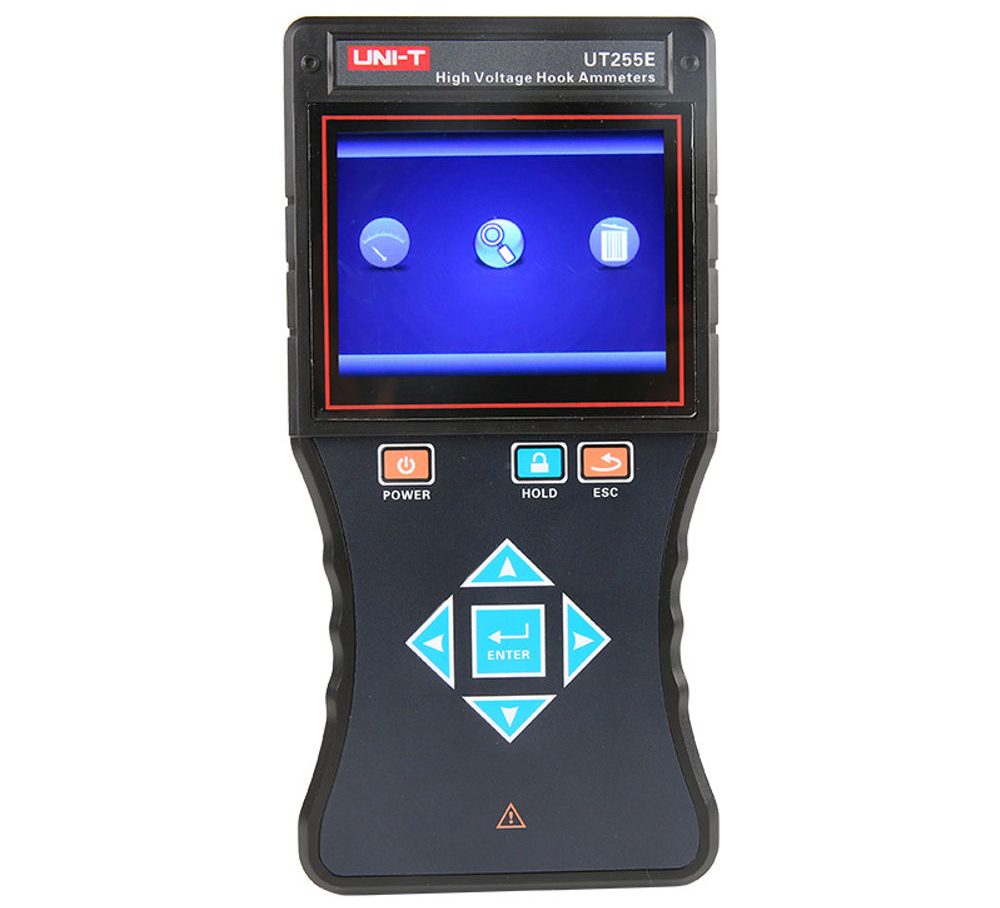

A telescopic insulating rod connects directly to the hook detector, extending to approximately five meters for elevated or hard-to-reach busbars and conductors; when retracted, it measures around one meter, making transport and setup straightforward. The receiver’s large, 3.5-inch true-color LCD presents measurements clearly, with adjustable backlight for varying light conditions, while a rapid sampling rate ensures that transient currents and leakage fluctuations are faithfully captured. Powered by rechargeable lithium batteries via USB, the system delivers around ten hours of continuous operation, minimizing interruptions during extended field work.
Together, these elements form a purpose-built instrument that streamlines high- and low-voltage diagnostics: users simply hang the hooked coil around the live conductor and, from a safe distance, monitor current, leakage, and frequency without interrupting service or compromising accuracy.
Features:
- 433 MHz wireless transmission for safe, cable-free data link between detector and receiver.
- 3.5″ true-color LCD with fast sampling and built-in data storage.
- Frequency measurement capability alongside current readings.
- AC current measurement up to 20 kA.
- Large-diameter hook (Φ168 mm) suited for thick cables and busbars.
- Up to 10 hours continuous operation on internal rechargeable lithium battery.
- Fast sampling rate (2 times/sec) for capturing transient events.
- Overrange indication (“OL A”) and dynamic no-signal display (“—-”).
- Anti-drip structural design (Type II) to resist moisture ingress.
- No 433 MHz co-channel interference, ensuring stable readings.
Specifications:
| Category | Specification |
|---|---|
| Power: | Lithium battery (USB charging) 10 hours continuous operation |
| Weight: | Hook detector: 496 g Receiver: 395 g Insulating rod: 1.45 kg Total: 11.5 kg |
| Insulation Strength: | Insulating rod: AC 110 kV rms Detector & Receiver: 2000 V rms |
| Position Error: | Area A: None Area B: +0.2% Area C: +2% |
| Data Storage: | Up to 9,999 measurement sets |
| Display: | 3.5″ true-color LCD, backlight adjustable |
| Dimensions: | Hook detector: 310×270×52 mm Receiver: 250×100×40 mm |
| AC Current Measurement: | 0–99.9 A: ±2% ±5dgt 100–6000 A: ±3% ±5dgt 6–20 kA: ±4% ±5dgt Resolution: 10 mA |
| Frequency Measurement: | 45–75 Hz, 0.1 Hz resolution Accuracy ±1 Hz (auto 50/60 Hz) |
| Operating Environment: | Temp: −10 °C to 40 °C; Humidity: < 80% RH |
| Storage Environment: | Temp: −10 °C to 60 °C; Humidity: < 70% RH |
| Testing Method: | Hook-type CT clamped onto conductor |
| Transmission Mode: | 433 MHz wireless |
| Phase Detection Distance: | 150 m (line-of-sight) |
Applications:
- High/low voltage leakage current measurement.
- Current and frequency measurement.
- Grounding current test of transformer iron cores.
- Transformer load inspection.
- Leakage current testing of multi-core cables.
- Measurement on bare conductors (<35 kV).
- Measurement on sheath-insulated cables (<110 kV).
Package Include:
- 1x Hook Detector
- 1x Wireless Receiver
- 1x Telescopic Insulating Rod (retracted ~1 m, extended ~5 m)
- 2x Rechargeable Lithium Battery (installed in detector and receiver)
- 1x USB Charging Cable
- 1x Carrying Case
- 1x User Manual & Calibration Certificate
