UNI-T UT25A AC Circuit Breaker Finder

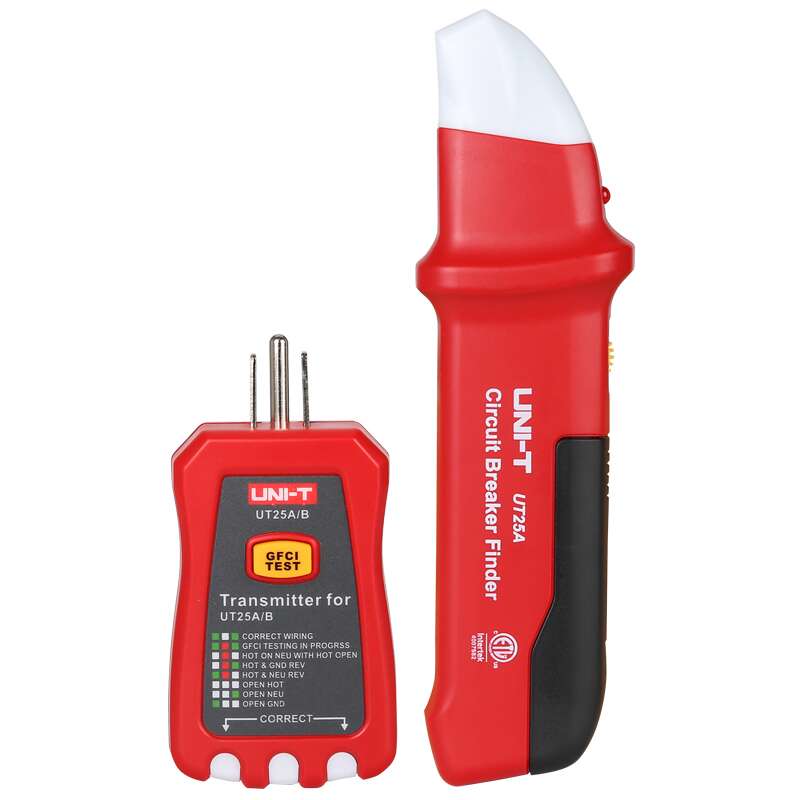

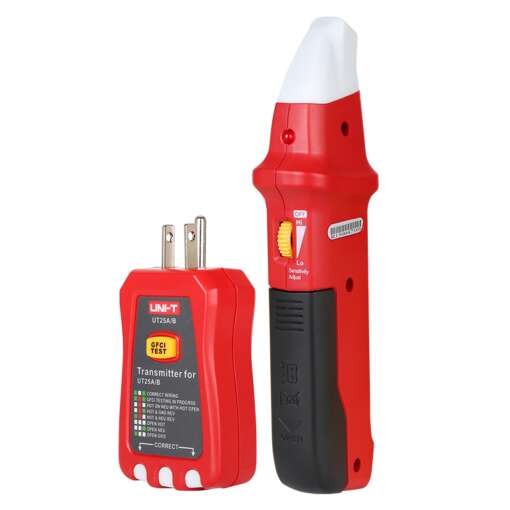

The UNI‑T UT25A is an AC circuit breaker finder and GFCI socket tester designed for rapid and reliable identification of circuit breakers in live electrical circuits. The system comprises a plug‑in transmitter and a handheld receiver: the transmitter injects a tracking signal into the circuit, while the receiver emits audible beeps and flashes LEDs when the signal is detected. Sensitivity is adjustable via a combined power/sensitivity knob on the receiver, allowing precise pinpointing of the target breaker by reducing signal range once proximity is established.
The UT25A’s receiver also features line‑tracking LEDs to confirm continuity, while the transmitter’s GFCI socket test function uses three LEDs to display correct wiring or specific fault conditions (e.g., open ground, reversed hot/neutral). Housed in compact, lightweight enclosures, both units are powered by a single 9 V battery (type 1604/6F22) and conform to UL 61010‑1 and CSA C22.2 No. 61010‑1 safety standards.
Operating on standard North American voltages (90 – 120 V, 50 – 60 Hz), the UT25A is suitable for electricians and maintenance personnel in residential and commercial settings, providing a fast, non‑invasive, and user‑friendly method to trace breakers and verify outlet wiring without circuit shutdown
Features:
- Quick and ac curate detection of circuit breaker location
- GFCI socket test
- Sensitivity control suitable for different signal strength
- Audio and visual indication
- NCV test
- Receiver and transmitter 2-in-1 package
Specifications:
| Specifications | Range | UT25A |
| Operating Voltage | 90~120VAC | √ |
| Working Frequency | 47~63Hz | √ |
| GFCI Test | About 6mA | √ |
| Contact Indicator | Open Ground | √ |
| Open Neutral | √ | |
| Open Hot | √ | |
| Hot/NEU Reverse | √ | |
| Hot/GND Reverse | √ | |
| GFCI Testing In Progrss | √ | |
| Hot On NEU With Hot Open | √ | |
| Correct | √ | |
| Features | ||
| Adjustable Sensitivity | √ | |
| Beeper Indicattion | √ | |
| Flashing LED light Indication | √ | |
| NCV Test | ||
| Low Battery Indication | √ | |
| General Characteristics | ||
| Power | 9V Battery(6F22) | |
| Product Color | Red and Grey | |
| Product Net Weight | Transmitter-110g Receiver-110g |
|
| Product Size | Transmitter-103mm×56mm×30mm Receiver-192mm×54mm×28mm |
|
Applications:
- Residential Circuit Tracing.
- Commercial Electrical Maintenance.
- GFCI Outlet Verification.
- Panel Wiring Inspection.
Package Contents:
- 1x Receiver unit
- 1x Transmitter unit
- 1x Test leads (for transmitter)
- 2x 9 V battery (for receiver and transmitter)
- 1x User manual
