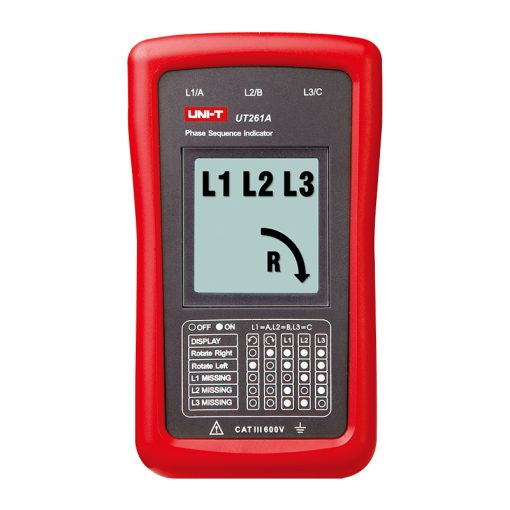

UNI-T UT261A Phase Sequence and Motor Rotation Indicators
The UNI-T UT261A Phase Sequence and Motor Rotation Indicator is a specialized device designed to measure the phase sequence of three-phase power systems. It offers a quick and easy solution for identifying the direction of motor rotation and detecting missing phases. Ideal for electrical engineers, technicians, and maintenance personnel, the UT261A is a reliable tool for ensuring the proper functioning of industrial motors and machinery.
The UT261A features a compact and lightweight design, making it easy to handle and transport. With a durable construction that can withstand impacts from a height of up to 2 meters, this indicator is built for long-lasting performance. It operates within a wide AC voltage range of 40V to 700V and can function effectively in a frequency range of 15Hz to 400Hz, making it suitable for various industrial applications. The device is equipped with both an LCD and LED display for clear and easy-to-read phase indication.
With its ability to detect phase sequence, missing phases, and motor rotation direction, the UT261A is an essential tool for troubleshooting and maintenance tasks. It operates efficiently in diverse environments, from factory settings to large industrial plants. The indicator’s robust design ensures reliability, even in tough working conditions, making it an indispensable tool for electrical maintenance and safety checks.
Features:
- Detects phase sequence, missing phase, and motor rotation direction.
- Operates in an AC voltage range of 40V–700V.
- Supports a frequency range of 15Hz–400Hz.
- LCD and LED displays for clear phase indication.
- CAT III 600V safety rating for enhanced protection.
- Durable construction withstands impacts up to 2 meters.
- Lightweight and portable design for easy use.
- Includes protective tubing on test leads for added safety.
Specifications:
| Specification | Details |
|---|---|
| AC Voltage Range: | 40V–700V (UT261A) |
| Frequency Range: | 15Hz–400Hz |
| Working Current: | <1mA (UT261A) |
| Phase Sequence Indication: | LCD and LED |
| Missing Phase Indication: | LED |
| Motor Rotation Indication: | LED |
| Safety Category: | CAT III 600V |
| Dimensions: | 123 x 71 x 29 mm |
| Weight: | 160g |
| Power: | No battery required (UT261A) |
| Certifications: | CE, UKCA, cETLus |
Applications:
- Three-phase Power System Testing.
- Motor Rotation Testing.
- Industrial Motor Maintenance.
- Electrical Troubleshooting.
- Phase Sequence Detection.
- Electrical Safety Inspections.
- Phase and Voltage Monitoring.
Package Contents:
- 1x UNI-T UT261A Phase Sequence and Motor Rotation Indicator
- 3x Test Leads with Protective Tubing
- 1x User Manual
