UNI-T UT278A+ Clamp Earth Ground Testers
UNI-T UT278A+ is a clamp meter for fast, non-intrusive earth ground resistance and leakage current testing, ideal for live systems and field diagnostics.
15,500.00 EGP
Buy NowUNI-T UT278A+ Clamp Earth Ground Testers

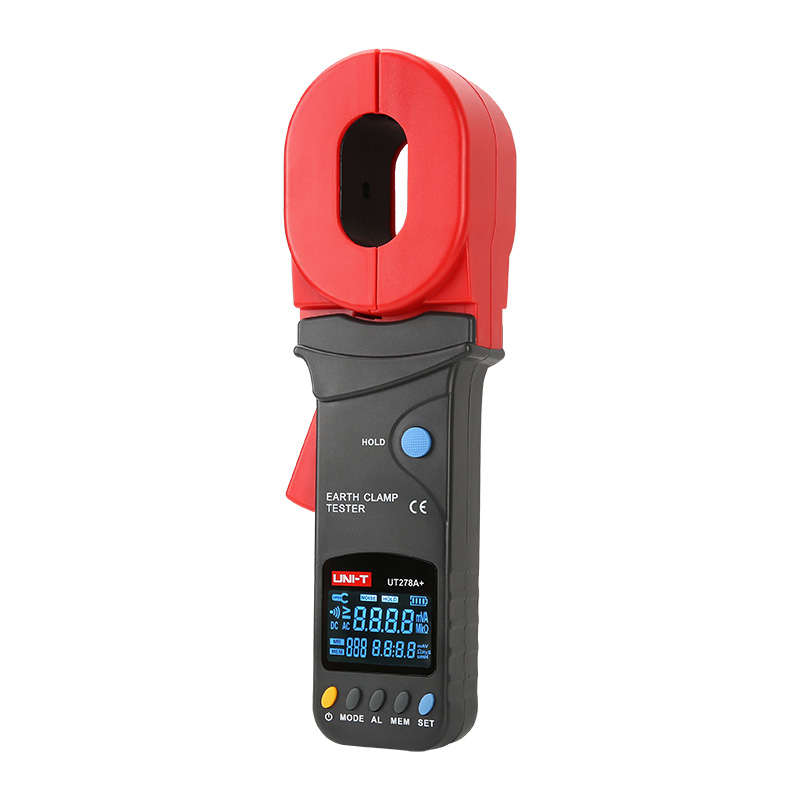

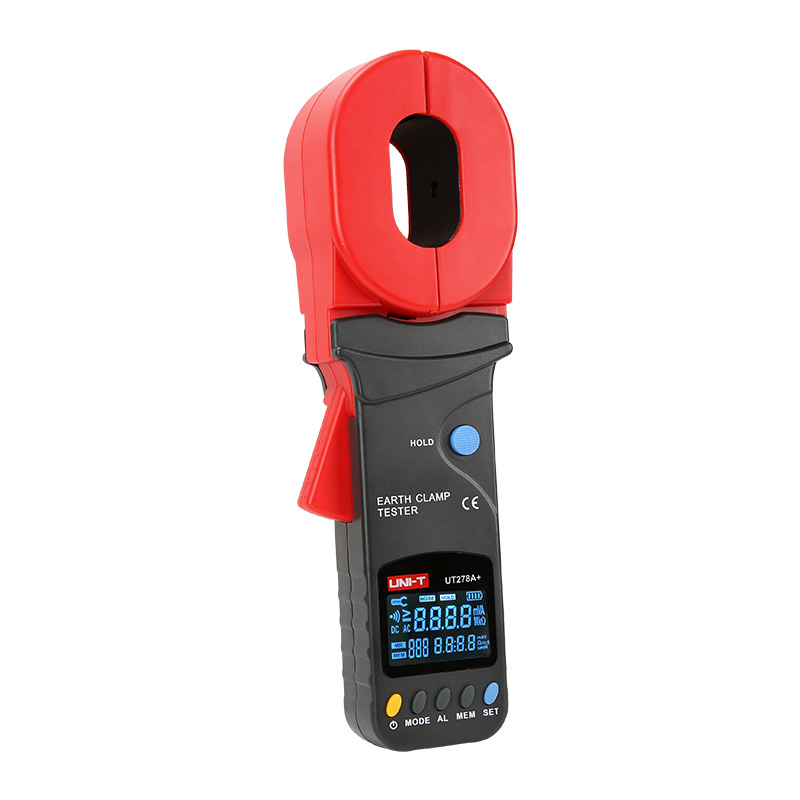

The UNI-T UT278A+ is a handheld clamp meter designed to streamline earth ground testing by allowing resistance measurements without disconnecting grounding conductors or deploying auxiliary electrodes. Its slender, slightly contoured body houses a robust jaw assembly that opens to encircle conductors up to 32 mm in diameter. Once the jaw is securely clamped around a grounding conductor, the unit injects a small test current and senses the resulting voltage drop to compute ground resistance presenting the result on a clear, four‐digit LCD display.

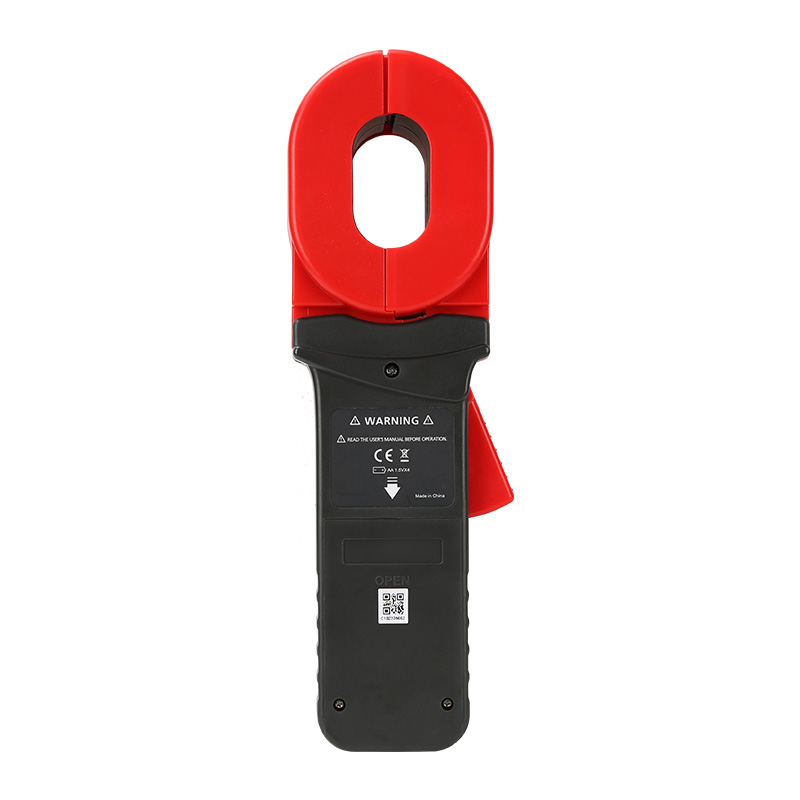

The case is molded from impact‐resistant polymer and incorporates double‐insulation to safeguard the user and minimize interference from adjacent electrical sources. A single rotary switch on the front panel enables quick mode selection, while large, tactile buttons allow one‐handed operation, even when wearing gloves. Internally, the UT278A+ employs auto‐ranging circuitry to select the appropriate measurement scale and stabilize readings rapidly. Audible and visual alarms alert the technician when measured values exceed preset thresholds. At approximately 285 mm in length and weighing just over 1 kg (including batteries), the meter balances portability with ruggedness.
Overall, the UT278A+ delivers fast, reliable ground resistance data in seconds, making it a practical tool for field technicians who need accurate diagnostics without interrupting energized systems.
Features:
- Auto range.
- Data hold.
- Data recall.
- LCD backlight.
- Resistance limit alarm.
- Low battery indication.
- Auto calibration.
Specifications:
| Category | Specification (UT278A+) |
|---|---|
| Earth Ground Resistance (Ω) | Ranges & Accuracy: • 0.01 – 0.099 Ω: ±(1 % + 0.01) • 0.1 – 0.99 Ω: ±(1 % + 0.01) • 1 – 49.9 Ω: ±(1 % + 0.01) • 50 – 99.5 Ω: ±(1 % + 0.01) • 100 – 199 Ω: ±(1 % + 0.01) • 200 – 395 Ω: ±(1 % + 0.1) • 400 – 590 Ω: ±(1.5 % + 0.5) • 600 – 800 Ω: ±(1.5 % + 0.5) • 600 – 1000 Ω: ±(2 % + 1) • 800 – 1200 Ω: ±(2 % + 1) |
| Leakage Current (A) | Ranges & Accuracy: • 0 mA – 9 mA: ±(2.5 % + 1 mA) • 10 mA – 99 mA: ±(2.5 % + 5 mA) • 100 mA – 299 mA: ±(2.5 % + 10 mA) • 0 mA – 299 mA (combined): ±(2.5 % + 0.1 A) • 0.3 A – 2.99 A: ±(2.5 % + 2 mA) • 3 A – 9.9 A: ±(2.5 % + 100 mA) • 10 A – 20 A: ±(2.5 % + 300 mA) • 3 A – 30 A (combined): ±(2.5 % + 100 mA) |
| Display | 4-digit, 10 000-count LCD (Ω + A display) |
| Jaw Opening | 32 mm maximum conductor diameter |
| Safety Rating | CAT III 300 V |
| Certifications | CE, UKCA |
| Data Storage & Alerts | • Data storage for up to 300 readings • Visual/audible alarm when preset threshold exceeded • Jamming signal recognition • Over-range (“OL”) indication |
| Auto Functions | • Auto range • Auto power off • Auto calibration • Low-battery indication |
| Power Supply | Four × 1.5 V LR6 (AA) batteries |
| Physical | Dimensions: 285 × 85 × 56 mm Net weight: 1.18 kg (incl. batteries) |
Notes on Key Entries:
- Earth Ground Resistance: Ten distinct measurement ranges (from 0.01 Ω up to 1200 Ω), each with specified accuracy.
- Leakage Current: Seven overlapping ranges covering from 0 mA up to 30 A with individual accuracy specifications.
- Auto Functions & Alerts: Built-in auto-ranging, self-calibration, power-off, and threshold alarms ensure both user convenience and reliable readings in noisy electrical environments.
- Certifications & Safety: Double-insulated housing rated CAT III 300 V, with CE and UKCA compliance for use in professional settings.
Applications:
- Electrical Power Systems.
- Lightning Protection Systems.
- Telecommunication Equipment.
- Industrial Plants.
- Building and Facility Maintenance.
- Transport and Railway Systems.
- Field Service and Troubleshooting.
Package Include:
- 4x 1.5 V LR6 (AA) batteries
- 1x Test ring (47 × 28.5 mm)
- 1x English instruction manual
UNI-T UT278A+ Documents:
