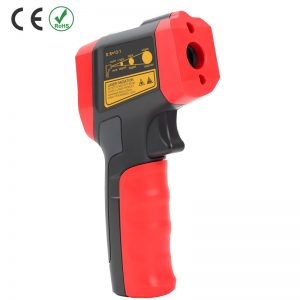

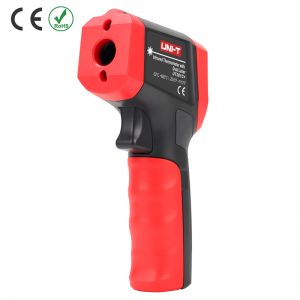

UNI-T UT301C+ Infrared Thermometer
The new UT301+ series is a durable and easy-to-use infrared thermometer with high accuracy/energy (95%)/repeatability. It has adjustable high and low temperature visual/audible alarms, responding faster than 250ms, which can help you quickly find anomalies.
You can preset and save 5 sets of emissivity values and quickly switch the emissivity according to different surfaces to get more accurate results. With the lock measurement, MAX/MIN/AVG/DIFF hold, and a tripod mount, UT301C+ is ideal for processes that require temperature monitoring.
UT301C+ can be applied to power distribution/transportation equipment inspection, HVAC/equipment maintenance, vehicle troubleshooting, and more fields.
Features:
- 12:1 D:S ratio
- Adjustable emissivity 0.1~1.0
- ±1.5℃ temperature measurement accuracy
- User defined visual and audio alarm
- High-contrast EBTN color display
- MAX/MIN/AVG/DIFF/Hold modes
- Ring Lasers (UT301C+)
- Temperature recording up to 99 groups (UT301C+)
- Date/time display (UT301C+)
- Time scheduled measurement (UT301C+)
Specifications:
| Specifications | UT301C+ |
| Temperature range: | -32℃~600℃ |
| -25.6℉~1112℉ | |
| Accuracy: | >0℃: ±1.5℃ or ±1.5%; ≤0℃: ±(1.5℃+0.1℃/℃) |
| >32℉: ±3.0℉ or ±1.5%; ≤32℉: ±(3.0℉+0.1℉/℉) | |
| Repeatability: | 0.7℃ or 0.7% (1.5℉ or 0.7%) |
| D:S ratio: | 12:1 (95%) |
| Response time: | ≤250ms (95% of reading) |
| Emissivity: | 0.1~1.0 (adjustable, stores 5 sets of preset values) |
| Spectral response: | 8um~14um |
| Laser power: | < 1mW |
| Features | |
| Auto power off: | √ |
| Low battery indication: | √ |
| LCD display: | Color EBTN |
| High/low-temperature LED alarm: | √ |
| High/low-temperature audible alarm: | √ |
| Data hold: | √ |
| ℃/℉ selection: | √ |
| MAX/MIN/AVG/DIFF mode: | √ |
| Lock measurement: | √ |
| Data storage: | 99 |
| Scheduled measurement: | √ |
| Backlight: | √ |
| Operating temperature: | 0℃~50℃ (32℉~122℉) |
| Storage temperature: | -20℃~60℃ (-4℉~140℉) |
| Operating humidity: | <90% RH (non-condensing) |
| Drop test: | 1m |
| Tripod mounting hole: | √ |
| General Characteristics | |
| Power: | 9V battery |
| Display: | 30mm x 30mm |
| Product color: | Red and grey |
| Product net weight: | 204g |
| Product size: | 160mm x 74mm x 48mm |
Applications:

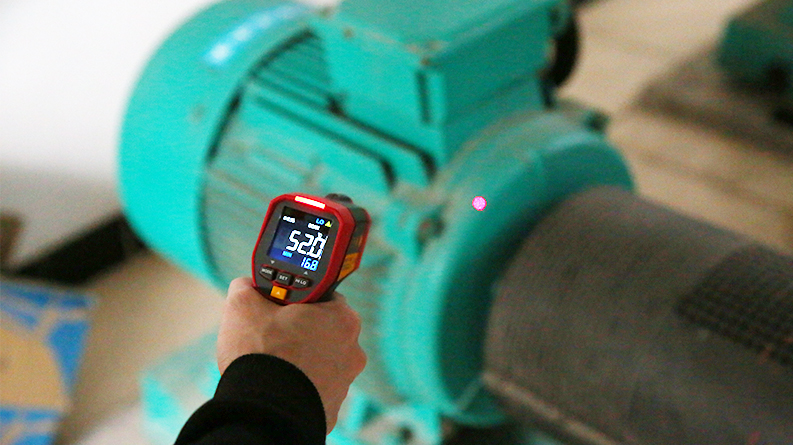

Motor temperature measurement

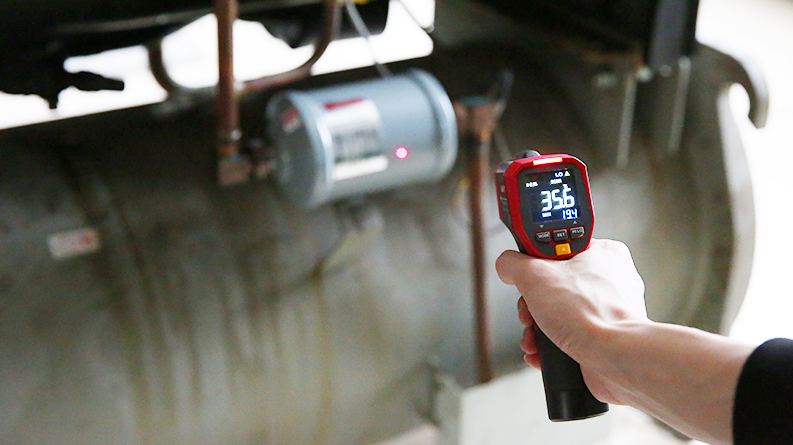

Electric measurement
Package Contents:
- 1x UNI-T UT301C+ thermometer
- 1x Carrying bag
- 1x 9V battery (block)
- 1x Operating instructions / user manual
