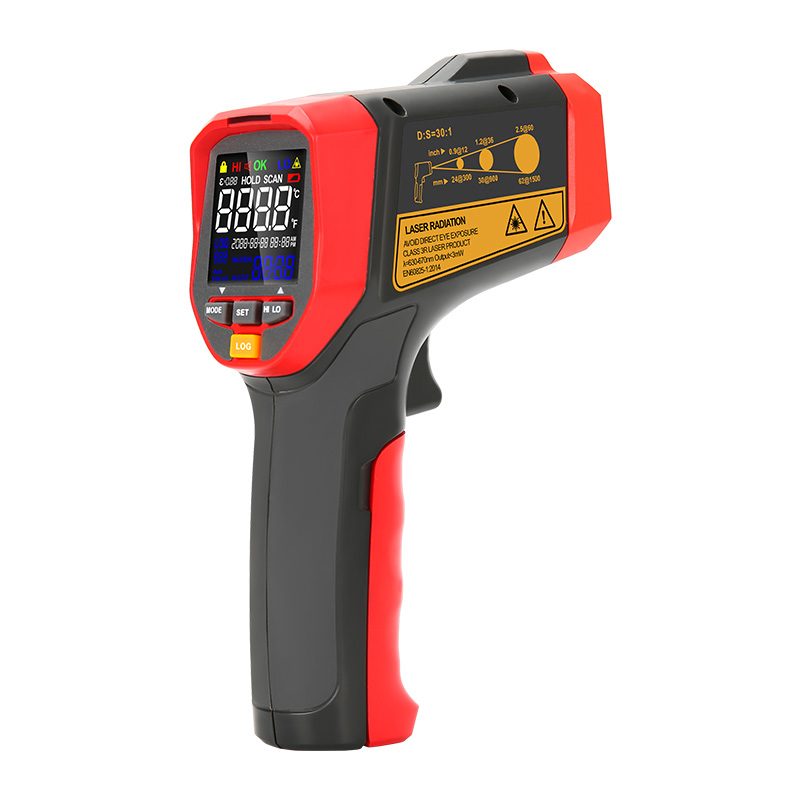

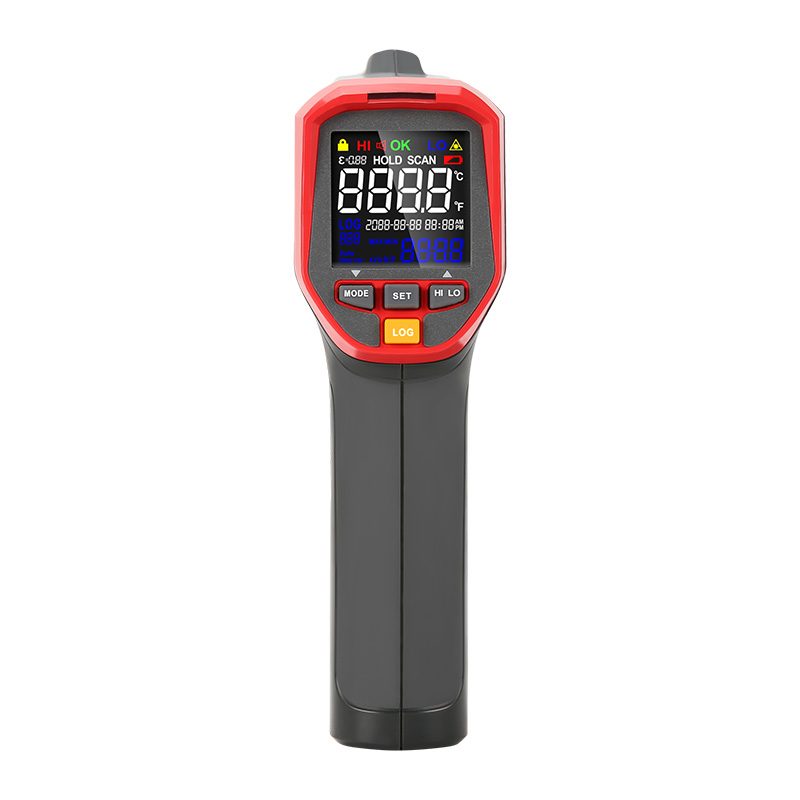

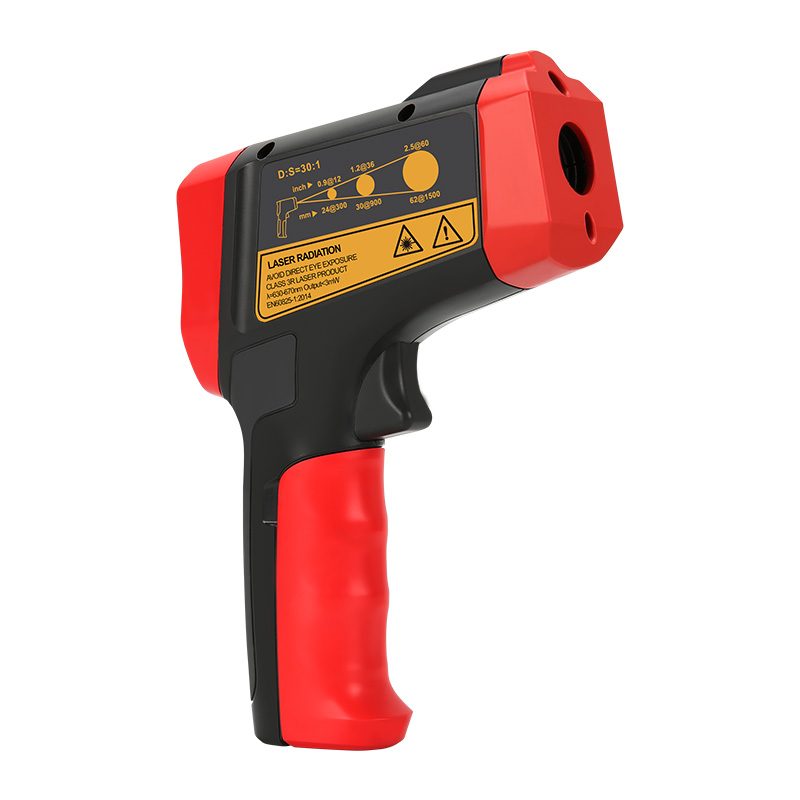

UT303C+ Infrared Thermometer
UT303+ series infrared thermometer can quickly and accurately determine the surface temperature by measuring the infrared energy radiated from the target surface. It is suitable for non-contact surface temperature measurement. The UT303C+ has ring laser, an unique patented display method that covers entire measured area, user will know exactly where the measurement is taking place.
Features:
- ±1.5℃ temperature measurement accuracy.
- User defined visual and audio alarm.
- High contrast EBTN color display.
- MAX/MIN/AVG/DIFF/Hold modes.
- Temperature recording up to 99 groups.
- Date/time display.
- Time scheduled measurement.
Specifications:
| Temperature Range: | -32℃~1300℃ / -25.6℉~2372℉ |
| Accuracy: | ≥0℃: ±1.5℃ or ±1.5%; <0℃: ±(1.5℃+0.1℃/℃) |
| Repeatability: | 0.7℃ or 0.7% (1.5℉ or 0.7%) |
| D:S Ratio: | 30:1 |
| Response time: | 250ms |
| Emissivity: | 0.1~1.0 (adjustable, stores 5 sets of preset values) |
| Spectral Response: | 8um~14um |
| Laser power: | < 1mW |
| Auto power off: | Available |
| Low battery indication: | Available |
| LCD display: | Color EBTN |
| High/low LED alarm: | Available |
| High/low audible alarm: | Available |
| Data hold/Lock measurement: | Available |
| ℃/℉ selection: | Available |
| MAX/MIN/AVG/DIFF mode: | Available |
| Data storage with date and time: | 99 |
| Scheduled measurement: | Available |
| Backlight: | Available |
| Operating temperature: | 0℃~50℃ (32℉~122℉) |
| Storage temperature: | -20℃~60℃ (-4℉~140℉) |
| Operating humidity: | <90%RH (non-condensing) |
| Drop test: | 1 meter |
| Tripod mounting hole: | Available |
| Power: | 9V battery |
| Display: | 35mm x 35mm |
| Product color: | Red and grey |
| Product net weight: | 310g |
| Product size: | 172mm x 113.5mm x 53mm |
| Standard accessories: | Battery, carrying bag |
| Standard individual packing: | Gift box, blister, English manual |
| Standard quantity per carton: | 10pcs |
| Standard carton measurement: | 425mm x 335mm x 365mm |
| Standard carton gross weight: | 6.65kg |
Applications:
- Electrical Panel and Connection Hotspot Detection.
- HVAC System Performance and Ductwork Inspection.
- Automotive Brake, Tire, and Engine Diagnostics.
- Food Safety and Kitchen Equipment Temperature Monitoring.
- Building Inspection for Energy Loss and Insulation Deficiencies.
- Industrial Machinery Bearing and Motor Temperature Monitoring.
- Preventive Maintenance Checks for Overheating Components.
