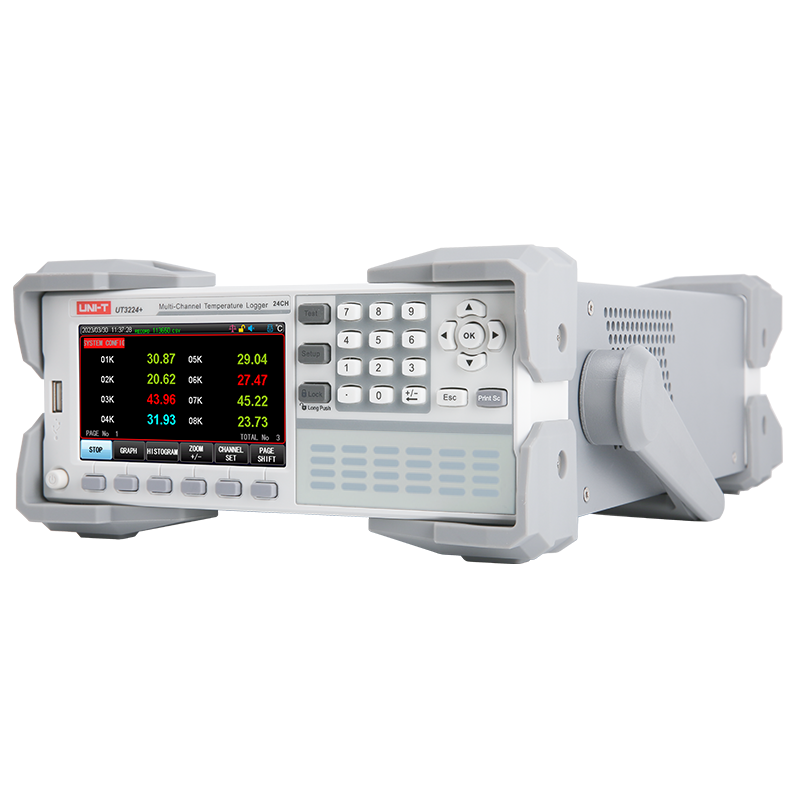

UNI-T UT3224+ Multi-channel Temperature Measuring Device (-200~1800°C; 24CH)
The UT3224+ is a professional 24-channel temperature measuring instrument designed for continuous multi-point monitoring in production and laboratory environments. Its user interface emphasizes clarity and control: measurements are shown as numeric values, realtime curves and histograms so operators can quickly grasp both individual readings and overall trends. The unit accepts a broad range of thermocouple types so it can be adapted to many sensor choices and test conditions.
Engineered for stability and repeatability, the instrument stores logged data to USB for easy archival and transfer, includes on-screen alarms for out-of-range channels, and supports remote data access over standard communication ports. The overall layout and handle design make it straightforward to install or move within a test bench or 2U cabinet, while onboard file-management simplifies saving and restoring measurement setups.
In practice the UT3224+ serves as a central recorder for simultaneous temperature checks across many points, helping technicians and engineers spot anomalies, validate processes, and keep long-term records. It’s targeted at production lines, R&D labs and quality departments that need reliable multi-channel temperature logging with easy data export.
Features:
- 4.3-inch true-color LCD display.
- Supports wide range of thermocouples (J, K, T, E, S, N, B, R).
- Measurement range from –200℃ to 1800℃ (depends on thermocouple type).
- Main parameters displayed in 6 digits with 0.01℃ resolution.
- Two scan rates: fast and slow.
- Automatic detection of open-circuit thermocouples.

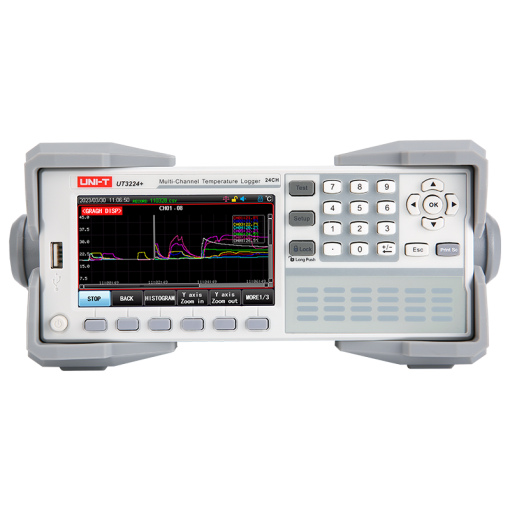

- Multiple display modes: direct numeric reading, histogram and curve chart.
- Cold junction compensation.
- 8 GB USB (included) and USB-HOST interface for data and screenshots.
- File management to save and restore instrument setups.
- Supplied with Type K thermocouple test leads (2 m) for basic measurements.
- Upper/lower alarm per channel and change-of-reading alert.
- RS-232C, LAN, DC24V external power interfaces; supports SCPI and Modbus RTU protocols.
- Suitable for standard 2U cabinet mounting.
Specifications:
| Specification | UT3224+ |
|---|---|
| Model: | UT3224+ (24 channels) |
| Display modes: | Direct numeric, curve chart, histogram |
| Thermocouple types: | J, K, T, E, S, N, B, R |
| Test range: | –200.0 ℃ to 1800.0 ℃ |
| Resolution: | 0.01 ℃ |
| Sampling rates: | Slow (1 s) / Fast (0.5 s) |
| Interfaces: | USB HOST, RS-232C, LAN, DC24V, (RS485 optional) |
| Accuracy (cold junction): | ±0.5 ℃ |
| Power: | AC 100–240 V, 50/60 Hz |
| Environmental (operating): | 10℃–40℃ (operation); storage 0℃–50℃. |
| Size / Weight: | 214 mm × 88.2 mm × 330.3 mm; net weight ~3.4 kg |
| File storage: | FAT (CSV output), USB up to supported size (USB included 8 GB) |
| Isolation between channels: | 350 VDC / 230 VAC |
Applications:
- Lighting appliance production and testing.
- Electric tools manufacturing inspection.
- Household appliance QA and R&D.
- Electric motor testing and monitoring.
- Electric heating appliance control and validation.
- Pharmaceutical temperature monitoring.
- Petroleum and chemical process temperature checks.
- Metallurgy temperature measurement.
- Power industry testing and monitoring.
- Scientific research laboratories and production lines (quality control).
Package Contents:
- 1x Multi-channel Temperature Tester
- 1x Power line (AC mains cable)
- 1x 8 GB USB (preinstalled / included)
- 1x 8-channel temperature test module
- 1x RS-232C communication cable
- 1x User’s Manual
