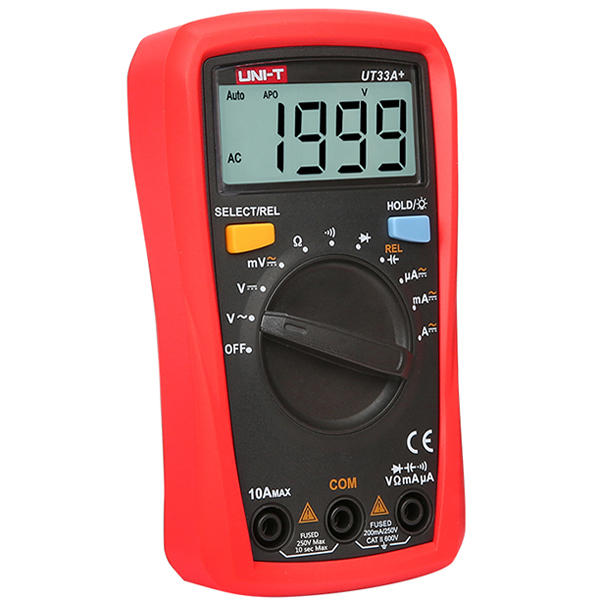

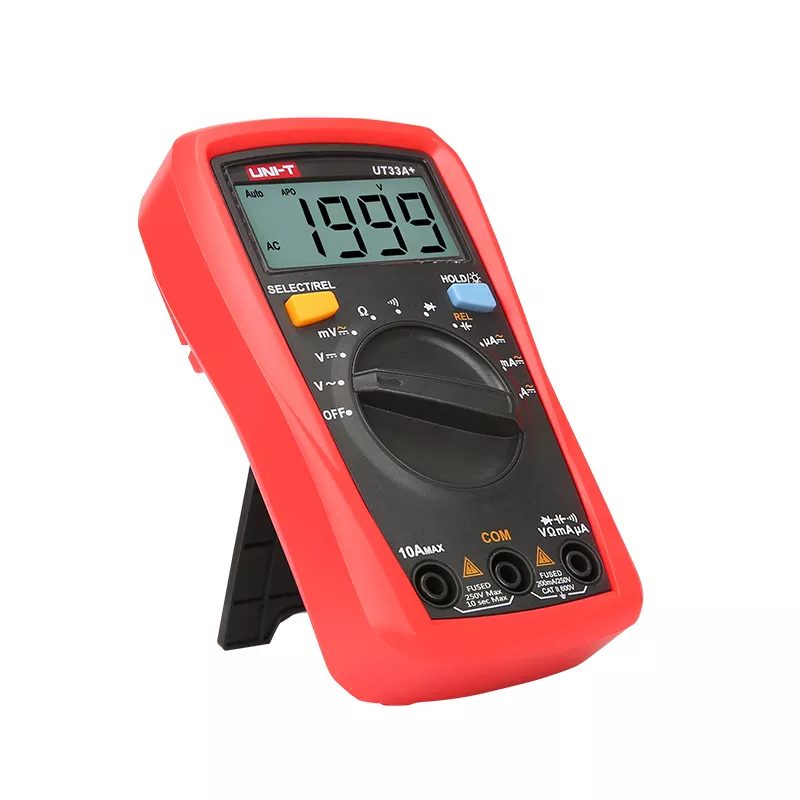

UNI-T UT33A+ Digital Multimeter
The new generation UT33+ series redefines the performance standards for entry-level digital multimeters. Our innovative industrial design ensures that these products can withstand 2 2-meter drop. The new LCD display layout provides a better user experience. This series ensures that users can work safely in a CAT II 600V environment. Special features are the 2mF capacitance test (UT33A+).
Features:
- Clear LCD display
- Comfortable protective cover, with test lead hanging groove
- 2 meters drop test, precision protection
- Loud buzzer sound; Ergonomic design
Specifications:
| Specifications | Range | UT33A+ |
| DC voltage (V) | 200mV/2V/20V/200V/600V | ±(0.5%＋2) |
| AC voltage (V) | 600V | ±(0.7%+3) |
| DC current (A) | 10A | ±(1%+2) |
| AC current (A) | 10A | ±(1.2%+3) |
| Resistance (Ω) | 200Ω/2kΩ/20kΩ/200kΩ /2MΩ/20MΩ/200MΩ |
±(0.8%+2) |
| Capacitance (F) | 2mF | ±(4%+8) |
| Features | ||
| Display count | 2000 | |
| Auto power off/Auto backlight off | √ | |
| Diode test/Continuity buzzer | √ | |
| 2m drop test/ Test probe holder | √ | |
| Range selection | Auto | |
| General Characteristics | ||
| Power | 1.5V battery (R03) x 2 | |
| Display | 66mm x 51mm | |
| Product net weight | 206g (batteries included) | |
| Product Color | Red and Grey | |
| Product size | 134mm x 77mm x 47mm | |
Applications:
UT33A+ DC Voltage Measurement
UT33A+ Resistance Measurement
Package Contents:
- 1x Multimeter UT33A+
- 1x Test leads (pair)
- 2x 1.5 V AAA batteries
- 1x English user manual / instruction guide
- 1x Holster / protective cover
