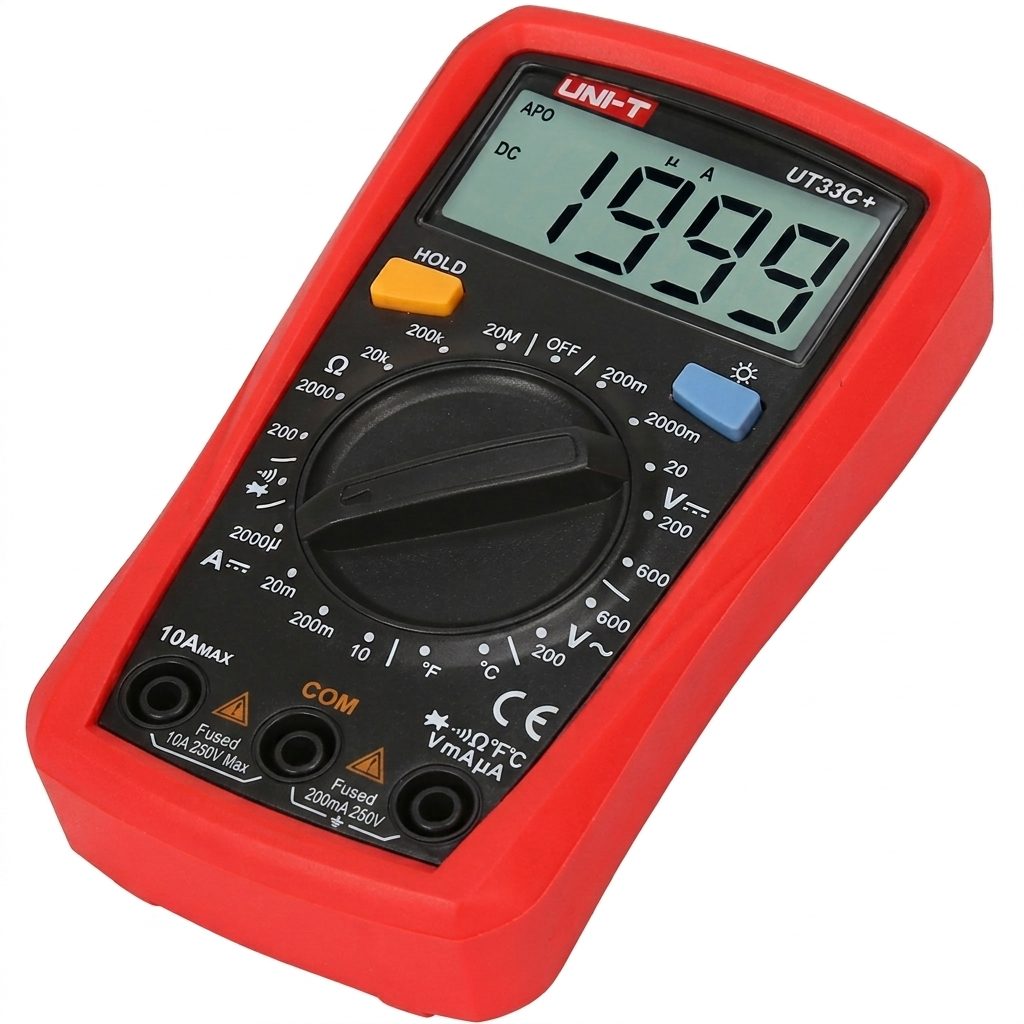

UNI-T UT33C+ Palm Size Digital Multimeter
The new generation UT33+ series redefines the performance standards for entry-level digital multimeters. Our innovative industrial design ensures that these products can withstand 2 2-meter drop. The new LCD display layout provides a better user experience. This series ensures that users can work safely in CAT II 600V environment. temperature measurement function (UT33C+)
Features:

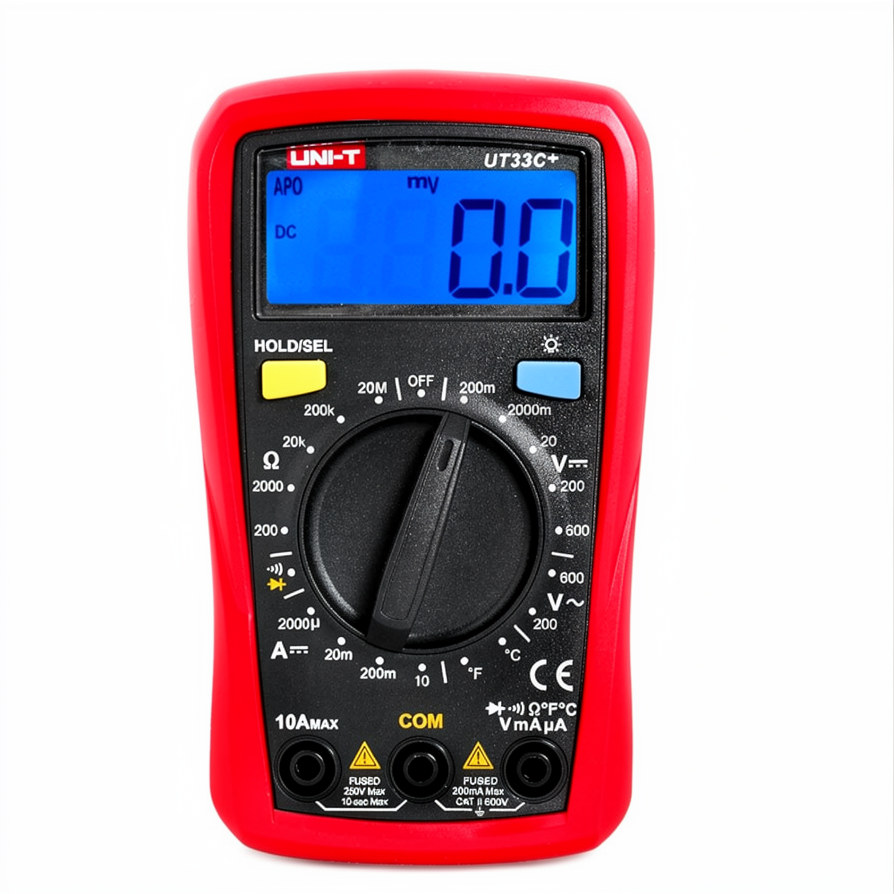

- Clear LCD display

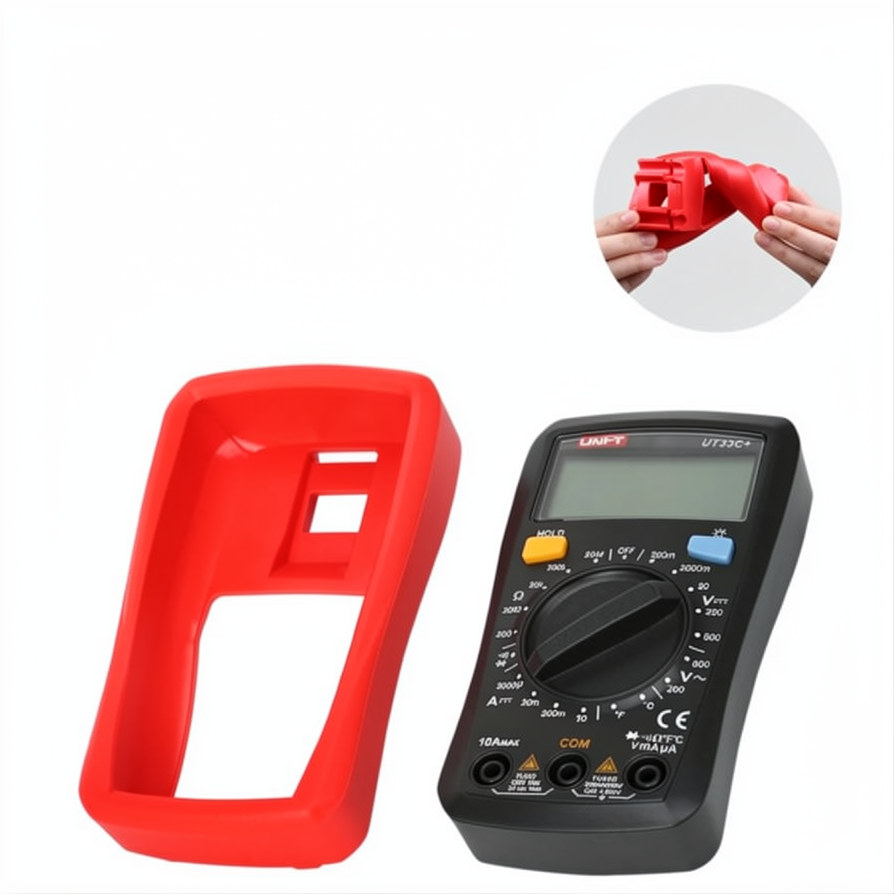

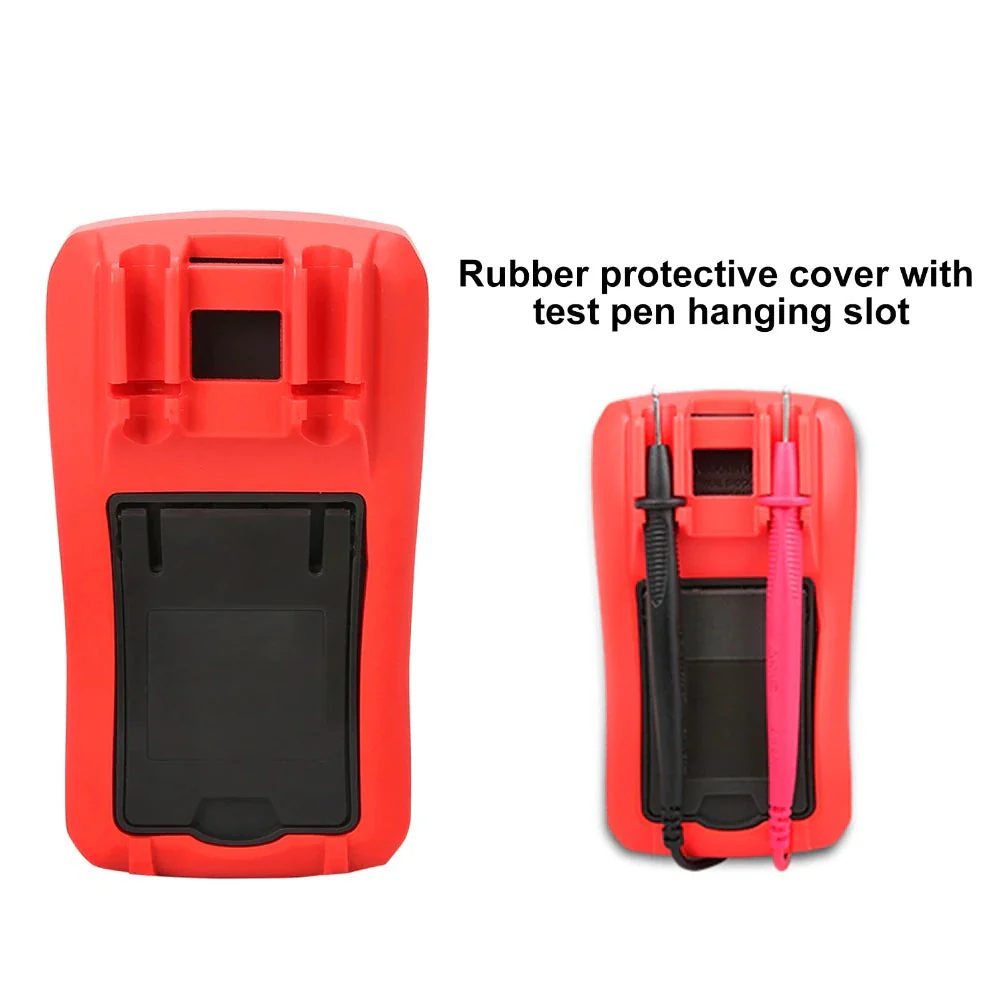

- Comfortable protective cover, with test lead hanging groove
- 2 meters drop test, precision protection
- Loud buzzer sound; Ergonomic design
Specifications:
| Specifications | Range | UT33C+ |
| DC voltage (V) | 200mV/2V/20V/200V/600V | ±(0.5%＋2) |
| AC voltage (V) | 200V/600V | ±(1.2%+3) |
| DC current (A) | 2000μA/20mA/200mA/10A | ±(1%+2) |
| Resistance (Ω) | 200Ω/2kΩ/20kΩ /200kΩ/20MΩ |
±(0.8%+2) |
| Temperature | -40℃~1000℃ | ±(1%+4) |
| -40℉~1832℉ | ±(1.5%+5) | |
| Features | ||
| Display count | 2000 | |
| Auto power off/Auto backlight off | √ | |
| Diode test/Continuity buzzer | √ | |
| 2m drop test/ Test probe holder | √ | |
| Range selection | Manual | |
| General Characteristics | ||
| Power | 1.5V battery (R03) x 2 | |
| Display | 66mm x 51mm | |
| Product net weight | Red and grey | |
| Product Color | 206g (batteries included) | |
| Product size | 134mm x 77mm x 47mm | |
Applications:
- Measurement of DC / AC voltage and current.
- Resistance and continuity testing.
- Temperature measurement (via thermocouple).
- Component / diode testing.
- Circuit diagnostics in electronics and appliances.
Package Contents:
- 1x UT33C+ multimeter
- 1x pair Test leads
- 1x K-type thermocouple / temperature probe
- 2x AAA batteries (1.5 V)
- 1x Holster / protective cover
- 1x User manual / instruction guide
