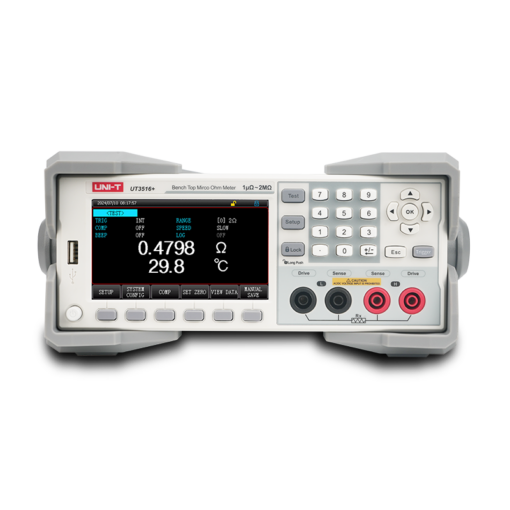

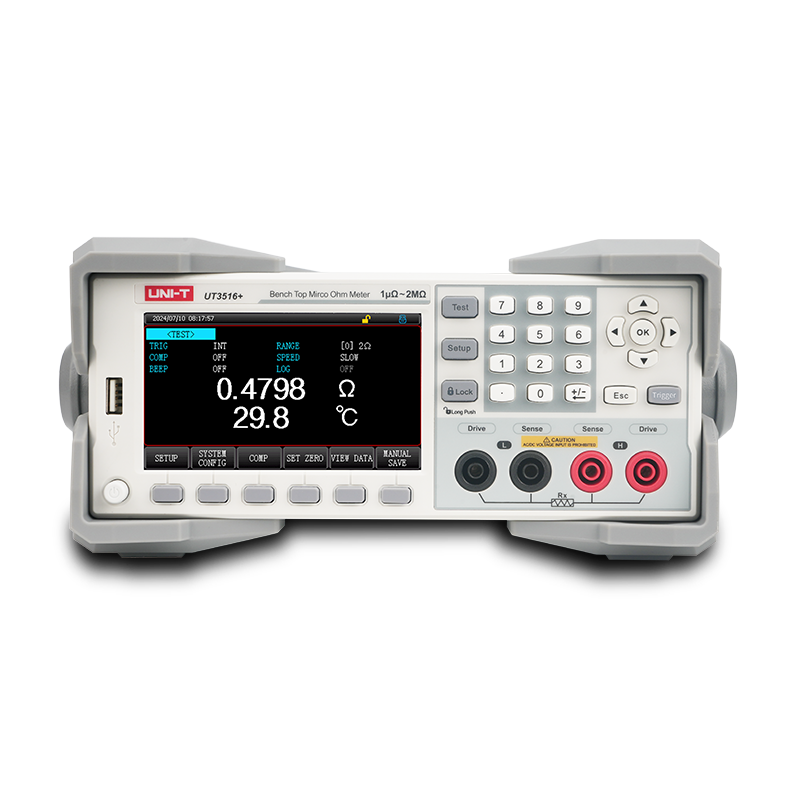

UNI-T UT3516+ Micro Ohm Meter
The UNI-T UT3516+ Micro Ohm Meter is part of the UT3510+ series of benchtop Micro Ohm Meters that includes the UT3513+ and UT3516+ models. 4.3-inch LCD display. With high precision, high resolution and high speed measurement characteristics, with the highest accuracy of 0.05%, the minimum resolution of 1 μΩ. UT3516 + standard RS-232C, RS485, LAN port and HANDLER communication interface, support for SCPI and MODBUS RTU protocols, and can be with the computer, PLC or WINCE device communication, and efficiently complete the remote control and data acquisition functions.
Features:
Multiple test modes
R/R-T/T/LPR/LPR-T four modes can be selected, LPR is a low-voltage test mode, can effectively protect the DUT.
6 bins comparator
The built-in comparator gears allow the setting of 6 comparison results. The component under test can be divided into 7 bins (BIN1, BIN2, BIN3, BIN4, BIN5, BIN6 and NG).
Logging and statistics
Logging: Up to 10000 groups of data can be recorded.
Statistics: up to 10,000 sets of data, process capability index calculation possible
Temperature correction and conversion
Temperature correction: Compensates for deviations in measured values due to temperature.
Temperature conversion: The difference between the internal temperature of the DUT and the ambient temperature can be obtained through the thermal effect of the resistor.
