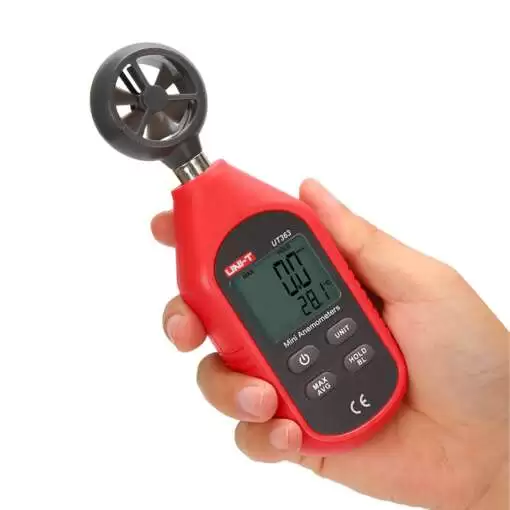

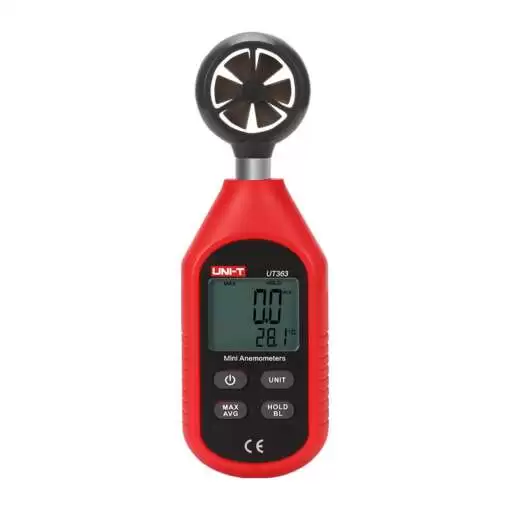

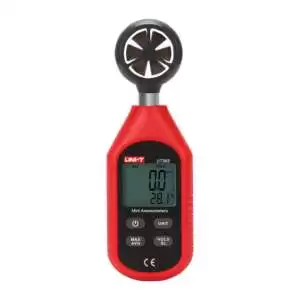

UNI-T UT363 Mini Anemometer
The UNI-T UT363 is a compact, handheld instrument designed to measure wind speed and ambient temperature through a miniature impeller and integrated thermal sensor. Encased in a sleek, lightweight housing, its front-facing digital display shows real-time readings as a rotating vane captures airflow, converting its rotations into an electrical signal processed by onboard circuitry. When the device is powered on, the impeller immediately begins spinning in response to even slight air movement, and the microprocessor interprets this motion to calculate wind velocity. Simultaneously, the temperature sensor, positioned near the base of the impeller assembly, monitors surrounding air temperature, feeding data to the same processing unit.
The instrument’s buttons allow the user to navigate between measurement modes and hold values on screen, while a simple backlight function ensures readability in dim environments. Internally, precision resistors and filtering components filter out electrical noise, guaranteeing stable output even if the user’s hand shifts slightly. Powered by three small batteries, the UT363 balances its components around a central circuit board, optimizing weight distribution so it can be comfortably held for extended periods. Its compact dimensions make it easy to position in tight spaces or carry in a pocket, and the ergonomic contours guide the user’s grip toward the impeller area.
Overall, the UT363 exemplifies a marriage of mechanical sensing and digital processing, delivering continuous airflow and temperature data in a conveniently sized instrument.
Features:
- MAX/AVG data hold functionality.
- Auto power-off to conserve battery life.
- Low-battery indication alerts when power is low.
- LCD backlight for readability in dim conditions.
- Overload indication to warn when measurements exceed range.
Specifications:
| Category | Specification |
|---|---|
| Wind Speed Range: | 0 m/s to 30 m/s |
| Wind Speed Accuracy: | ±(5% + 0.5) m/s |
| Wind Speed Resolution: | 0.1 m/s |
| Temperature Range: | –10 °C to 50 °C (14 °F to 122 °F) |
| Temperature Accuracy: | ±2 °C (±4 °F) |
| Temperature Resolution: | 0.1 °C (0.2 °F) |
| Wind Scale: | Levels 0 through 12 |
| Wind Scale Accuracy: | ±1 level |
| Sampling Rate: | 0.5 s per reading |
| Bluetooth (UT363BT only): | Supported (via iENV2.0 app) |
| Power Supply: | 3 × 1.5 V batteries (R03/AAA) |
| Display: | LCD with backlight (dimensions not specified) |
| Auto Power Off: | Yes |
| Low-Battery Indication: | Yes |
| Overload Indication: | Yes |
| Max/Avg Data Hold: | Yes |
| Operating Temperature: | 0 °C to 50 °C; ≤ 80 % RH |
| Storage Temperature: | –20 °C to 60 °C; ≤ 90 % RH |
| Product Dimensions: | 160 mm × 50 mm × 28 mm |
| Product Weight: | 118 g |
| Certification: | CE, UKCA |
Applications:
- HVAC System Testing and Maintenance.
- Environmental and Weather Monitoring.
- Agricultural and Greenhouse Airflow Management.
- Outdoor and Recreational Wind Assessment.
- Industrial Ventilation and Safety Inspection.
- Educational and Laboratory Demonstrations.
Package Include:
- 3x 1.5 V batteries (R03/AAA × 3)
- 1x English-language user manual
