UNI-T UT372D 2-in-1 Tachometer

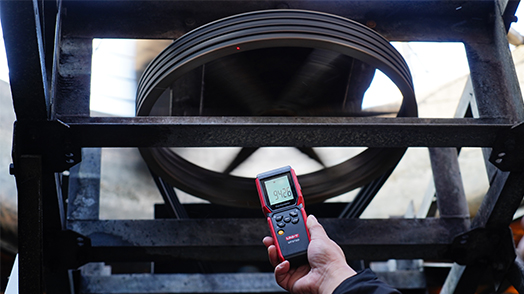

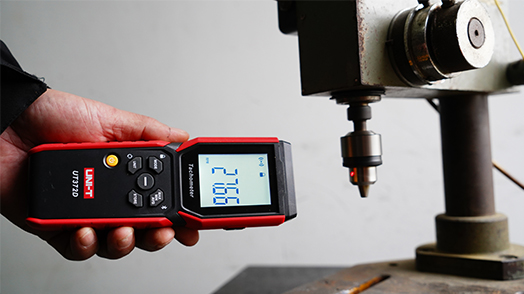

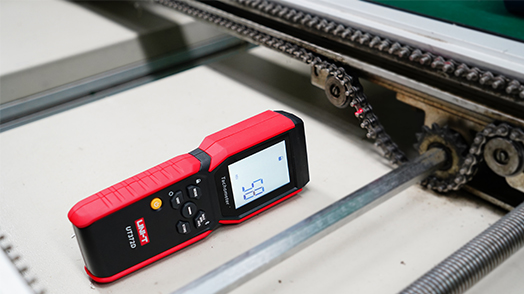

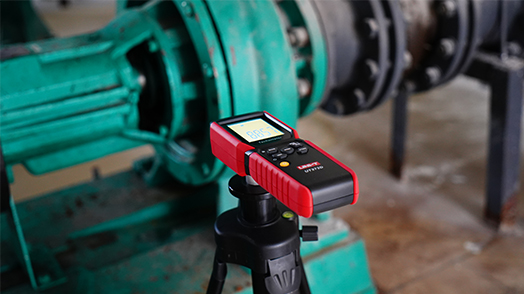

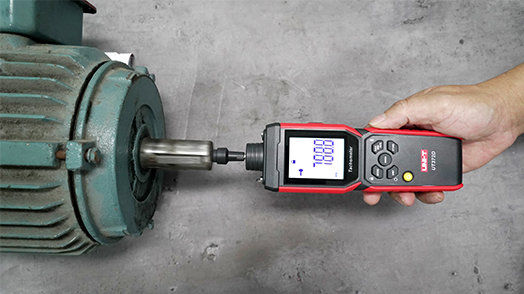

The UNI-T UT372D shines as a professional tachometer engineered for adaptability. With seamless switching between contact and non-contact (laser-based) modes, it allows for RPM measurements in a wide range of situations from touching rotating shafts to targeting reflective surfaces. Whether measuring motors, fans, or automotive components, its multi-mode design ensures precision in diverse work environments.
This instrument isn’t just about measurement it’s about smart measurement. It offers gathered data storage across up to 10 groups, enabling quick recall of maximum, minimum, average, and last readings. With a rotatable backlit LCD, readings stay easily legible even in poorly lit spaces. User interaction is streamlined through quick-access buttons and a responsive interface, making complex diagnostics feel intuitive.

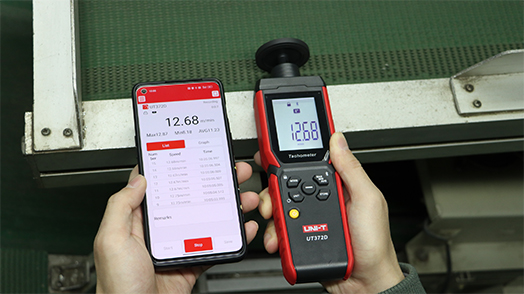

Modern workflows demand connected tools, and the UT372D delivers. With its built-in Bluetooth support, users can transmit readings wirelessly to the UTienv (Android) or iENV (iOS) app—facilitating real-time data export and detailed charting on smartphones. Its thoughtful safety design includes auto power-off after inactivity, low battery alerts, and a durable drop-proof build. Usability blends with reliability in every measurement.
Features:
- Contact and non-contact measurement modes.
- Laser (optical) and contact wheel attachments.
- MAX/MIN/AVG/Last reading display.
- Rotatable, backlit LCD for easy readability.
- Unit conversion (RPM, Hz, REV, length, surface velocity).
- Bluetooth app connectivity (UTienv / iENV).
- Auto power-off after ~15 minutes idle.
- Data storage: up to 10 groups.
Specifications:
| Specification | Range | |
| Non-contact (optical) measurement | Rotational velocity (RPM) | 1-99,999 |
| Frequency (HZ) | 1-1,666 | |
| Count(REV) | 1-99,999 | |
| Target distance | 50~500mm | |
| Contact measurement | Rotational velocity (RPM) | 1-19,999 |
| Frequency (HZ) | 1-333 | |
| Surface velocity | 0.1m wheel | |
| 0.1-1,999m/min | ||
| 0.4-6,550ft/min | ||
| 4-78,700in/min | ||
| 6”wheel | ||
| 0.15-1,524m/min | ||
| 0.5-5,000ft/min | ||
| 6-60,000in/min | ||
| Length | 0-99999(m/ft/in) | |
| Accuracy | ±0.02% ±1 digit | |
| Measurement modes | Contact RPM/Non-contact RPM/counting/frequency/Surface velocity/length | |
| Contact measurement unit | m/min, ft/min, in/min, m, ft, in | |
| Statistical measurement | Max/Min/Last reading/Average | |
| Data storage | 10 groups | |
| Operating temperature/humidity | 0°C~50°C; ≤80%RH | |
| Storage temperature | -20°C~60°C; ≤80%RH | |
| Drop test | 1m | |
| Auto power off | After about 15 minutes of inactivity | |
| General Characteristics | ||
| Product color | Red and grey | |
| Product weight | About 181g (without batteries) | |
| Product size | 176 × 63 x 38mm | |
| Battery type | AAA 1.5V ×3 | |
Applications:
- Motor and fan RPM diagnostics.
- Frequency and rotational speed monitoring.
- Surface velocity and length measurements.
- Industrial equipment calibration.
- Maintenance in automotive, papermaking, plastics, chemical fiber industries.
Package Contents:
- 1x User Manual
- 1x Quick Start Guide
- 1x Safety Instructions
- 3x AAA batteries (1.5 V)
- 1x Shaft contact (cone)
- 1x Shaft contact (internal cone)
- 1x Contact wheel (0.1 m)
- 1x Contact wheel (6 in)
- 10x Reflecting tape
- 1x Cloth carrying bag
