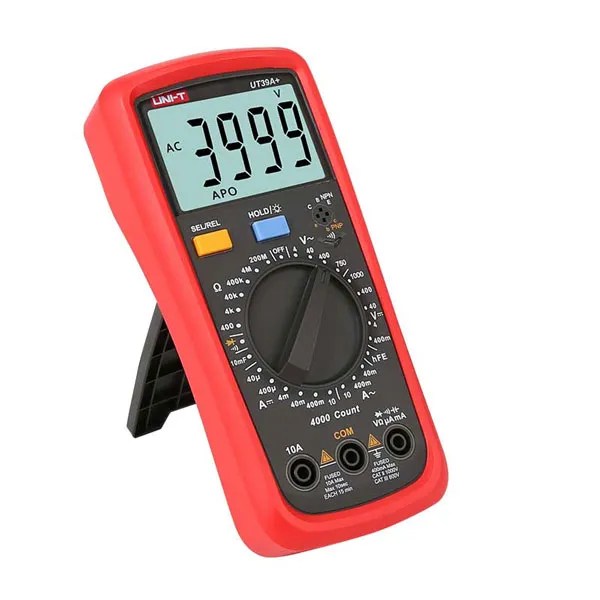

UNI-T UT39A+ Modern Digital Multimeter
UT39+ series modern digital multimeters are portable devices designed for the electrical industry. They feature overvoltage and overcurrent alarms and high voltage protection, triggered during faulty operation.
Features:
- 1000V DC voltage measurement
- 750V AC voltage measurement
- 10A DC/AC current measurement
- Resistance/Capacitance
- hFE
- Diode/Continuity test
Specifications:
| Specifications | Range | UT39A+ |
| DC voltage (V) | 400mV/4V/40V/400V/1000V | ±(0.5%+5) |
| AC voltage (V) | 4V/40V/400V/750V | ±(0.8%+3) |
| DC current (A) | 40μA/400μA/4mA/40mA/400mA/10A | ±(0.8%+3) |
| AC current (A) | 40mA/400mA/10A | ±(1%+2) |
| Resistance (Ω) | 400Ω/4000Ω/40kΩ/400kΩ/4MΩ/200MΩ | ±(0.8%+2) |
| Capacitance (F) | 10mF | ±(4%+5) |
| Display count | 4000 | |
| General Characteristics | ||
| Power | 1.5V battery (R03) x 2 | |
| Display | 56.5mm x 36mm | |
| Product net weight | 330g | |
| Product size | 175mm x 83mm x 53mm | |
Applications:
- General Electrical and Electronic Measurements.
- Household Appliance Testing.
- Automotive Circuit Diagnostics.
- Industrial Equipment Maintenance.
- Educational and Laboratory Use.
- Continuity and Diode Testing.
- Battery Voltage Checking.
- AC/DC Voltage and Current Measurement.
Package Contents:
- 1x UT39A+ Multimeter main unit
- 1x Test leads
- 1x User manual
- 1x 9V battery (6F22) (pre-installed or included)
- 1x Protective holster
