UNI-T UT515B 10KV Insulation resistance tester
The UNI-T UT515B is a handheld, battery-powered insulation resistance tester capable of generating up to 10 kV for on-site diagnostics and safety verification of high-voltage equipment. Encased in a rugged, double-insulated enclosure, it features a large, backlit LCD that displays real-time insulation resistance, test voltage, leakage current, and elapsed time. Users select one of six output voltage ranges (500 V, 1 kV, 2.5 kV, 5 kV, 10 kV) and fine-tune the output in 10 % increments. During testing, the instrument continuously monitors the applied voltage and automatically discharges the device under test upon completion to prevent residual charge buildup.
A built-in timer supports polarization index (PI) and dielectric absorption ratio (DAR) measurements, while an internal memory stores up to 9999 test records for later analysis. Data can be transferred to a PC via USB, where accompanying software enables further review and reporting. Powered by a 14.8 V, 5200 mAh lithium-ion battery, the UT515B provides approximately 15 minutes of continuous high-voltage output per charge, minimizing downtime in field inspections.
Safety interlocks prevent testing on live circuits, and status indicators alert operators to overvoltage, low battery, or test completion. Designed for use in power utilities, telecommunications, meteorology stations, oil fields, and industrial plants, this tester combines portability, data logging, and automated safety functions in a single instrument.
Features:
- Six selectable output voltages: 500 V, 1 kV, 2.5 kV, 5 kV, 10 kV.
- Fine-voltage adjustment in 10 % steps for each range.
- Real-time leakage current display (0.01 nA–5.00 mA) with ±(10 % + 5) accuracy.
- Polarization Index (PI) and Dielectric Absorption Ratio (DAR) test modes.
- Automatic discharge of the tested object after measurement.
- Built-in timer for continuous, timed, PI, and DAR tests (0 s–99 m 59 s).
- Insulation resistance comparison function with pass/fail indication.
- Data storage for up to 9999 sets of results.
- USB interface for data transfer to PC software.
- Automatic voltage detection to prevent testing on live circuits.
- Overvoltage category rating: CAT IV 600 V.
- Rechargeable 14.8 V, 5200 mAh lithium-ion battery pack (≈ 15 min continuous high-voltage output).
- Auto power-off after prolonged inactivity.
- Backlit LCD for clear visibility in low-light environments.
Specifications
| Parameter | Value |
|---|---|
| Insulation Resistance Ranges | • 500 V: 0.50 MΩ – 500 GΩ (0.01 MΩ/0.1 MΩ/1 MΩ/0.01 GΩ/0.1 GΩ/1 GΩ) ±(5 % + 5) [0.50 MΩ–4.99 GΩ]; ±(10 % + 10) [5.00 GΩ–49.9 GΩ]; reference above 50 GΩ |
| • 1 kV: 1.00 MΩ – 1000 GΩ (same resolution) ±(5 % + 5) [1.00 MΩ–9.99 GΩ]; ±(10 % + 10) [10.0 GΩ–99.9 GΩ]; reference above 100 GΩ | |
| • 2.5 kV: 2.50 MΩ – 2.5 TΩ (same resolution) ±(5 % + 5) [2.50 MΩ–24.9 GΩ]; ±(15 % + 10) [25.0 GΩ–249 GΩ]; reference above 250 GΩ | |
| • 5 kV: 5.00 MΩ – 5.0 TΩ (same resolution) ±(5 % + 5) [5.00 MΩ–49.9 GΩ]; ±(15 % + 20) [50.0 GΩ–499 GΩ]; reference above 500 GΩ | |
| • 10 kV: 10.0 MΩ – 10 TΩ (same resolution) ±(10 % + 10) [10.0 MΩ–99.9 GΩ]; ±(10 % + 10) [100 GΩ–999 GΩ]; reference above 1000 GΩ | |
| Output Voltages | 500 V, 1 kV, 2.5 kV, 5 kV, 10 kV (± 0 % / + 20 %) with 10 % stepping per range |
| Voltage Measurement (DC) | 30 V – 1000 V DC, 1 V resolution, ±(3 % + 5); LO if < 30 V; OL if > 1100 V |
| Voltage Measurement (AC) | 30 V – 750 V AC (50/60 Hz), 1 V resolution, ±(3 % + 5); LO if < 30 V; OL if > 825 V |
| Short-Circuit Current | ≥ 3.7 mA at 500 V/1000 V; ≥ 5 mA at 2.5 kV/5 kV/10 kV |
| Leakage Current Measurement | 0.01 nA – 5.00 mA, ±(10 % + 5) |
| DAR / PI Measurement | DAR: 0.00 – 999 (± 2 digits); PI: 0.00 – 999 (± 2 digits) |
| Display Count | 9999 counts (for insulation resistance) |
| Timer Range | 0 s – 99 m 59 s (supports continuous, timed, PI, DAR tests) |
| Compare Function | Pass/Fail indication based on user-set limits |
| Data Storage | 9999 test records (internal memory) |
| Data Transmission | USB interface (upload, save, print, analyze via PC software) |
| Auto Discharge | Automatic discharge when tested voltage > 30 V; “Energized” icon displayed during testing |
| Overload/Output Protection | Output protection with 10 % stepping; input protection for each range (e.g., 400 V–600 V stepping at 500 V) |
| Power Supply | Rechargeable lithium-ion battery, 14.8 V/5200 mAh (≈ 15 min continuous high-voltage output) |
| Battery Charger | Input: 100 V–240 V AC, 50/60 Hz; Output: 16.8 V DC/2 A |
| Backlight | Automatic backlight during testing; auto power-off after inactivity |
| Overvoltage Category | CAT IV 600 V (safety rating) |
| Operating Temperature | 0 °C – 40 °C, < 75 % RH |
| Storage Temperature | –20 °C – 60 °C, < 80 % RH |
| Dimensions (Toolbox) | 432 × 427 × 202 mm (toolbox dimensions for shipping) |
| Product Weight | 7.4 kg (unit with battery) |
Applications:
- Transformer Insulation Testing.
- Cable Insulation Resistance Measurement.
- Electrical Equipment Insulation Testing.
- High-Voltage Power System Testing.
- Telecommunications System Maintenance.
- Meteorological Equipment Inspection.
- Oil Field Equipment Maintenance.

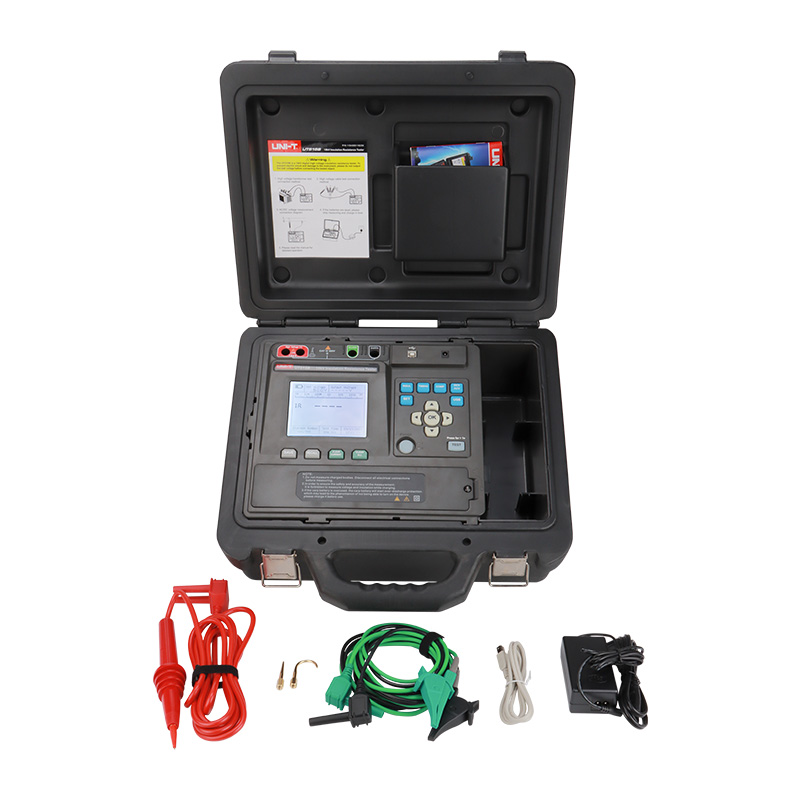

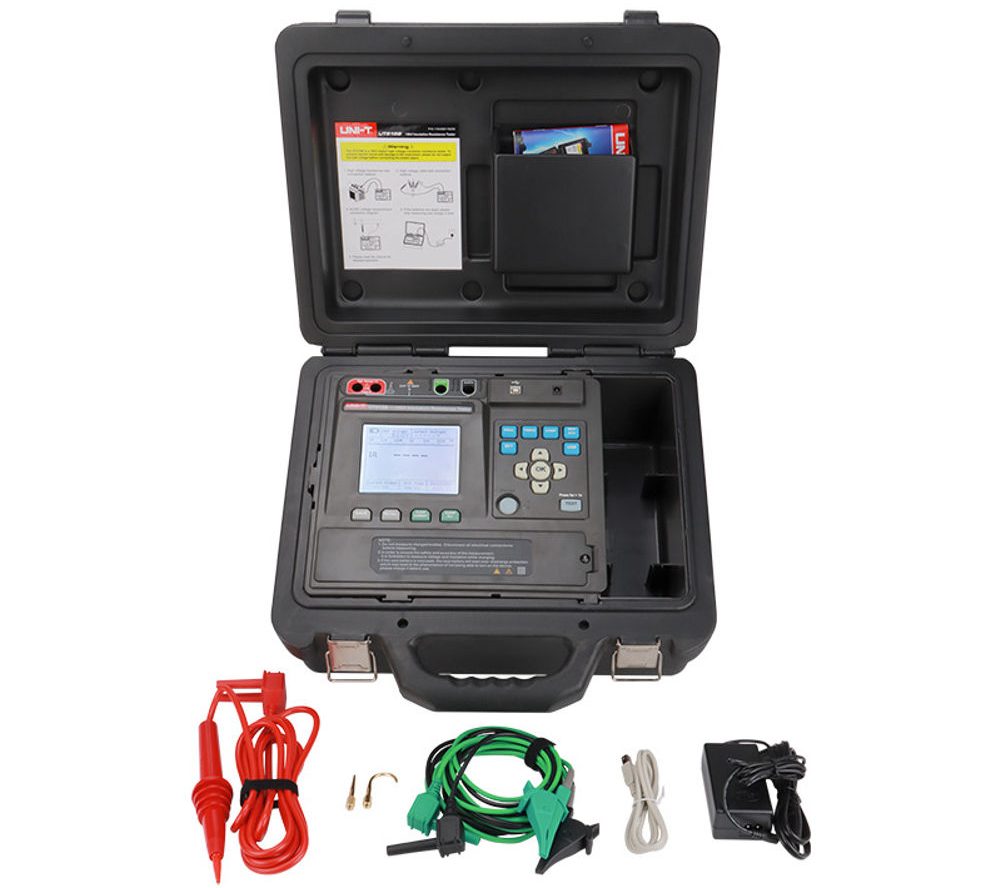

Package Contents:
- 1x Power Adaptor
- 3x Test Lead (Red/Black/Green)
- 1x USB Cable
- 1x User Manual
