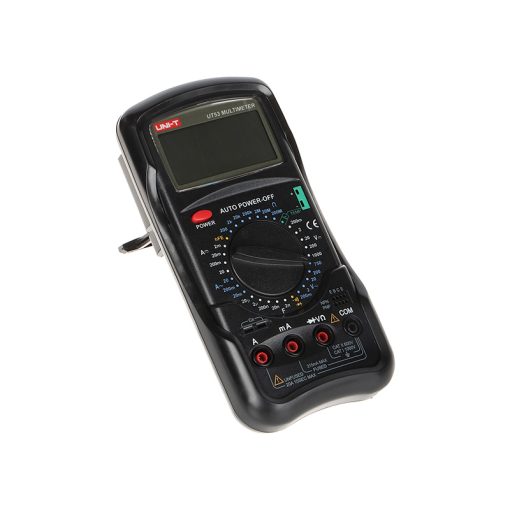

UNI-T UT53 Digital Multimeter
The UNI-T UT53 Digital Multimeter is a versatile handheld instrument designed to measure a wide range of electrical parameters, making it suitable for both professional technicians and hobbyists. Its clear LCD display and manual range selection allow users to accurately read measurements across different functions. The ergonomic design with manual control makes it easy to operate in various working environments, from workshops to on-site troubleshooting.
Equipped to measure DC and AC voltage up to high voltage levels, current, resistance, capacitance, and temperature, the UT53 handles diverse diagnostic tasks with consistent reliability. It also includes tests for diodes, transistor gain (hFE), and continuity checks, helping users quickly verify circuit integrity. The inclusion of a temperature probe broadens its utility beyond basic electrical measurement to HVAC and other thermal applications.
Built with safety in mind, the meter complies with relevant measurement safety standards and features protective elements such as automatic power-off, low battery indication, and a shock-resistant housing. Whether for educational labs, field service work, or everyday electrical diagnostics, the UNI-T UT53 provides a dependable toolset for accurate measurements at a balanced price point.
Features:
- Measures AC and DC voltage, current, resistance, and capacitance.
- Temperature measurement capability with an external probe.
- Diode and transistor (hFE) test functionality.
- Continuity test with audible buzzer.
- Manual range selection for precise control.
- Clear LCD display with maximum reading capacity.
- Automatic power-off to save battery.
- Low battery indicator.
- Impact-resistant protective holster.
Specifications:
| Specification | Details |
|---|---|
| DC Voltage Range: | 200 mV, 2 V, 20 V, 200 V, 1000 V |
| AC Voltage Range: | 200 mV, 2 V, 20 V, 200 V, 750 V |
| DC Current Range: | 2 mA, 20 mA, 200 mA, 20 A |
| AC Current Range: | 2 mA, 20 mA, 200 mA, 20 A |
| Resistance Range: | 200 Ω to 200 MΩ (multiple ranges) |
| Capacitance Range: | 2 nF to 20 µF |
| Temperature Range: | −20 °C to 1000 °C |
| Display Type: | LCD, approx. 1999 counts |
| Power Supply: | 9 V battery (6F22) |
| Dimensions: | ~190×88×34 mm |
| Weight: | ~540–580 g (with protective cover) |
| Safety Category: | CAT I 1000 V, CAT II 600 V |
Applications:
- Electrical HVAC diagnostics.
- Electronics repair and testing.
- Field service electrical measurements.
- DIY and hobbyist circuit troubleshooting.
- Educational lab training.
Package Contents:
- 1x UNI-T UT53 Digital Multimeter (unit)
- 2x Test leads
- 1x Temperature probe
- 1x Protective holster
- 1x User manual
- 1x Strap
