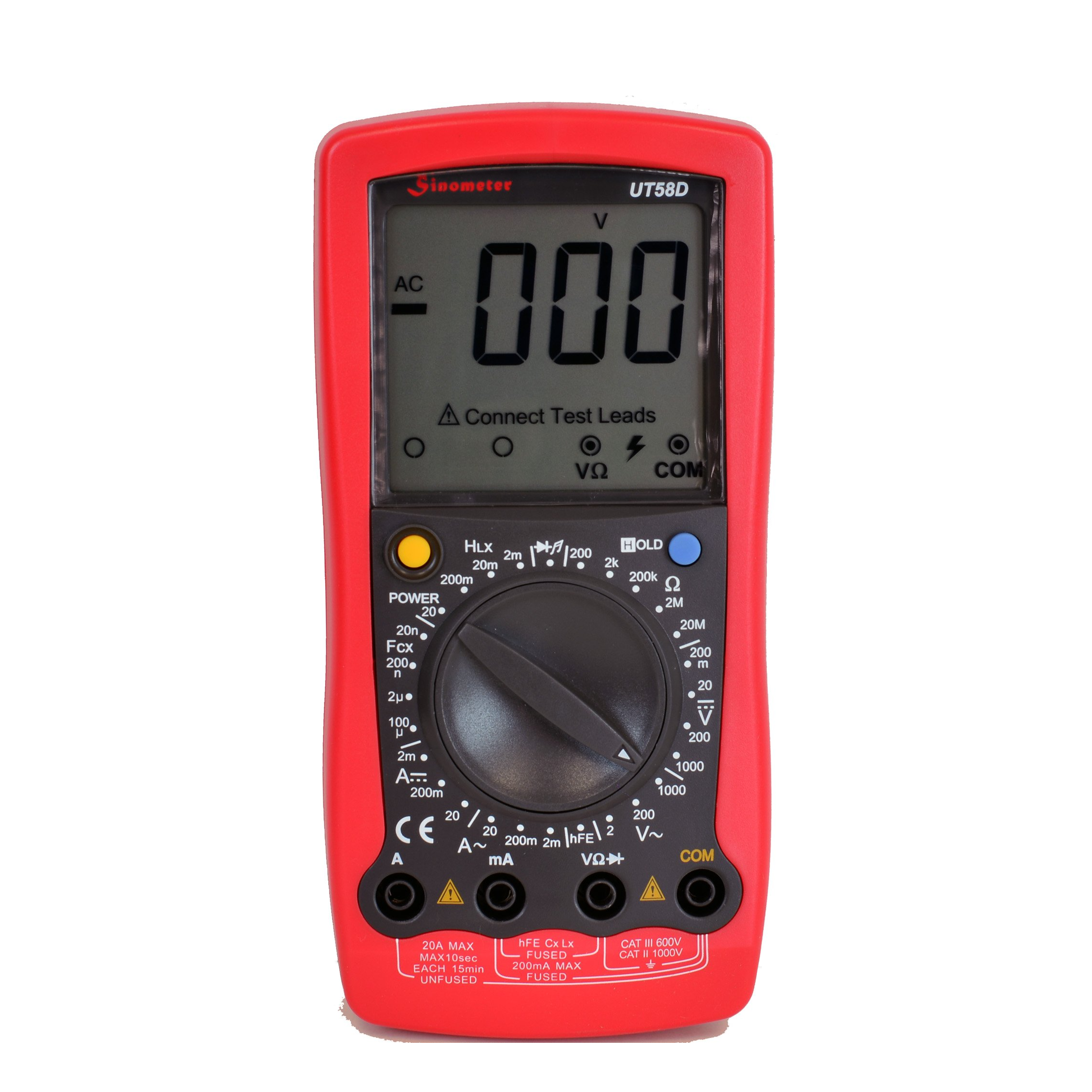

UNI-T UT58D Digital Multimeter
The UNI-T UT58D is a rugged 2000-count handheld digital multimeter designed for comprehensive electrical troubleshooting. Housed in a protective case with an ex-large LCD, the meter combines clear visual feedback with a straightforward rotary switch layout so users can quickly select measurement functions. Its electronics core uses large-scale integrated circuits and a dual A/D converter to deliver stable readings across many test modes.
UT58D supports a broad set of measurements AC/DC voltage and current, resistance, capacitance, inductance, transistor hFE, diode and continuity all accessible through dedicated ranges and sockets. Practical controls such as data-hold, a continuity buzzer (audible below ~70 Ω), and a sleep/auto-power-off mode make it convenient for field and bench work while preserving battery life. The meter is intended for safe routine use when the proper terminals, ranges and precautions are observed.
With a two-thousand-count display, multi-range coverage (28 measuring ranges), and a sturdy build that includes a holster and multi-purpose socket, the UT58D is suited for electricians, technicians and hobbyists. Its comprehensive measurement set, clear icons and durable construction make it a dependable tool for installation checks, maintenance and general diagnostics.
Features:
- 2000-count large LCD with full icon display.
- Measures AC/DC voltage and AC/DC current.
- Resistance, capacitance and inductance measurement (inductance ranges: 2 mH / 20 mH / 200 mH / 20 H).
- Diode test and continuity buzzer (buzzer on when < ~70 Ω).
- Transistor (hFE) test.
- Data-hold and sleep (auto power-off) mode.
- Overload protection for all ranges and robust casing with holster.
Specifications:
| Specification | Detail |
|---|---|
| Display / Count: | 2000-count, ex-large LCD |
| DC Voltage Ranges: | 200 mV / 20 V / 200 V / 1000 V |
| AC Voltage Ranges: | 2 V / 200 V / 1000 V |
| DC Current Ranges; | 2 mA / 200 mA / 20 A |
| AC Current Ranges: | 2 mA / 200 mA / 20 A |
| Resistance: | Multiple ranges (part of the 28 ranges) |
| Capacitance: | Included (see manual for range details) |
| Inductance: | 2 mH, 20 mH, 200 mH, 20 H |
| Diode / Continuity: | Diode test; continuity buzzer (≤ ~70 Ω) |
| Transistor Test: | hFE measurement (0–1000 β) |
| Power: | 9 V battery (NEDA 1604 / 6F22 / 009P) |
| Safety: | IEC61010; Double insulation; CAT II 1000 V / CAT III 600 V (see label/manual) |
| Other: | Sleep mode (~15 min auto off), data-hold, 28 measuring ranges |
Applications:
- Electrical installation & maintenance.
- Electronics troubleshooting & repair.
- Automotive electrical diagnostics.
- Educational labs and bench testing.
Package Contents:
- 1× English operating manual.
- 1× Pair of test leads.
- 1× Multi-purpose socket.
- 1× Test clip (pair).

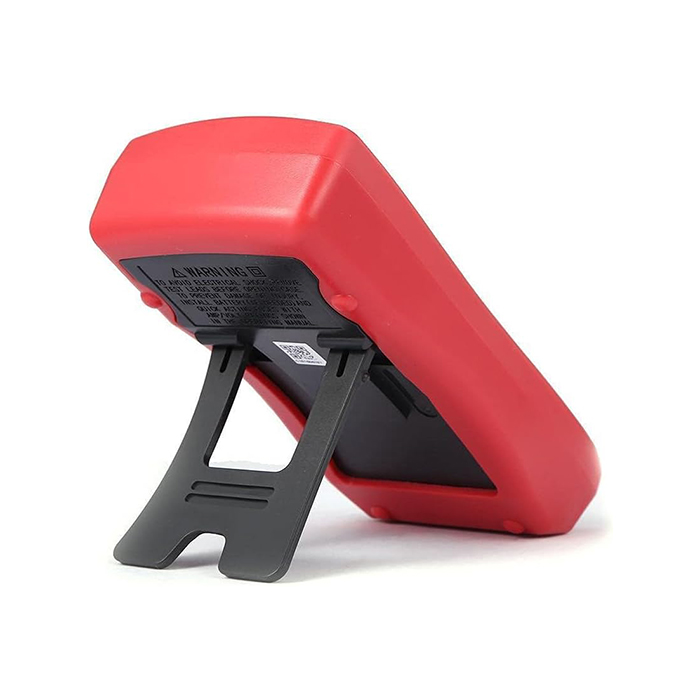

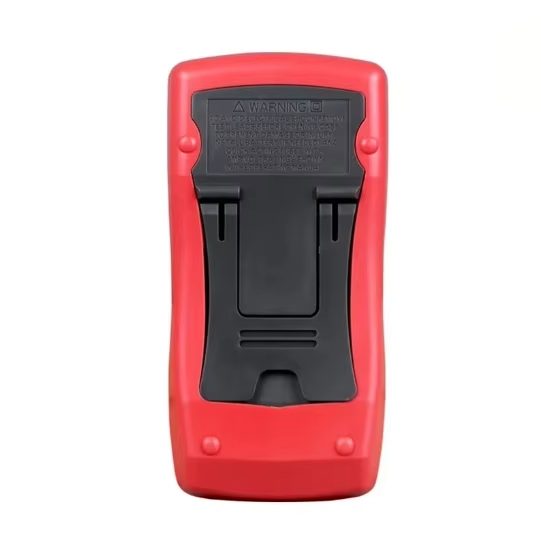

- 1× Holster.
- 1× 9V battery (NEDA 1604 / 6F22 / 009P).
