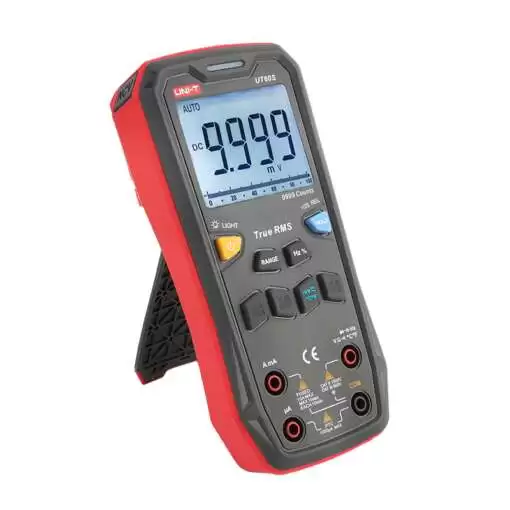

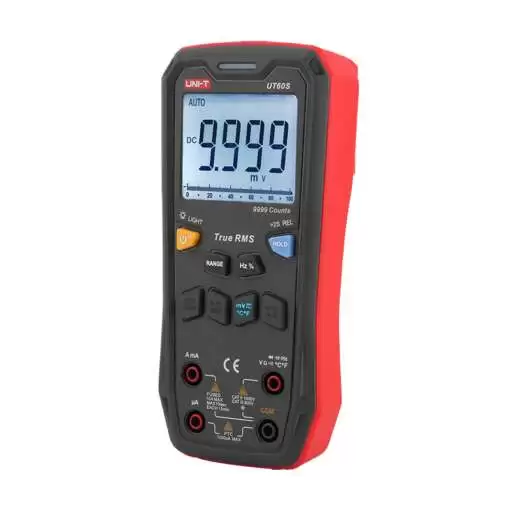

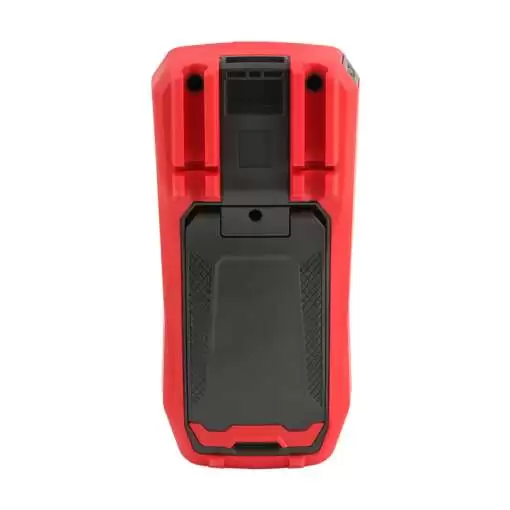

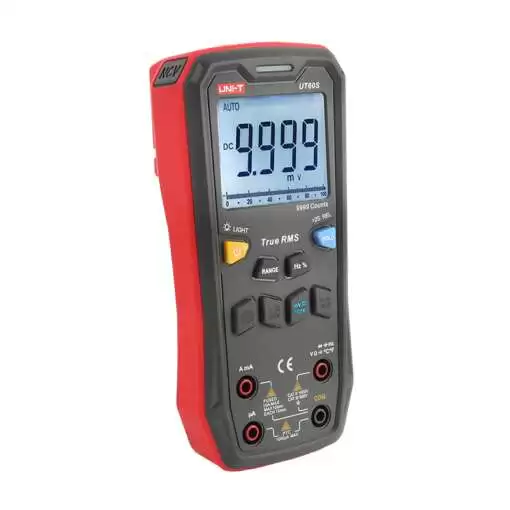

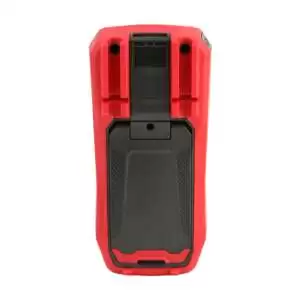

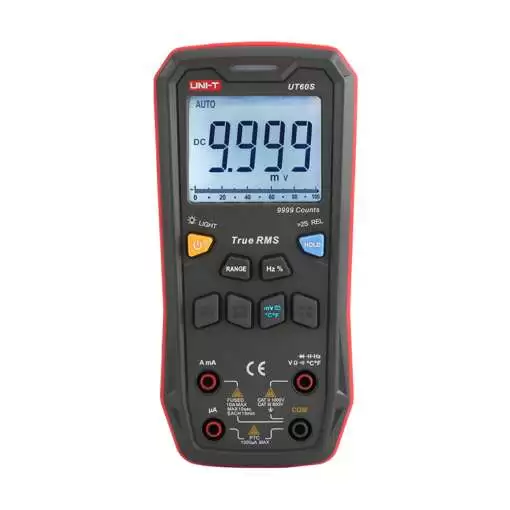

UNI-T UT60S True RMS Digital Multimeter
The UNI-T UT60S True RMS Digital Multimeter provide True-RMS measurement, 9999-count resolution, non-contact voltage detection, and many convenient features for users’ testing needs. These auto-ranged meters can measure up to 1000V AC/DC voltage, 10A AC/DC current, and 100MΩ resistance. The easy-to-use interface with backlight enables you to detect equipment quickly even in dark places. This CE-certified meter meets CAT II 1000V/CAT III 600V safety rating with rugged double-injection housing.
Features of series UT60S Digital Multimeter:
Certificates: CE, UKCA, cETLus
- 9999 counts
- True RMS
- Duty cycle
- Diode/Continuity test
- Temperature
- Non-contact voltage
- Analog bar/Data hold
- Backlight/Relative mode
- Auto/Manual range
- Low battery indication
- Three-color LED light indicator
Specifications of series UT60S Digital Multimeter:
| Specification | Range | UT60S |
| DC Voltage | 9.999mV/99.99mV/999.9mV/ 9.999V/99.99V/999.9V | ±(0.5%+3) |
| AC Voltage | 9.999mV/99.99mV/999.9mV/ 9.999V/99.99V/999.9V | ±(0.8%+3) |
| DC Current | 999.9uA/999.9mA/9.999A/10A | ±(0.8%+3) |
| AC Current | 999.9uA/999.9mA/9.999A/10A | ±(1.0%+3) |
| Resistance | 999.9Ω/9.999kΩ/99.99kΩ/999.9kΩ/9.999MΩ/99.99MΩ | ±(0.8%+2) |
| Capacitor | 9.999nF/99.99nF/999.9nF/9.999μF/99.99μF/999.9μF/9.999mF | ±(4.0%+5) |
| Frequency | 99.99Hz～9.999MHz | ±(0.1%+5) |
| Duty Cycle | 0.1～99.9% | ±(3%+5) |
| Temperature | –40℃～1000℃/–40°F～1832°F | ±4℃/±5℉ |
| Features | ||
| Display Count | 9999 | |
| Auto Range | √ | |
| REL | √ | |
| NCV | √ | |
| Diode | √ | |
| Continuity Test | √ | |
| Acousto-optic Indication (NCV/continuity/battery power) | √ | |
| Low Battery Indication | ≤3.6V | √ |
| Data Hold | √ | |
| Auto Power Off | 15Min | √ |
| Operation Temperature | 0℃～40℃ | |
| Safety | CAT II 1000V/CAT III 600V | |
| General Characteristics | ||
| Battery | 1.5V AAA x 3 | |
| Product Color | Red and Gray | |
| Product Net Weight | 290g | |
| Product Size | 169mm x 81mm x 46mm | |
Applications of series UT60S Digital Multimeter:
UT60S Temperature Measurement
UT60S Voltage Measurement
