UNI-T UT61B+ True RMS Digital Multimeter 1000V
UT61+ series are reliable true RMS digital multimeters with display counts of 6000 (UT61B+). It can measure up to 1000V AC/DC.
Equipped with audible and visible alarms, this series can provide warning especially when measuring high voltage/current.
Features:
- True RMS
- Data hold/backlight
- Max/Min/Relative mode
- USB communication
- Input protection
- Diode/continuity test
- NCV (audible/visual alarm)
Specifications:
| Specifications | Range | UT61B+ |
| AC voltage (V): | 1000V | ±(1%＋3) |
| DC voltage (V): | 1000V | ±(0.5%＋3) |
| AC current (A): | 10A | ±(1.2%＋5) |
| DC current (A): | 10A | ±(1%＋2) |
| Resistance (Ω): | 60MΩ | ±(1%＋2) |
| Capacitance (F): | 60mF | ±(3%＋5) |
| Frequency (Hz): | 10MHz | ±(0.1%＋4) |
| Duty cycle (%): | 0.1%~99.9% | ±(2%＋5) |
| Display count: | 6000 | |
| Bandwidth (Hz): | 40Hz~500Hz | |
| Analog bar: | 31 | |
| General Characteristics | ||
| Power: | 1.5V battery (R03) x 4 | |
| Product net weight: | 350g | |
| Product size: | 190mm x 90mm x 50mm | |

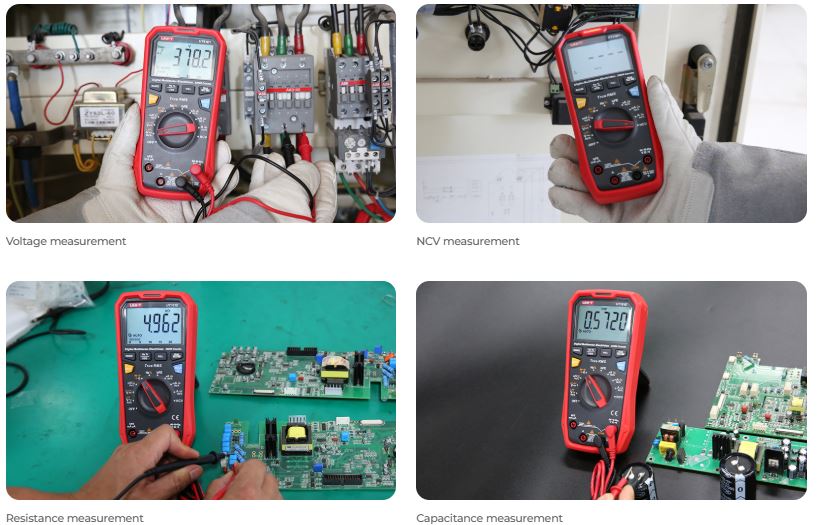

Applications:
- Voltage measurement.
- AC/DC current measurement.
- Resistance measurement.
- Capacitance measurement.
- Frequency measurement.
- Duty cycle measurement.
- Non-contact voltage (NCV) detection.
Package Contents:
- 1× UNI-T UT61B+ multimeter
- 1× Pair of gold-plated test leads
- 1× USB cable
- 1× Battery (or batteries) required to power the device
- 1× English manual
