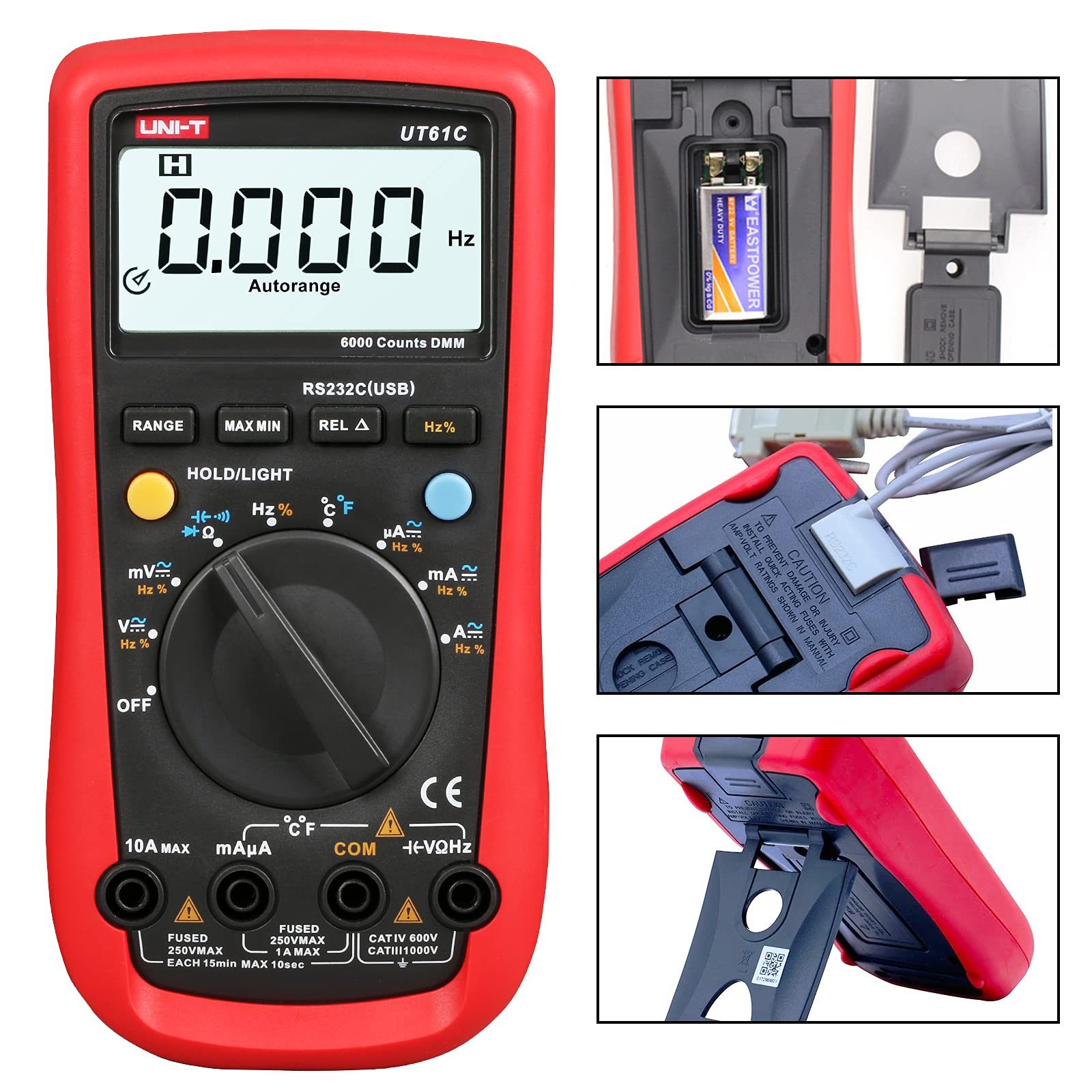

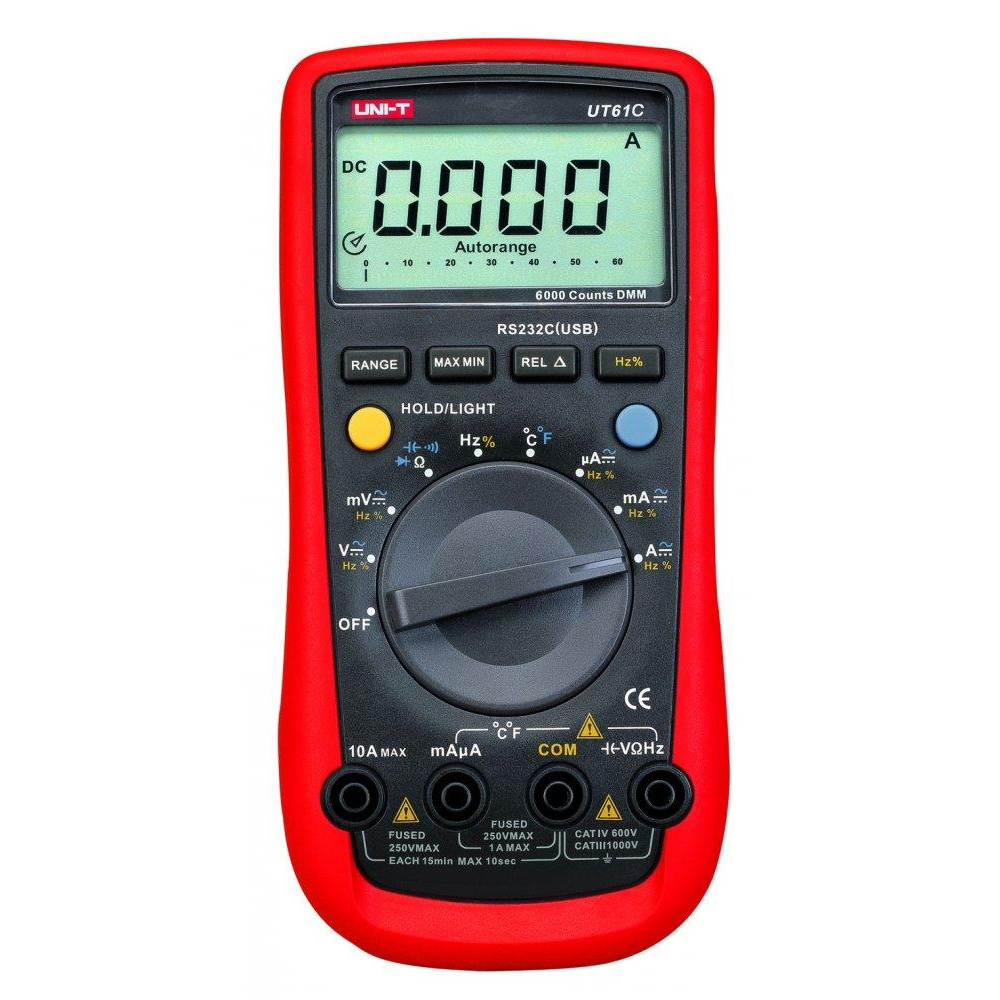

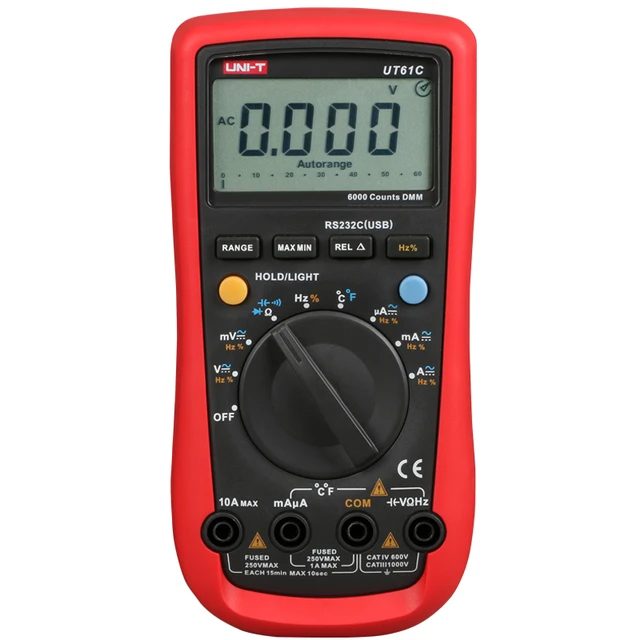

UNI-T UT61C Modern Digital Multimeter
The UT61C is a full-function digital multimeter designed to serve both serious electronics hobbyists and professionals. It presents a large, bright LCD screen set in a substantial, rugged body that feels durable and well built. All controls dial, buttons, input ports are positioned so the user can operate the meter in a workshop environment, often with gloves or in constrained space. The display also includes a bar-graph style analog representation in addition to numeric readings, giving instant sense of changes or instability in the measured signal.
This multimeter doesn’t just give basic voltage or current readings; it is built to manage a wide variety of tasks. The device accommodates both DC and AC measurements across multiple ranges, as well as resistance, capacitance, frequency, temperature, and more. It is suited to handling both small, precise components and higher-power circuits without constantly switching to different tools. Despite its capabilities, it maintains clarity: readouts are easy to see, the interface gives prompt response, and modes are switched without overly complex menus.

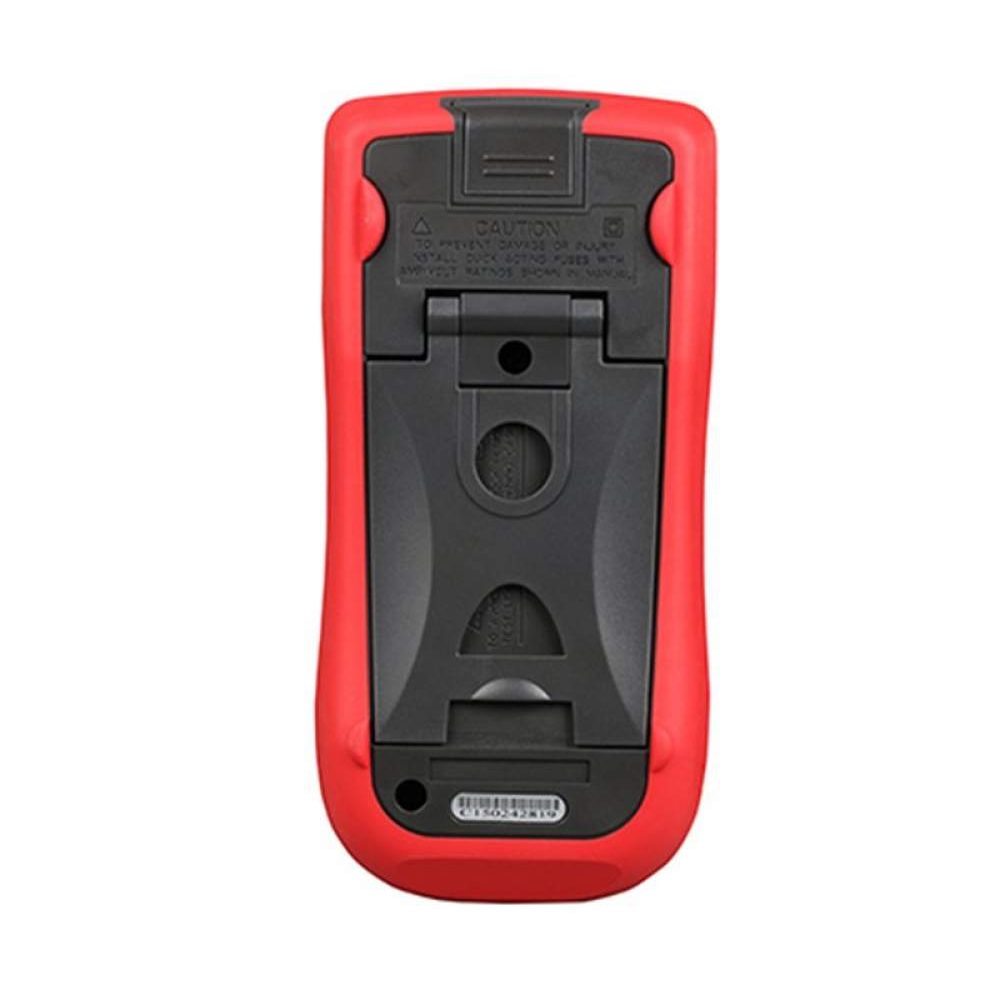

Physically, the UT61C is fairly large and sturdy. It uses a 9 V battery, which gives it portability, though its weight and size make it more comfortable when placed on a bench or mounted using its stand rather than held constantly. It also includes input protection and safety ratings, which increase confidence for users working on higher voltages. Overall, the design is about balancing versatility, precision, and durability. Whether used in lab, field, industrial maintenance or workshop, it aims to be a reliable, “do-everything” meter rather than a narrow specialty tool.
Feature:
- Auto range
- MAX/MIN/REL mode
- Auto power off
- LCD backlight
- RS-232 and USB interface
- Analog bar graph
- Low battery indication
- K-type temperature probe
- Diode/continuity buzzer
- Data hold
- Input protection
Specifications:
| Specifications | Range | UT61C |
| DC voltage (V) | 1000V | ±(0.5%+1) |
| AC voltage (V) | 750V | ±(1%+3) |
| DC current (A) | 10A | ±(1%+3) |
| AC current (A) | 10A | ±(1.2%+5) |
| Resistance (Ω) | 60MΩ | ±(1%+2) |
| Capacitance (F) | 4000μF | ±(3%+5) |
| Frequency (Hz) | 10Hz~10MHz | ±(0.1%+4) |
| Temperature | -40°C~1000°C | ±(1.2%+3) |
| -40°F~1832°F | ±(1.2%+4) | |
| Features | ||
| Display count | 6000 | |
| Bandwidth (Hz) | 45Hz~1kHz | |
| Duty cycle | 0.1%~99.9% | √ |
| General Characteristics | ||
| Power | 9V battery (6F22) | |
| Display | 65mm x 43mm | |
| Product color | Red and grey | |
| Product net weight | 370g | |
| Product size | 180mm x 87mm x 47mm | |
Applications:
- Electronics and component testing.
- Electrical installation troubleshooting.
- HVAC / mechanical / electrical maintenance.
- Lab use and R&D measurement work.
Package Contents:
- 1× UT61C multimeter unit
- 1× set of test leads (“probes”)
- 1× K-type temperature probe
- 1× RS-232 interface cable
- 1× PC software CD / disk
- 1× 9V battery (6F22)
- 1× manual (user guide)
