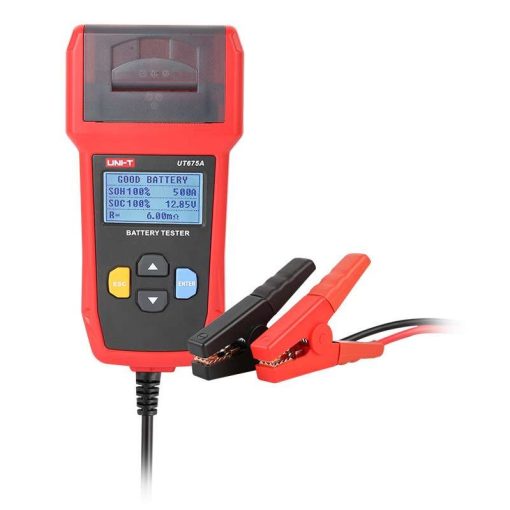

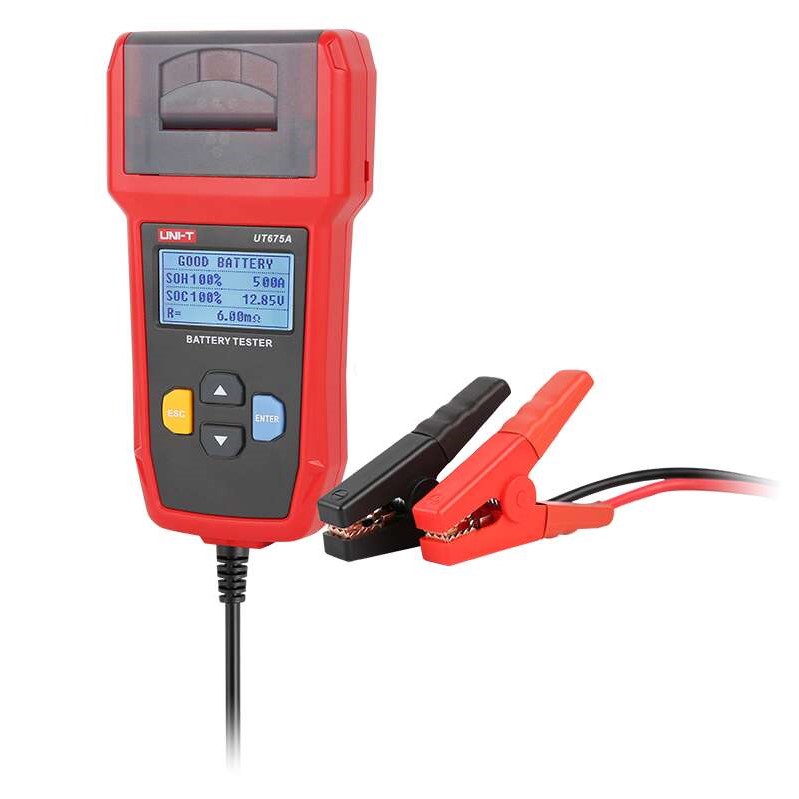

UNI-T UT675A Battery Tester
UT675A battery testers can be used to analyze the battery health of automobile batteries, suitable for battery capacities from 30Ah to 200Ah. These CE-certified testers can rapidly and accurately detect common faults caused by batteries. UT675A also includes USB communication and a built-in printer for report generation.
Features:
- 12V cranking lead acid battery test
- 12/24V charging or cranking system test
- Display battery capacity, voltage, resistance, and life
- Four-terminal Kelvin test
- 10 types of battery standards
- Language option (Chinese/English)
- Test without battery disassembly
- Print online and real-time test reports
- USB data transfer
Specifications:
| Specifications | Range | UT675A |
| Certificates: | CE, FCC, RoHS | |
| 12V battery test: | 7~16V DC | √ |
| 12V/24V cranking system test: | 7~30V DC | √ |
| 12V/24V charging system test: | 7~30V DC | √ |
| Battery type: | Ordinary lead acid battery, AGM flat plate battery, AGM spiral battery, GEL battery, EFB battery | |
| Battery capacity: | 3~250Ah | √ |
| Battery standard and range: | CCA: 40~2000; BCI: 40~2000; CA: 40~2000; MCA: 40~2000; JIS: 26A17~245H52; DIN: 40~1400; IEC: 40~1400; EN: 40~2000; SAE: 40~2000; AH: 3~250AH |
|
| Over-voltage protection: | √ | |
| Reverse connection protection: | √ | |
| A prompt of poor contact: | √ | |
| Battery status display: | √ | |
| Battery life display: | √ | |
| Battery capacity display: | √ | |
| Battery internal resistance display: | √ | |
| USB communication: | √ | |
| Printing function: | √ | |
| General Characteristics | ||
| Power: | None, powered by the external source | |
| Display: | 128×64 black and white lattice | |
| Product net weight: | 413g | |
| Product size: | 95mm x 47mm x 183mm | |
Applications:

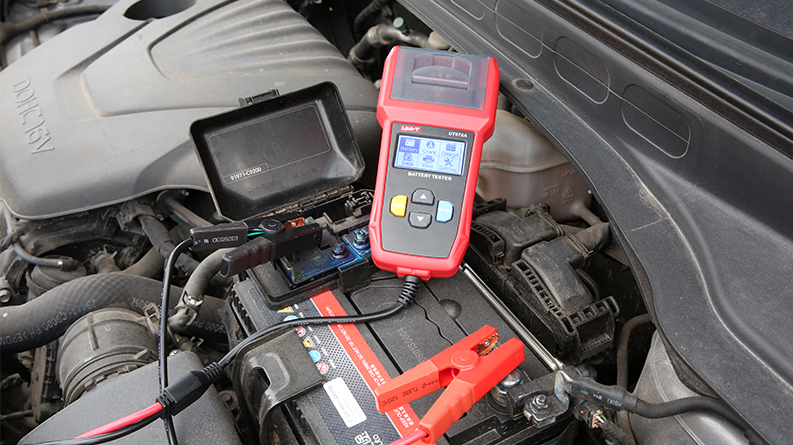

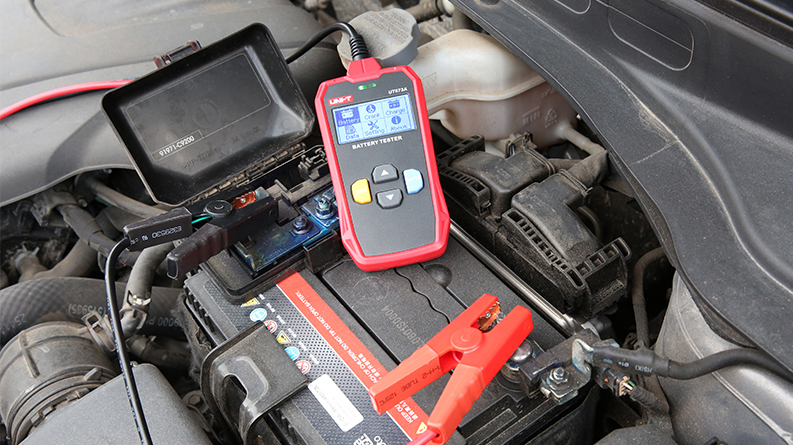

- Automobile Battery Health Analysis.
- 12V Cranking Lead Acid Battery Testing.
- 12/24V Charging System Diagnostics.
- 12/24V Cranking System Evaluation.
- Multi-Type Battery Compatibility Testing (including Ordinary Lead Acid, AGM Flat Plate, AGM Spiral, GEL, and EFB batteries).
Package Contents:
- 1x UNI-T UT675A Battery Tester
- 1x USB Interface Cable
- 3x Thermal Paper Rolls (57mm)
- 1x Carry Case
- 1x User Manual (English)
