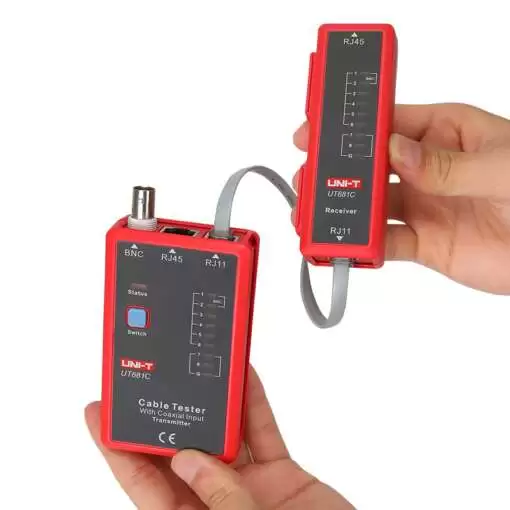

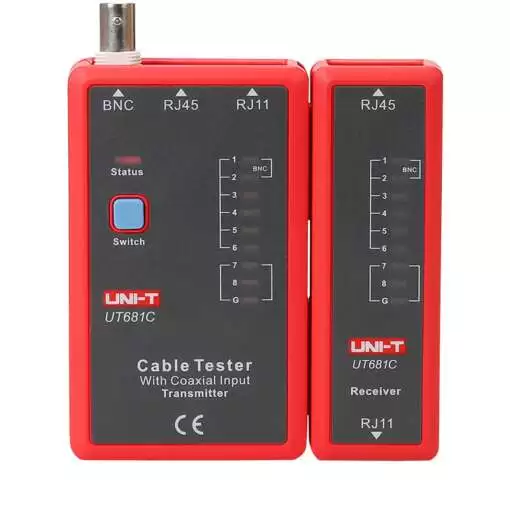

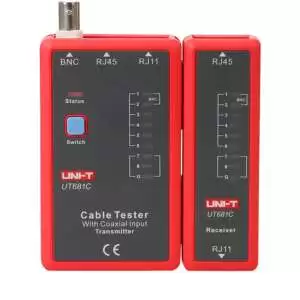

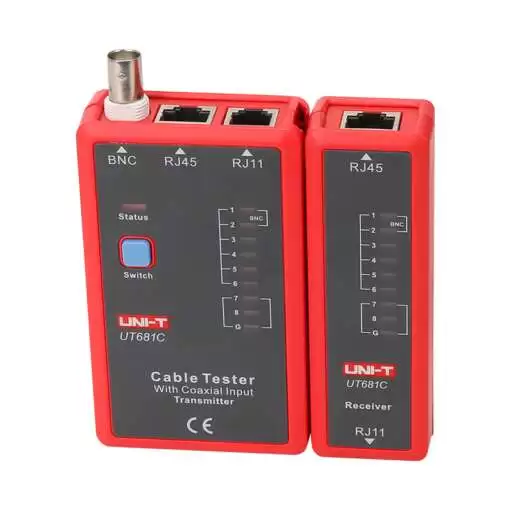

UNI-T UT681C Cable Tester
UT681 series handheld cable testers can be used to fast check if Ethernet/telephone/BNC/HDMI cables are conducting, short-circuit, crossed or open-circuit. They are ideal tools for technicians to install, maintain and inspect week current system circuit.
Features:
- LED status display
- Auto check of open/short/crossover circuit
- Single key operation
- Manual/auto power off (after10-minute inactivity)
- Low battery indication
- Power supplied by 9V battery
Specifications:
| Specifications | Range | UT681C | Description |
| Test function | To test for: RJ45/RJ11/BNC | √ | Need to use RJ45 to BNC adaptor |
| Fast test mode | √ | LED1~LED8, LED_G | |
| Slow test mode | √ | LED1~LED8, LED_G | |
| To test for the case of short circuit, crossover, open circuit, etc. | √ | ||
| Ethernet cable: shielded/ unshielded test | √ | ||
| Manual shutdown function | √ | ||
| Auto shutdown function | √ | No operation within 10 minutes, the device will shut down automatically | |
| Single key operation | √ | ||
| Power supply: 9V battery | √ | ||
| Low battery detection | √ | Less than 7.2V | |
| Application environment | Operating temperature: 0~40℃ | √ | |
| Storage temperature: -10~50℃ | √ | ||
| Operating humidity: 20~80%RH | √ | ||
| Storage humidity: 10~90%RH | √ | ||
| Altitude: ≤2000 meters | √ | ||
| Safety standard | CE EN61326-1: 2013; EN61326-2-2: 2013 | √ | |
| General Characteristics | |||
| Product color | Red and grey | ||
| Product net weight | Transmitter: 87g; receiver: 51g | ||
| Product size | Transmitter: 102mm x 62mm x 28mm; receiver: 102mm x 37mm x 28mm | ||
Applications:
- Ethernet cable / LAN wiring testing.
- Telephone line verification.
- Coaxial / BNC cable checking.
- Fault detection in network cabling (open / short / crossover).
Package Contents:
- 1x UT681C Cable Tester (main unit, which includes transmitter and receiver)
- 1x RJ45 to BNC adapter
- 1x 9 V battery (to power the unit)
- 1x English user manual / instruction guide
- 1x Packaging / gift box (standard retail box)
