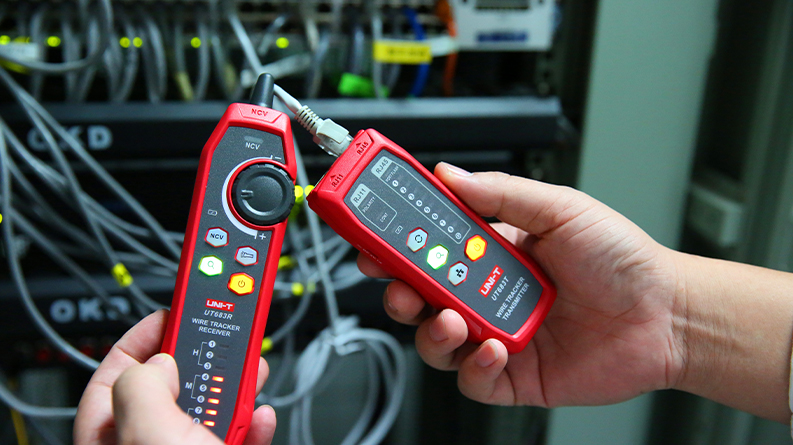

UNI-T UT683KIT Wire Tracker
The UT683KIT is an intelligent wire tracker which consists of the transmitter and receiver, this kit is designed with strong anti-interference ability. The receiver can quickly and accurately locate the target cable. This kit can automatically identify open, short, polarity, and quickly distinguish cable failure.
Features:
- Line function.
- NCV function.
- Withstand voltage DC 60V.
- Port flashes.
Specifications:
| Specifications | Description |
| Certificates: | CE, RoHS |
| Transmitter | |
| Port flashing: | √ |
| Wire tracking: | √ |
| Line alignment: | √ |
| Open-short test: | 10kΩ |
| Polarity test: | √ |
| Operating time: | ＞8 hours |
| Receiver | |
| Wire tracking: | RJ11＞3000m; RJ45＞100m |
| NCV function: | √ |
| Headset jack: | 3.5mm |
| Low battery indication: | √ |
| Operating time: | ＞5 hours |
| General Characteristics | |
| Power: | 1050mAh rechargeable lithium battery |
| Product net weight: | Transmitter: around 95g; Receiver: around 127g |
| Product size: | Transmitter-130mm x 51mm x 28mm
Receiver-197mm x 48mm x 34mm |
Applications:
Wire tracking
NCV measurement
Package Contents:
- 1x Transmitter
- 1x Receiver
- 1x Micro-USB charging cable
- 1x RJ11 adapter cable
- 1x RJ11 alligator clip adapter cable
- 1x RJ45 adapter cable
- 1x User manual (English)
- 1x Pouch / carrying bag
