UNI-T UT693D Optical Multimeter (Power Meter & VFL)
UNI-T UT693D is an IP65 optical multimeter combining power meter & visual fault locator for fiber optics: wide range, backlight display.
1,750.00 EGP
Buy NowUT693D Optical Multimeter (Power Meter & VFL)
UT693D handheld optical integrated machine is mainly used for continuous optical signal power measurement, using low-power single-chip microprocessor for control, full-featured, with 10mw red light pen. The product uses a built-in detector to protect it. In addition, it also has IP65 waterproof and dustproof, backlight display, auto power off function, wavelength memory function, user calibration function and ultra wide optical power test range. Widely used in fiber optic cable construction and maintenance, fiber optic communications, fiber optic sensing, optical CATV and other fields.
Features:
- Cable construction and maintenance.
- Optical fiber communication.
- Evaluation of optical equipment.
- Production, installation, operation and maintenance of fiber optic transmission systems.
- Optical engineering, production plant or facility maintenance.
Specifications:
| Specifications | Description | UT693D | |
| Optical power meter: | Wavelength range | 800nm~1700nm | √ |
| Calibrated wavelength | 850nm, 980nm, 1300nm, 1310nm, 1490nm, 1550nm, 1625nm, 1650nm | ||
| Measurement range | UT692D/UT693D: -70~10dBm, UT692G: -50~26dBm | ||
| Uncertainty | ±5% | ||
| Display resolution | Linear: 0.1%, logarithmic: 0.01dBm | ||
| Connector | FC/SC/ST | ||
| Detector type | InGaAs | ||
| Visual fault locator: | Wavelength | 650nm±10nm | √ |
| Power | 10mW (measurable optical fiber length: approximately 8~10km) | ||
| Mode | Continuous/Pulse | ||
| Connector | FC/SC/ST | ||
| Features | |||
| Low battery indication: | √ | ||
| Auto power off: | √ | ||
| IP rating: | IP65 | ||
| Drop test: | 2m | ||
| General Characteristics | |||
| Power: | 1.5V battery (LR6) x 3 | ||
| Display: | 63mm x 40mm | ||
| Product color: | Red and grey | ||
| Product net weight: | 300g | ||
| Product size: | 189mm x 87mm x 45mm | ||
Applications:

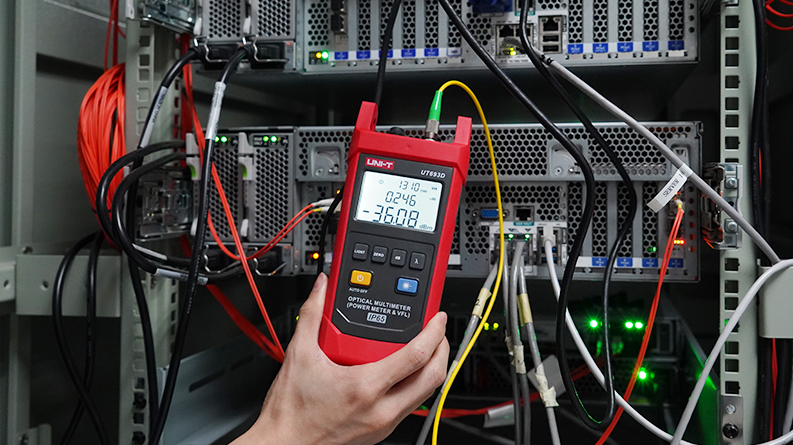

- Optical signal power measurement.

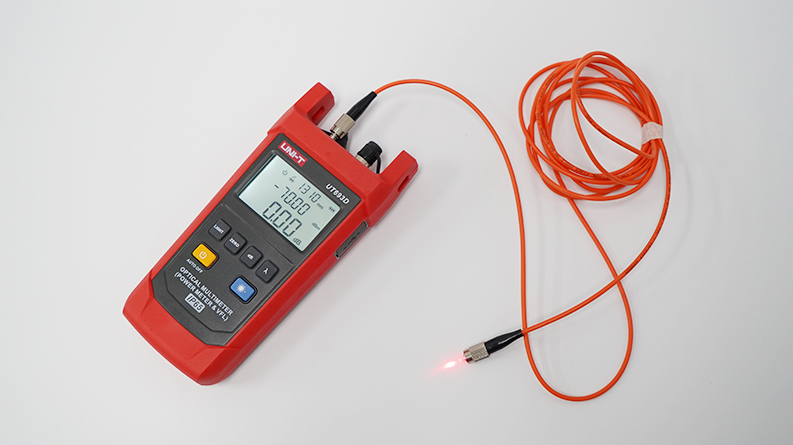

- Visual fault locating in fiber optics.
- Fiber optic cable construction & maintenance.
- Fiber-optic communication systems.
- Optical sensing & CATV.
Package Contents:
- 1× UT693D Optical Multimeter device
- 1× Canvas cover / carrying bag
- 3× 1.5V AA batteries
- 1× Instructions / user manual
