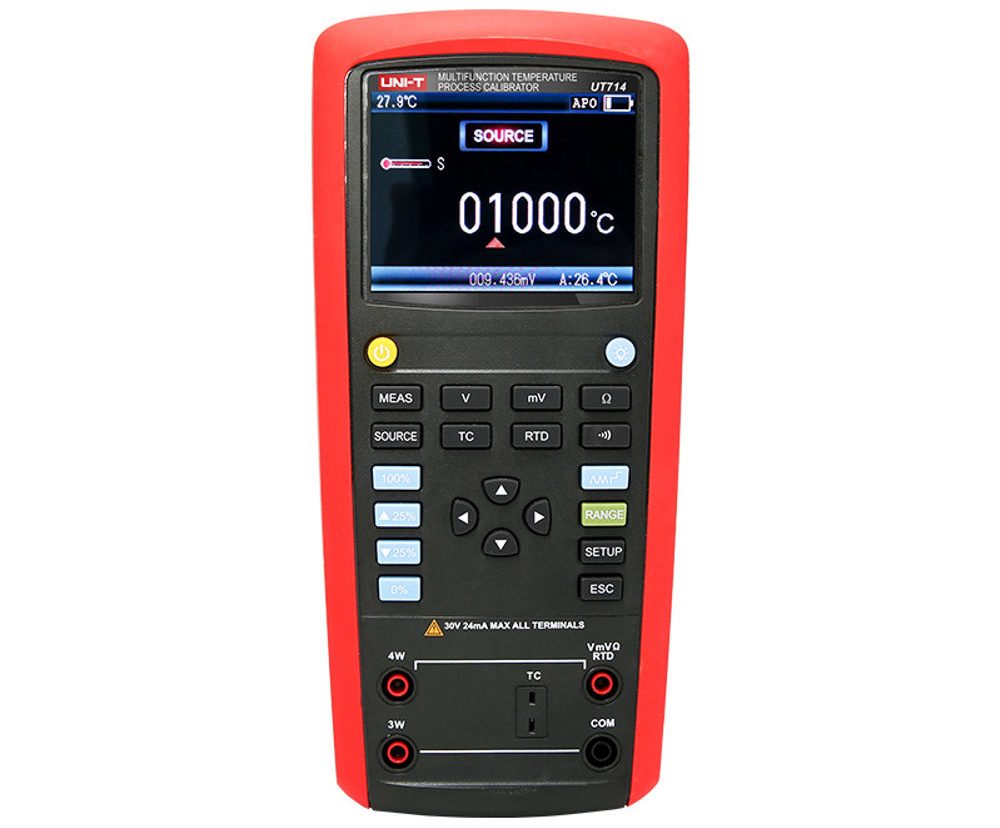

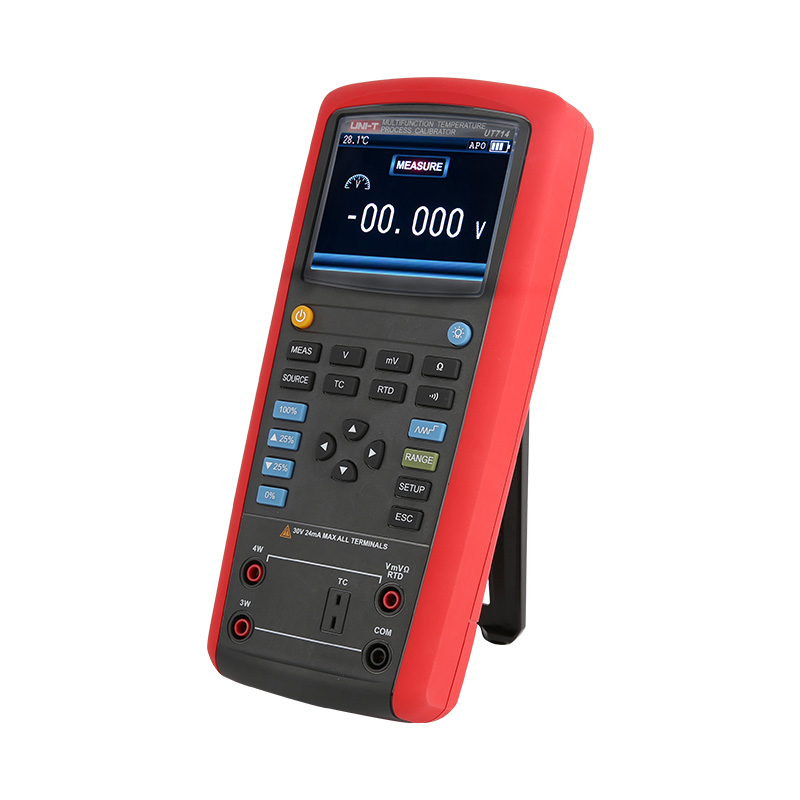

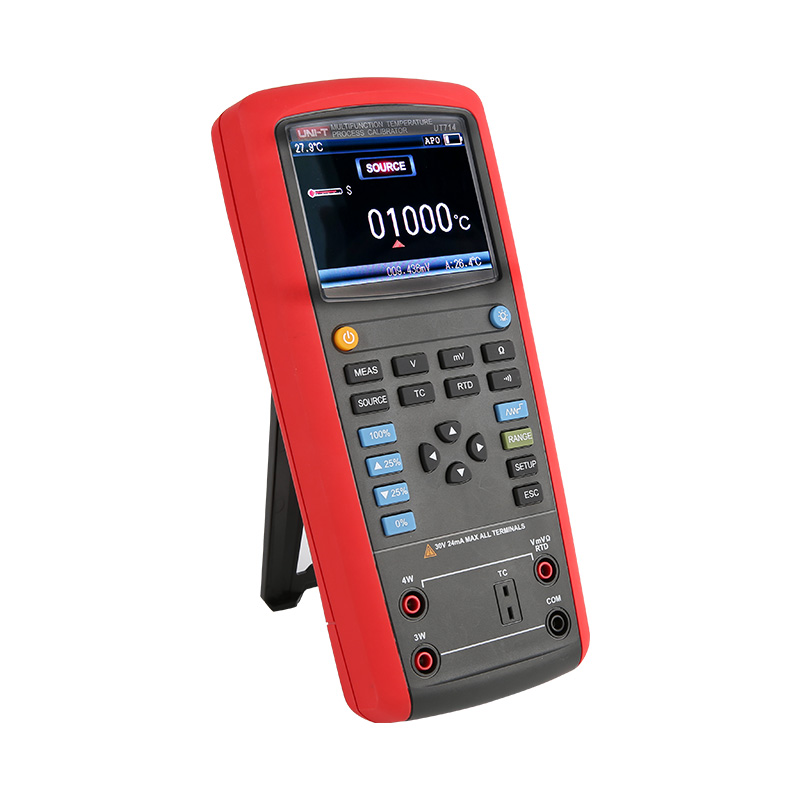

UNI-T UT714 Multifunction Temperature Process Calibrator
The UNI-T UT714 Multifunction Temperature Process Calibrator is a rugged, handheld instrument designed to both source and measure a broad spectrum of temperature signals, making it ideal for calibration and troubleshooting of temperature-based process equipment. Internally, it accommodates thermocouples (types R, S, K, E, J, T, N, B, L, U) and RTDs (Pt and Cu elements at standard α values) by accurately generating reference voltages or resistances to simulate real-world sensors. Simultaneously, it can measure incoming signals thermocouple mV, RTD resistance, DC voltage, or resistance allowing end-to-end verification of transmitters, controllers, and sensors.
Its 20,000-count display ensures fine resolution, while a built-in continuity check streamlines wiring diagnostics. Encased in a durable housing, the UT714 operates between –10 °C and 55 °C, with a large backlit LCD facilitating readability in dim environments. It also features a rechargeable AA-battery pack, a micro-USB port for PC connectivity, and onboard memory to store and recall custom setups saving time when switching between calibration tasks. Step and ramp functions enable automated simulation of temperature profiles, and contrast adjustment ensures clear visibility.
Lightweight (650 g) and ergonomically designed, the UT714 accelerates calibration workflows in field and workshop environments without relying on external reference sources.
Features:
- Step/ramp functions for automated temperature simulation.
- Rechargeable 1.2 V × 6 AA battery pack.
- Source and measure accuracy up to ±0.02 % (voltage) and ±0.05 % (resistance).
- Contrast-adjustable, backlit LCD for use in low-light conditions.
- Time-adjustable auto power-off to conserve battery.
- USB communication port for PC connectivity and data logging.
- Stores and recalls up to user-defined setups for repeat calibrations.
Specifications:
| Parameter | Specification |
|---|---|
| Thermocouple Types (Source): | R, S, K, E, J, T, N, B, L, U |
| Thermocouple Types (Measure): | R, S, K, E, J, T, N, B, L, U |
| RTD Types (Source): | Pt100, Pt200, Pt500, Pt1000, Cu10, Cu50, Cu100, Pt100-392, Pt100-JIS, Ni120 |
| RTD Types (Measure): | Pt100-385, Pt100-392, Pt100-JIS, Pt200-385, Pt500-385, Pt1000-385, Cu10, Cu50, Cu100, Ni120 |
| DC Voltage (Source): | 50 mV, 500 mV, 30 V |
| DC Voltage (Measure): | 100 mV, 1000 mV, 10 V |
| Resistance (Source): | 500 Ω, 5000 Ω |
| Resistance (Measure): | 400 Ω, 4000 Ω |
| Display Count: | 20,000 |
| Operating Temperature Range: | –10 °C to 55 °C |
| Source Accuracy (Voltage): | ±(0.02 % + 2 digits) |
| Source Accuracy (Resistance): | ±(0.05 % + 10 digits) |
| Measure Accuracy (Voltage): | ±(0.02 % + 10 digits) |
| Measure Accuracy (Resistance): | ±(0.05 % + 10 digits) |
| Battery: | Rechargeable 1.2 V × 6 AA (7.2 V nominal) |
| Power Adapter Input: | 100–240 VAC (via included power adapter) |
| Weight (Net): | 650 g (unit only) |
| Dimensions: | 195 × 95 × 58 mm (H × W × D) |
| Continuity Test: | Yes (built-in) |
| Certificates: | CE, UKCA |
Applications:
- Industrial Process Control.
- Chemical and Petrochemical Plants.
- Food & Beverage Processing.
- Pharmaceuticals and Biotechnology.
- HVAC/R Systems (Heating, Ventilation, Air Conditioning, Refrigeration).
- Research & Development Laboratories.
- Power Generation Facilities.
- Oil & Gas Industry.
- Automotive Temperature Sensor Calibration.
- Environmental Testing Chambers.
Package Contents:
- 1x UT714 Calibrator Unit
- 1x Carrying Bag
- 1x Auxiliary Grounding Rod
- 1x Test Leads
- 1x Simple Test Lead
- 1x Temperature Probe
- 1x USB Cable
- 1x Power Adapter
- 1x User Manual (English)
