UNI-T UT715 Multifunction Loop Process Calibrator

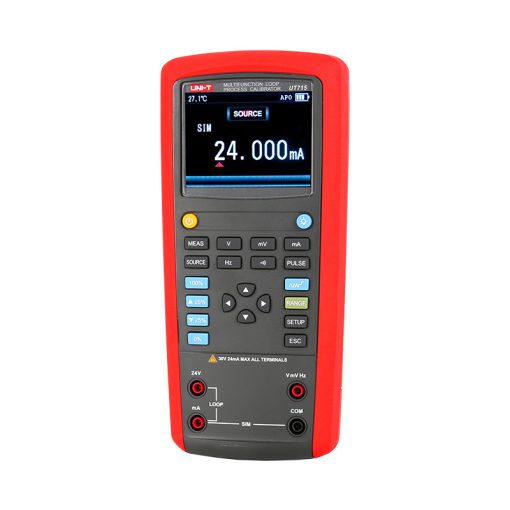

The UNI-T UT715 Multifunction Loop Process Calibrator is a handheld instrument engineered for precise sourcing and measurement of loop currents and voltages in industrial control circuits. Internally, it combines a high-resolution 20,000-count display with a stable DC supply and current-generation circuitry to simulate transmitter signals while simultaneously measuring process loops. This dual-function capability allows technicians to energize a 4–20 mA loop with a 24 V supply, verify transmitter outputs, and troubleshoot faults without needing separate power sources.
A built-in continuity check streamlines wiring diagnostics, and selectable frequency and pulse outputs facilitate testing of frequency-based devices. Housed in an ergonomic, impact-resistant casing, the UT715 features a backlit LCD for clear readings in dim environments and an auto power-off function to preserve battery life. Rechargeable AA cells power the unit for extended field use, and a micro-USB port enables firmware updates and data transfer to PC software.
Rapid step-and-ramp functions automate signal sweeps to validate transmitter linearity, while onboard memory stores user-defined setups to expedite repeat calibrations. Lightweight (650 g) and compact, the UT715 integrates all essential loop-calibration tools into a single package, making it ideal for maintenance, calibration, and commissioning of process control systems.
Features:
- Step/ramp functions for automated loop-signal simulation.
- Rechargeable 1.2 V × 6 AA battery pack.
- Source and measure accuracy up to ±(0.02 % + 2 digits) for voltage and current.
- Contrast-adjustable, backlit LCD for clear visibility.
- Auto power-off (time adjustable) to extend battery life.
- Provides 24 V loop power to a transmitter while simultaneously measuring loop current.
- Stores and recalls user-defined setups for repeat calibrations.
- USB communication port for PC connectivity and data logging.
Specifications:
| Parameter | Specification |
|---|---|
| DC Voltage (Source): | 200 mV / 30 V (±(0.02 % + 2)) |
| DC Voltage (Measure): | 100 mV / 1000 mV / 10 V (±(0.02 % + 10)) |
| DC Current (Source): | 20 mA / 20 mA (SIM) (±(0.02 % + 2)) |
| DC Current (Measure): | 20 mA / 20 mA (SIM) (±(0.02 % + 2)) |
| Loop Current (Source): | 20 mA (±(0.02 % + 2)) |
| Loop Current (Measure): | 20 mA (±(0.02 % + 2)) |
| Frequency (Source): | 100 Hz / 1 kHz / 10 kHz / 100 kHz (±(0.01 % + 1)) |
| Frequency (Measure): | 200 Hz / 2000 Hz / 20 kHz / 100 Hz / 1 kHz / 10 kHz (±1 digit) |
| Pulse (Hz): | 200 Hz / 2000 Hz / 20 kHz (±10 %) |
| Loop Power Output: | 24 V (±10 %) |
| Display Count: | 20,000 counts |
| Operating Temperature: | –10 °C to 55 °C |
| Continuity Test: | Yes (built-in continuity check) |
| Accuracy (Source/Measure): | Voltage: ±(0.02 % + 2) / ±(0.02 % + 10); Current: ±(0.02 % + 2); Frequency: ±(0.01 % + 1) / ±1 digit; Pulse: ±10 % |
| Battery: | Rechargeable 1.2 V × 6 AA (7.2 V nominal) |
| Power Adapter Input: | 100–240 VAC (via supplied adapter) |
| Weight (Net): | 650 g (unit only) |
| Dimensions (H×W×D): | 195 × 95 × 58 mm |
| Certificates: | CE, UKCA |
Applications:
- Industrial Process Control.
- Chemical & Petrochemical Plants.
- Food & Beverage Processing.
- Pharmaceuticals & Biotechnology.
- HVAC/R Calibration.
- Research & Development Laboratories.
- Power Generation Facilities.
- Oil & Gas Instrumentation.
- Automotive Sensor Testing.
- Environmental Test Chambers.
Package Contents:
- 1x UT715 Calibrator Unit
- 1x Carrying Bag
- 1x Test Leads Set (red, black, any color-coded leads for voltage/current connections)
- 1x Simple Test Lead (1.6 m)
- 1x USB Cable (1.5 m; for PC communication and data transfer)
- 1x Power Adapter (100–240 VAC input, 5 V/1 A output for charging)
- 1x User Manual (English)
