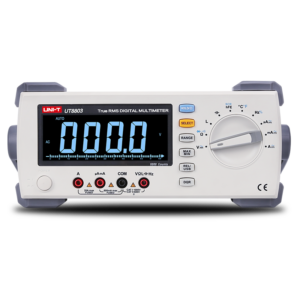

UNI-T UT8803E 3.8 Digit Bench Digital Multimeter
The UNI-T UT8803E is a portable desktop benchtop digital multimeter designed for clarity and ease of use. It features a large screen with a high-contrast, backlit LCD display that presents readings in large characters, making it easy to read even in various lighting conditions. Its intuitive interface and unique aesthetic design cater to both beginners and experienced professionals, ensuring efficient operation in diverse electrical testing environments
This multimeter is engineered for comprehensive electrical measurement, offering true automation with its auto-ranging capability. It delivers reliable performance with a measurement rate of approximately 3 readings per second, ensuring efficient data acquisition. The instrument is equipped with full-range overload protection, safeguarding both the device and the user during operation. Its design emphasizes versatility, allowing it to handle a wide array of electrical parameters without the need for constant manual adjustment
Beyond basic measurements, the UT8803E supports advanced functions like statistical value tracking (min/max) and reference value mode for deviation analysis. It also offers remote viewing capabilities when connected to a PC via its USB interface, enabling users to monitor data and trends in real-time from a distance. This combination of local and remote operation makes it a adaptable tool for modern engineering and research applications
Features:
- True RMS measurement for accurate AC readings.
- Auto-ranging capability for simplified operation.
- Large, backlit LCD display with 5999 counts resolution.
- Measures AC/DC voltage, AC/DC current, resistance, capacitance, inductance, frequency, duty cycle, temperature, diodes, and circuit continuity.
- Triode (hFE) and thyristor (SCR) measurement with included adapter.
- Min/Max value recording and statistical functions.
- Reference value mode for relative measurements.
- D/Q parameter measurement for capacitors and inductors.
- Data logging for up to 20,000 readings.
- USB interface for PC connectivity and remote monitoring.
- Full-range overload protection.
- Supports global mains voltage input
Specifications:
| Parameter | Specification |
|---|---|
| Display: | 3.8 Digit (5999 counts), LCD with backlight |
| DC Voltage: | 600mV to 1000V |
| AC Voltage (True RMS): | 600mV to 750V |
| DC Current: | 600µA to 20A |
| AC Current (True RMS): | 600µA to 20A |
| Resistance: | 600Ω to 60MΩ |
| Capacitance: | 6nF to 60mF |
| Inductance: | 600µH to 100H |
| Frequency: | 600Hz to 20MHz |
| Duty Cycle: | 5% to 95% |
| Temperature: | -40°F to 1832°F (-40°C to 1000°C) |
| Basic DC Voltage Accuracy: | ±(0.3% + 5 digits) |
| Interface: | USB Device |
| Power Supply: | AC Mains (100-240V) |
| Dimensions (L x W x H): | 13 x 5 x 11 in (33 x 12.7 x 27.9 cm) |
| Weight: | 7 lbs (3.18 kg) |
| Certifications: | cETLus, CE, UKCA, RoHS |
Applications:
- Classroom Education.
- Repair and Maintenance.
- Research and Development.
- Production Line Testing.
- Circuit Debugging.
Package Contents:
- 1x Benchtop Digital Multimeter
- 1x Power Cord
- 1x Multimeter Test Leads
- 1x Alligator Clip Short Test Cable (UT-L41)
- 1x K-Type Thermocouple
- 1x Adapter Socket (UT-S03A) for thyristor/triode
- 1x USB Cable
