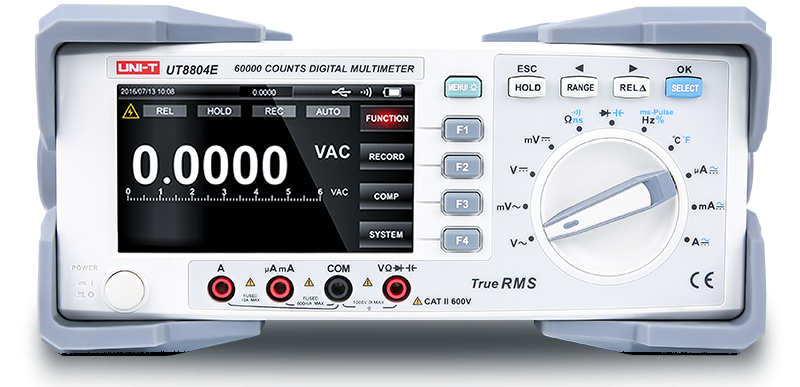

UNI-T UT8804E Digital Multimeter

UT8804E digital multimeter

The UT8804E is a 60 000‑count benchtop digital multimeter designed for high‑precision measurements in R&D labs, quality control and production testing. Its large‑scale integrated A/D converter and microprocessor, paired with thin‑film resistor technology, enable accurate auto‑range measurements across voltage, current, resistance, conductance, capacitance, frequency, pulse width, diode and continuity tests.

A vivid 4.3″ full‑color display presents numeric readouts alongside trend charts, bar graphs and pass/fail indicators. Up to 20 000 readings can be recorded and reviewed with timestamps and extreme‑value statistics. Data hold and simulation bar aid quick interpretation.

Embedded USB‑device connectivity links to PC control software, while TTL‑compatible remote triggers and comparative‑value alarms support automated workflows. A low‑pass filter extends AC measurements to 100 kHz. The unit’s rugged bench form factor, universal mains support and CE/cETLus safety ratings make it suitable for varied lab environments.

Features:

• 60 000‑count resolution.
• True‑RMS AC/DC voltage and current.
• Auto‑range for all functions.
• 4.3″ color display with trend/bar charts.
• Up to 20 000 data records.
• Low‑pass filter (100 kHz).
• Comparison pass/fail alarm.
• Data hold & simulation bar.
• USB‑device interface for PC control.
• TTL trigger I/O.
• CE and cETLus safety certified.

Specifications:

Applications:

• Scientific Research.
• Education.
• Industrial Measurement.
• Electronic Circuit Debugging.
• Device Maintenance.
• Production Line Testing.

Package Contents:

• 2x test lead
• 2x alligator clip test lead
• 2x K-type temperature probe
• 1x power cord
• 1x USB interface wire

UNI-T  UT8804E Documents:

• Datasheet
• User Manual
