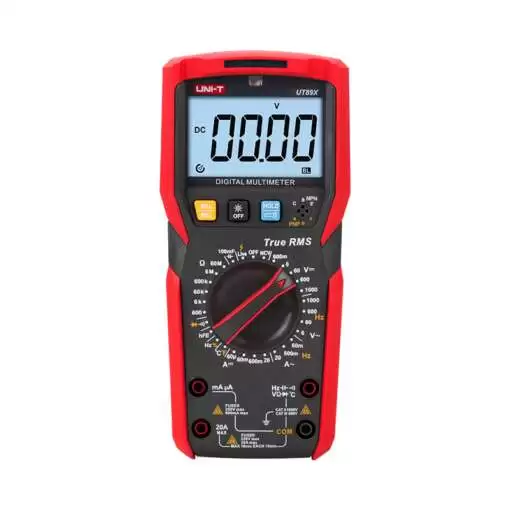

UT89X Series Digital Multimeters
UT89X/UT89XD is a reliable hand-held 3 5/6 bit digital multimeter with true RMS sine wave measurement. It can measure Max. 1000V DC/AC voltage, Max. 20A DC/AC current, resistance, capacitance, frequency, diode, hFE, continuity and NCV, quickly distinguishing between neutral and live wires accurately. UT89X can measure temperature and detect neutral and live wires with a test lead. UT89XD can perform LED test. Equipped with audible and visible alarm, flashlight and auto backlight functions, this series can be used in dark environment. It attracts users with its bi-color durable case, modern exterior and multiple functions.
Features of UT89X Series Digital Multimeters
- 1000V AC/DC； 20A AC/DC
- True RMS, 6000 count
- Dual range NCV test which quickly identifies neutral and live wires through light intensity
- Audible/visual alarm
- Capacitor charging indicator
- Ergonomic design
- Double injection molding
- 1m drop proof
- Flashlight: Auto backlight
Specifications of UT89X Digital Multimeter
| Specifications | Range | UT89X |
| DC voltage (V) | 600mV/6V/60V/600V/1000V | ±(0.5%+2) |
| AC voltage (V) | 6V/60V/600V/1000V | ±(0.8%+5) |
| DC current (A) | 60μA/60mA/600mA/20A | ±(0.8%+8) |
| AC current (A) | 60mA/600mA/20A | ±(1%+12) |
| Resistance (Ω) | 600Ω/6kΩ/60kΩ/600kΩ/6MΩ/60MΩ | ±(0.8%+3) |
| Capacitance (F) | 100mF | ±(2.5%+20) |
| Frequency (Hz) | 9.999Hz/9.999MHz | ±(0.1%+4) |
| Duty cycle | 0.1%~99.9% | ±(2%+5) |
| Temperature (℃) | -40℃~1000℃ | ±(2%+4) |
| Temperature (℉) | -40℉~1832℉ | ±(2%+8) |
| Live wire test | √ | |
| Audible/visual alarm | V/A/Cap/Diode | Live/hFE/NCV |
| Transistor Hfe | √ | |
| Dual range NCV test | √ | |
| Flashlight | √ | |
| General Characteristics | ||
| Power | 1.5V battery (R03) x 4 | |
| Display | 61mm x 36mm | |
| Product net weight | 345g | |
| Product size | 189mm x 89mm x 53mm | |
