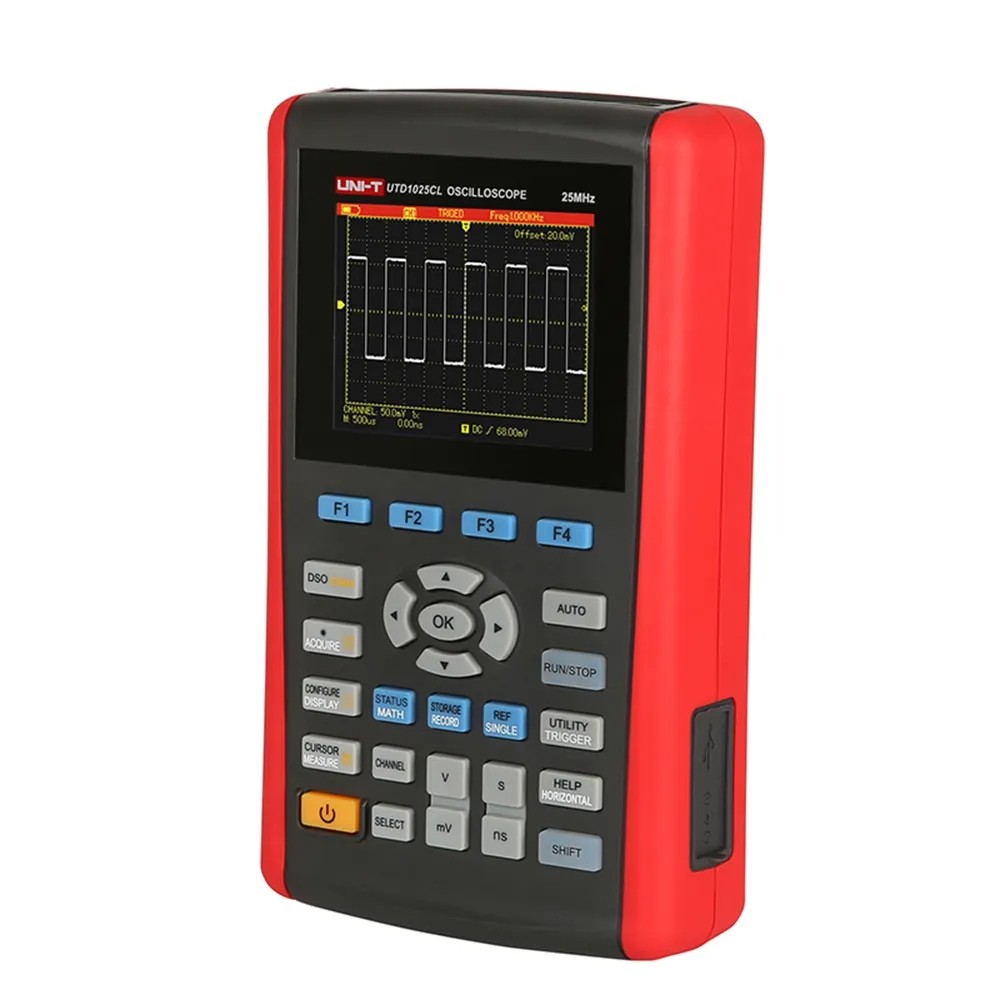

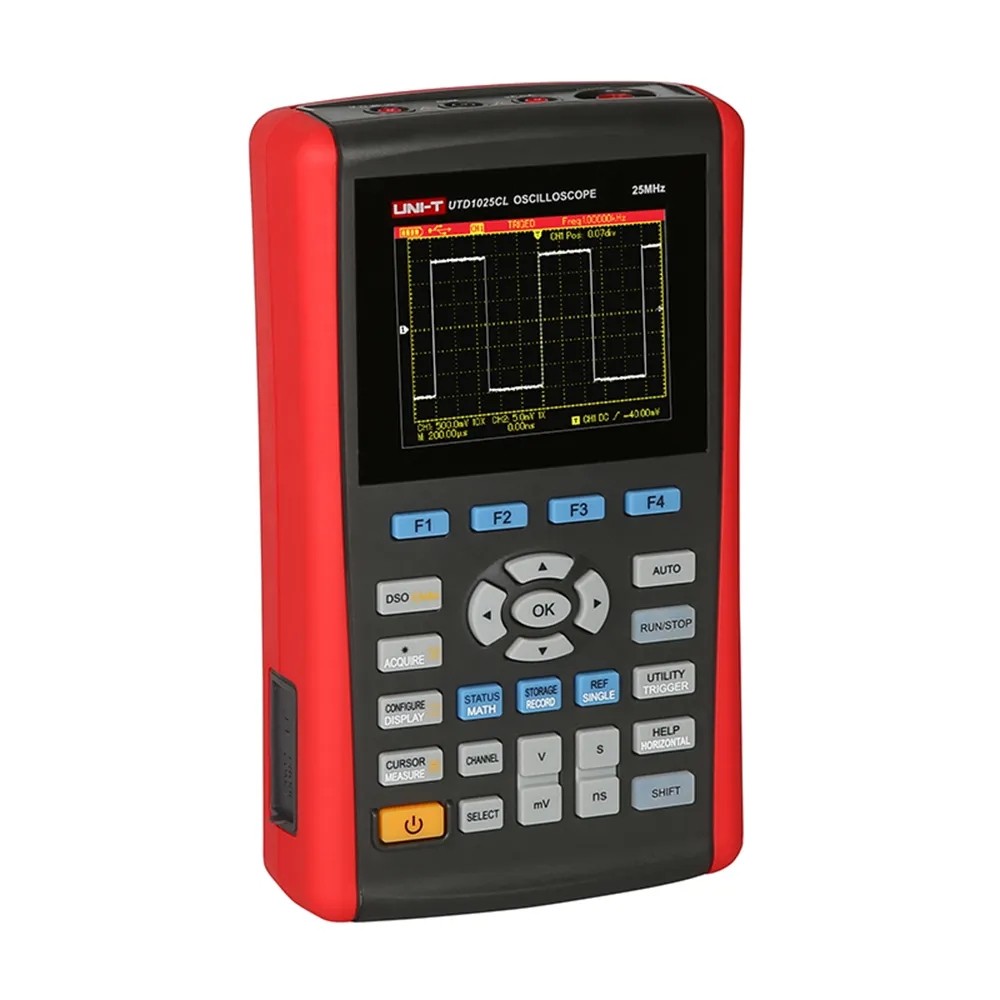

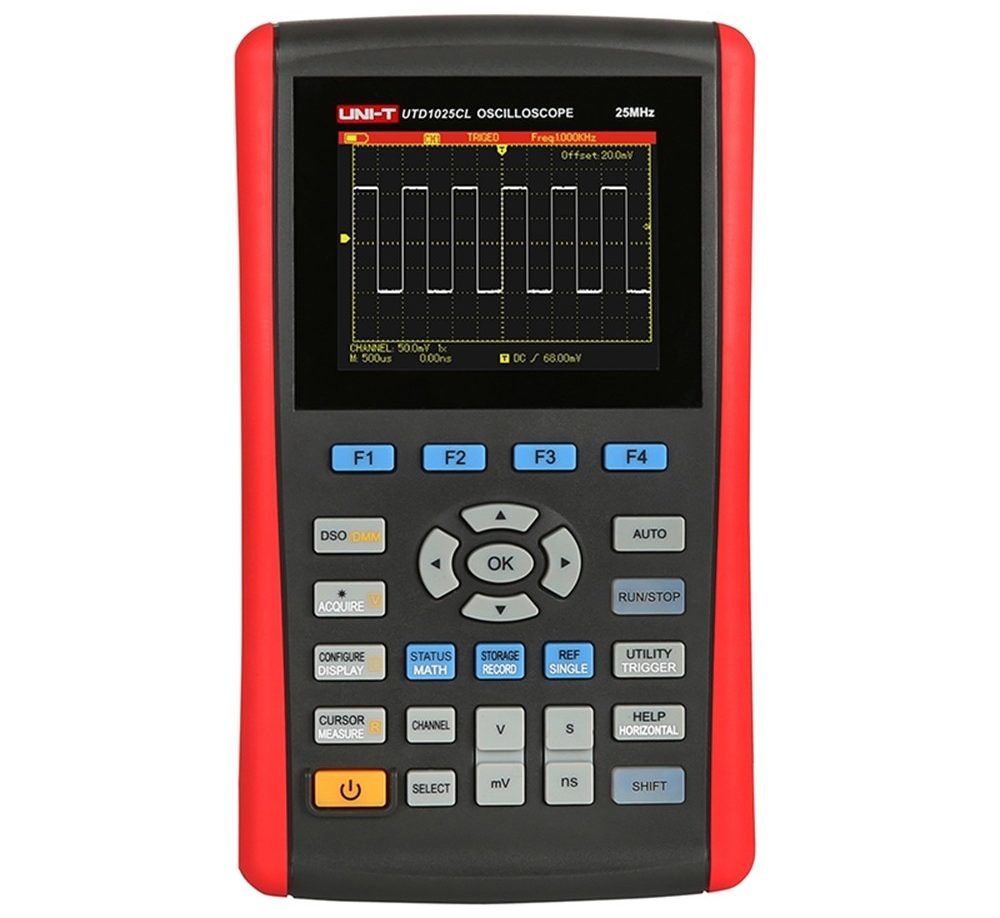

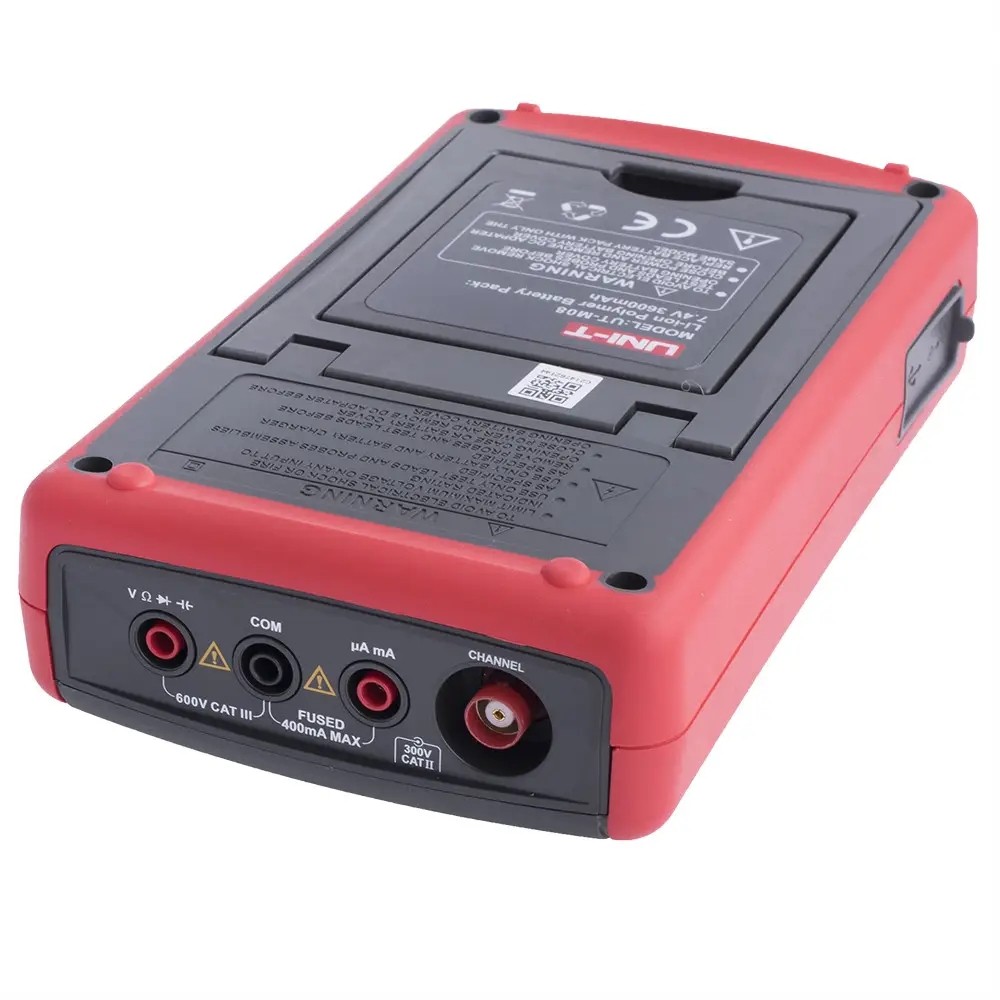

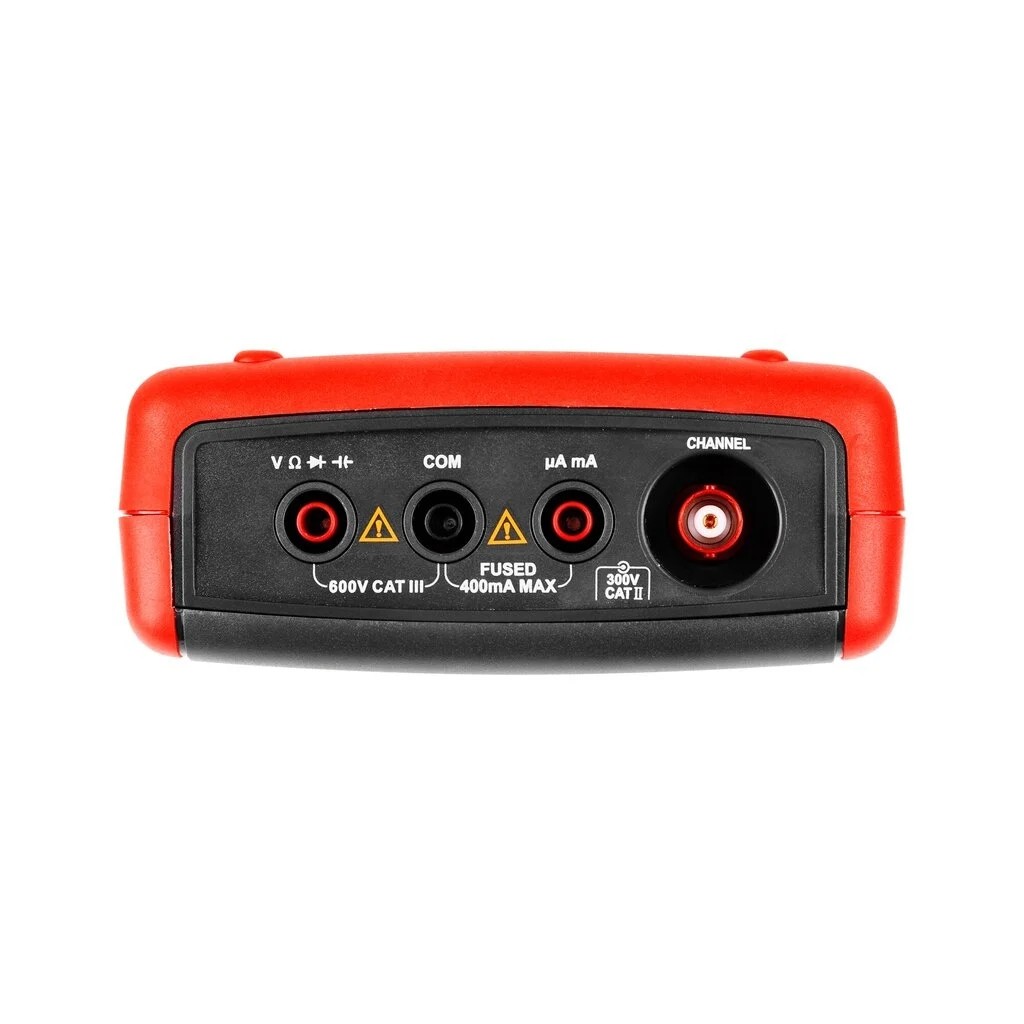

UNI-T UTD1025CL Handheld Oscilloscope
The UNI-T UTD1025CL is a handheld digital storage oscilloscope that integrates single-channel waveform capture with multimeter capabilities in a compact, battery-powered unit. Equipped with a 25 MHz analog bandwidth and 200 MS/s sampling rate, it handles a variety of common signals both in lab and field settings. Its ergonomic front panel features a one-button Auto Setup that automatically adjusts vertical scale, timebase, and trigger for a stable display upon signal connection, streamlining measurements for rapid diagnostics.
The 3.5″ high-contrast TFT LCD ensures clear visibility even in bright environments. Isolated USB connectivity allows safe data transfer to PC and firmware updates. Memory depth supports waveform recording and recall, while 22 auto-measurement types accelerate analysis of parameters such as amplitude, frequency, and rise/fall times. Built-in multimeter functions (voltage, current up to 6 A via UT-M07 module, resistance, capacitance, diode, continuity) eliminate the need for separate instruments.
Modes like Peak Detect capture narrow or transient pulses, and AVG smoothing reduces noise. FFT operation on the single channel provides frequency-domain insight. With up to 8 hours of battery life, multilingual help, and straightforward Printscreen, the UTD1025CL is designed for ease of use, reliable performance, and versatile electronic troubleshooting in educational, maintenance, and portable diagnostic scenarios.
Features:
- Single-channel handheld DSO combined with multimeter functions.
- 25 MHz bandwidth, 200 MS/s real-time sampling rate.
- One-button Auto Setup for automatic vertical/timebase/trigger adjustment.
- High-contrast 3.5″ color TFT display suitable for outdoor use.
- Isolated USB port for safe PC communication and firmware updates.
- Battery operation up to 8 hours for extended portable use.
- 22 types of auto measurements (e.g., Vpp, Vrms, frequency, rise/fall times, pulse width).
- Peak Detect mode for narrow/transient pulse capture and AVG mode for noise reduction.
- FFT operation on the single channel for frequency-domain analysis.
- Built-in multimeter: AC/DC voltage, current (via UT-M07 up to 6 A), resistance, capacitance, diode, continuity.
- Low internal resistance in current measurement for accuracy.
- Waveform record, storage, and recall capabilities.
- Multilingual help and simple Printscreen function.
- Auto Scale (vertical/timebase auto-adjust) and DC autoset for signals with DC offset.
Specifications:
| Specification | UTD1025CL Details |
|---|---|
| Bandwidth: | 25 MHz |
| Sample Rate: | 200 MS/s (real-time) |
| Channels: | 1 |
| Acquisition Modes: | Normal, Peak Detect, AVG (2–256 averages) |
| Input Coupling: | DC, AC, GND |
| Input Impedance: | 1 MΩ ±2% ∥ ~21 pF ±3 pF |
| Probe Attenuation Factors: | 1×, 10×, 100×, 1000× |
| Max. Input Voltage: | 300 V (DC + AC peak, 1 MΩ) |
| Memory Depth / Record Length: | 12 k points / 3 M points |
| Timebase Range: | 10 ns/div – 50 s/div (stepping 1-2-5) |
| Timebase Accuracy: | ±50 ppm (interval ≥1 ms) |
| Vertical Scale Range: | 5 mV/div – 20 V/div |
| Vertical Resolution: | 8-bit |
| Vertical Offset Range: | ±1.2 V at 5 mV/div; ±24 V at 200 mV–1 V/div; ±240 V at 2–20 V/div |
| Rise Time: | ≤14 ns |
| LF Response (AC-coupled): | ≤10 Hz (-3 dB) |
| Trigger Types: | Edge, Pulse Width, Video, Slope |
| Trigger Coupling: | DC, AC, HF Reject (>80 kHz) |
| Trigger Sensitivity: | ≤1 div |
| Hold-Off Range: | 100 ns – 1.5 s |
| Display: | 3.5″ TFT LCD, 320×240 pixels, color/black & white |
| Battery Life: | 8 hours |
| Dimensions / Weight: | 199 × 118 × 49 mm / ~0.9 kg (net) |
| Operating Temperature: | 0 °C – +40 °C |
| Storage Temperature: | -20 °C – +60 °C |
| Humidity: | +10 °C–+30 °C: ≤90%±5% RH; +30 °C–+40 °C: ≤60%±5% RH |
| Altitude: | Operating to 3000 m; non-operating to 5000 m |
| Safety Standards: | IEC61010-1, CAT III 600 V, Pollution Degree II |
Applications:
- Waveform Acquisition and Analysis.
- Field Diagnostics and Signal Troubleshooting.
- Portable Electrical Measurements (Voltage, Current, Resistance).
- Oscilloscope-Based Frequency Spectrum Analysis (FFT).
- Multimeter Testing for Electronic Components.
- Signal Monitoring in Industrial and Educational Settings.
- Transient and Pulse Analysis with Peak Detect.
- Measurement of Signals with DC Offset.
- Noise Filtering and Smoothing with AVG Mode.
- Firmware Updates and PC-Based Data Handling.

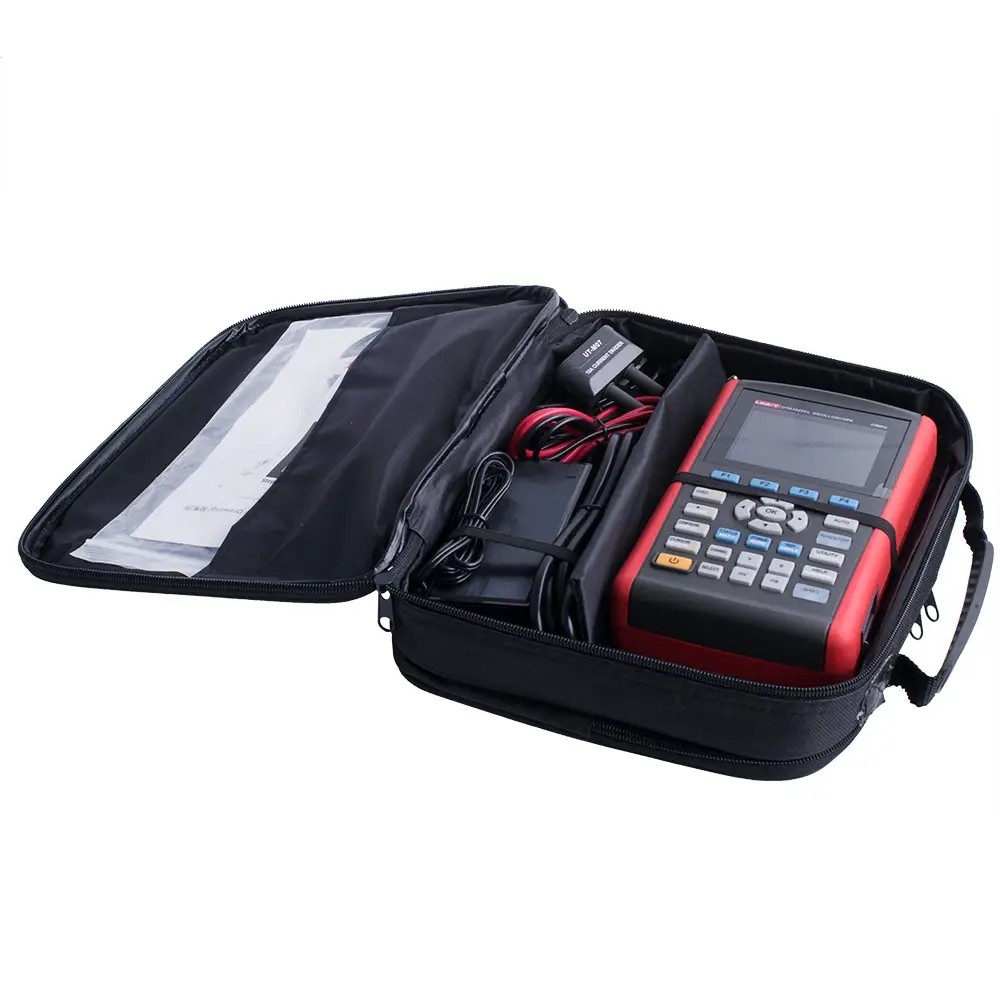

Package Contents:
- 1x Main unit (UTD1025CL oscilloscope)
- 1x Power adaptor
- 1x Passive probe UT-H01 (1×/10×, 25 MHz)
- 2x Multimeter test leads (banana plug, red & black)
- 1x Current divider module UT-M07 (10 A range)
- 1x Oscilloscope probe adjusting tool
- 1x USB communication cable
- 1x Operating Manual
- 1x Software CD
- 1x Carrying bag
