UNI-T UTD1050CL Handheld Oscilloscope
Handheld 50 MHz single-channel DSO with 200 MS/s sampling, built-in multimeter up to 6 A, Auto Setup, FFT, battery-powered for portable diagnostics.
17,500.00 EGP
Buy NowUNI-T UTD1050CL Handheld Oscilloscope
The UNI-T UTD1050CL is a handheld digital storage oscilloscope combining single-channel waveform capture with built-in multimeter functions in a portable form factor. It provides a 50 MHz analog bandwidth and a 200 MS/s real-time sampling rate, suitable for a broad range of signal measurements both in the lab and in the field. Its ergonomic front-panel layout and one-button Auto Setup streamline operations: upon connecting a signal, vertical scale, timebase, and trigger settings adjust automatically for a stable display.
The 3.5″ high-contrast color TFT LCD ensures readability even under bright lighting. Isolated USB connectivity facilitates safe PC communication for data transfer and firmware updates. Memory depth supports waveform recording and recall, while 22 types of auto measurements accelerate parameter analysis. Battery operation (up to 8 hours) enables extended portable diagnostics. The integrated multimeter covers voltage (AC/DC), current (via UT-M07 module up to 6 A), resistance, capacitance, diode, and continuity tests, adding versatility without additional instruments.
Modes like Peak Detect for capturing narrow pulses and AVG for noise reduction help reveal transient or noisy signals. FFT operation on the single channel allows frequency-domain insights. Designed for ease of use and reliability, the UTD1050CL addresses electronics troubleshooting, educational labs, and maintenance tasks efficiently.
Features:
- Single-channel handheld DSO + multimeter in one tool.
- 50 MHz bandwidth with 200 MS/s real-time sampling rate.
- One-button Auto Setup: automatic vertical/timebase/trigger adjustment.
- High-contrast 3.5″ color TFT display with outdoor visibility.
- Isolated USB port for safe PC connectivity and firmware updates.
- Battery operation up to 8 hours for field use.
- 22 auto measurement types (e.g., Vpp, Vrms, frequency, rise/fall times, pulse width).
- Peak Detect mode for capturing narrow pulses and AVG mode for noise reduction.
- FFT operation on single channel for frequency-domain analysis.
- Built-in multimeter: voltage (AC/DC), current (with UT-M07 up to 6 A), resistance, capacitance, diode, continuity.
- Low internal resistance in current measurement for accuracy.
- Waveform record, storage, and recall functions.
- Multilingual help and simple Printscreen function.
- Auto Scale (vertical/timebase auto-adjust) and DC autoset for signals with DC offset.
Specifications:
| Specification | UTD1050CL Details |
|---|---|
| Bandwidth: | 50 MHz |
| Sample Rate: | 200 MS/s (real-time) |
| Channels: | 1 |
| Acquisition Modes: | Normal, Peak Detect, AVG (2–256 averages) |
| Input Coupling: | DC, AC, GND |
| Input Impedance: | 1 MΩ ±2% ∥ ~21 pF ±3 pF |
| Probe Attenuation Factors: | 1×, 10×, 100×, 1000× |
| Max. Input Voltage: | 300 V (DC + AC peak, 1 MΩ) |
| Memory Depth / Record Length: | 12 k points / 3 M points |
| Timebase Range: | 5 ns/div – 50 s/div (stepping 1-2-5) |
| Timebase Accuracy: | ±50 ppm (interval ≥1 ms) |
| Vertical Scale Range: | 5 mV/div – 20 V/div |
| Vertical Resolution: | 8-bit |
| Vertical Offset Range: | ±1.2 V at 5 mV/div; ±24 V at 200 mV–1 V/div; ±240 V at 2–20 V/div |
| Rise Time: | ≤7 ns |
| LF Response (AC-coupled): | ≤10 Hz (-3 dB) |
| Trigger Types: | Edge, Pulse Width, Video, Slope |
| Trigger Coupling: | DC, AC, HF Reject (>80 kHz) |
| Trigger Sensitivity: | ≤1 div |
| Hold-Off Range: | 100 ns – 1.5 s |
| Display: | 3.5″ TFT LCD, 320×240 pixels, color/black & white |

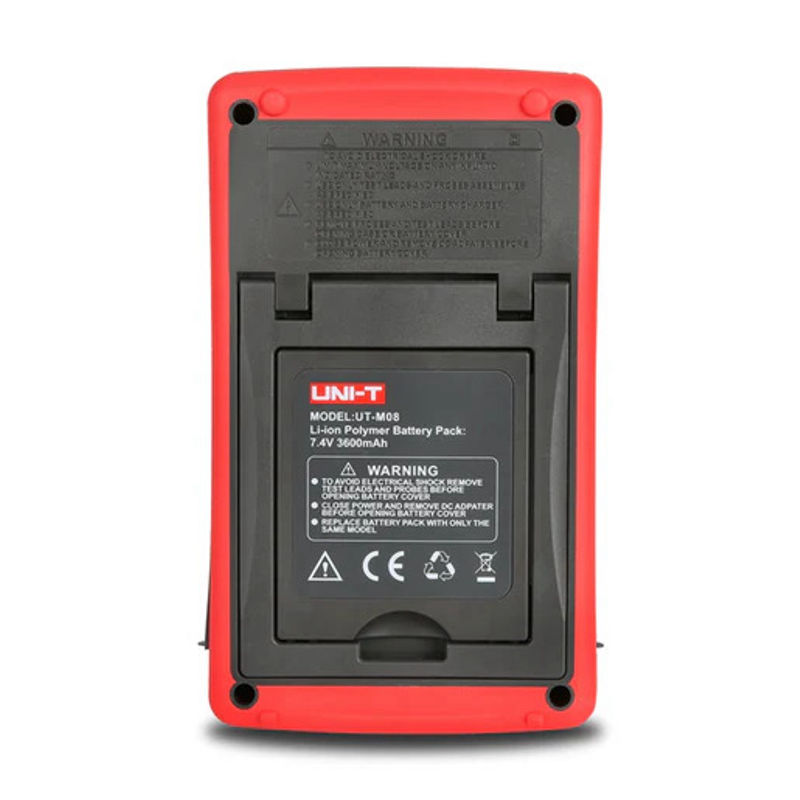

| Battery Life: | ~8 hours |
| Dimensions / Weight: | 199 × 118 × 49 mm / 0.9 kg (net) |
| Operating Temperature: | 0 °C – +40 °C |
| Storage Temperature: | -20 °C – +60 °C |
| Humidity: | +10 °C–+30 °C: ≤90%±5% RH; +30 °C–+40 °C: ≤60%±5% RH |
| Altitude: | Operating to 3000 m; non-operating to 5000 m |
| Safety Standards: | IEC61010-1, CAT III 600 V, Pollution Degree II |
Applications:
- Waveform Acquisition and Analysis.
- Field Diagnostics and Signal Troubleshooting.
- Portable Electrical Measurements (Voltage, Current, Resistance).
- Oscilloscope-Based Frequency Spectrum Analysis (FFT).
- Multimeter Testing for Electronic Components.
- Signal Monitoring in Industrial and Educational Settings.
- Transient and Pulse Analysis with Peak Detect.
- Measurement of Signals with DC Offset.
- Noise Filtering and Smoothing with AVG Mode.
- Firmware Updates and PC-Based Data Handling.
Package Contents:
- 1x Main unit (UTD1050CL oscilloscope)
- 1x Power adaptor
- 1x Passive probe UT-H03 (1×/10×, 60 MHz)
- 2x Multimeter test leads (banana plug, red & black)
- 1x Current divider module UT-M07 (10 A range)
- 1x Oscilloscope probe adjusting tool
- 1x USB communication cable
- 1x Operating Manual
- 1x Software CD
- 1x Carrying bag
UNI-T UTD1050CL Documents:
