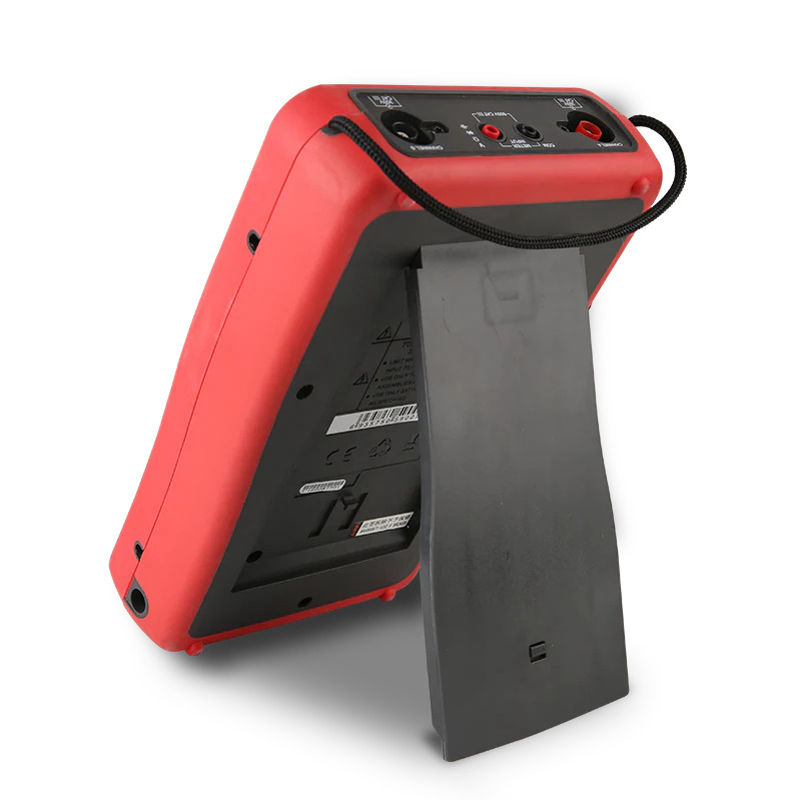

UNI-T UTD1062C Handheld Oscilloscope
The UNI‑T UTD1062C is a compact, dual‑channel handheld digital storage oscilloscope engineered for both field service and laboratory environments. Sporting a vibrant 5.7″ color LCD with 320×240‑pixel resolution, it delivers clear waveform visibility even under bright lights. Its user‑friendly front panel mimics traditional bench instruments, featuring a jog dial and dedicated buttons for rapid access to vertical, horizontal, and trigger controls, minimizing learning curve and maximizing productivity.
The AUTO key instantly adjusts vertical sensitivity and time base for stable captures, while dedicated menus guide through advanced setups like cursors, FFT, and math functions. With a 60 MHz analog bandwidth and 250 MS/s real‑time sampling rate, the UTD1062C accurately reproduces most common signals. A deep 2×512 k‑point memory enables detailed zoom and post‑capture analysis. USB Host/Device ports allow screen captures and waveform storage (10 internal + 10 USB slots), and built‑in waveform recording can archive up to 1,000 screens.
Additional conveniences include automatic measurements of 27 waveform parameters, fine window extension, and both edge and pulse‑width triggering. Its robust battery operation (≈3 h) and rugged housing ensure reliable performance on‑the‑go a versatile tool for service technicians and engineers alike.
Features:
- Dual input channels with 5 mV/div to 50 V/div sensitivity.
- Wide 60 MHz bandwidth and 250 MS/s sampling.
- AUTO setup for one‑button waveform optimization.
- 27 automatic waveform measurements (Vpp, rise time, frequency, etc.).
- FFT with Hanning, Hamming, Blackman, and Rectangular windows.
- Fine zoom (window extension) for detailed waveform analysis.
- Waveform recording (up to 1,000 screens) and replay.
- USB Host & Device for saving screens and waveforms.
- Built‑in multimeter functions (V, I, R, continuity, diode, capacitance).
- Edge, pulse‑width, video, and alternate triggering.
- 5.7″ HD color display (320×240 pixels).
- Battery‑powered (≈3 hours) for field use.
Specifications:
| Specification | Detail |
|---|---|
| Model: | UTD1062C |
| Bandwidth: | 60 MHz |
| Real‑time Sampling Rate: | 250 MS/s |
| Equivalent Sampling Rate: | 25 GS/s |
| A/D Resolution: | 8‑bit |
| Channels: | 2 |
| Vertical Sensitivity: | 5 mV/div – 50 V/div |
| Vertical Displacement Range: | ±10 div |
| Input Coupling: | DC, AC, GND |
| Input Impedance: | 1 MΩ ±2% ∥ 21 pF ±3 pF |
| Probe Attenuation: | 1X, 10X, 100X, 1000X |
| Max Input Voltage: | 400 V (DC + AC peak) |
| Horizontal Timebase: | 5 ns/div – 50 s/div |
| Memory Depth: | 2×512 k points |
| Display: | 5.7″ TFT LCD, 320×240 pixels (color) |
| Trigger Types: | Edge, Pulse, Video, Alternate |
| USB Interface: | USB Host & Device |
| Waveform Storage: | 10 internal, 10 USB |
| Battery Life: | 3 hours (UTD1062C) |
| Dimensions: | 268×168×60 mm |
| Weight (Net): | 1.8 kg |
Applications:
- Electronics R&D.
- Field Service Diagnostics.
- Educational Laboratories.
- Automotive Electronics Testing.
- Power Supply Analysis.
- Embedded System Debugging.
Package Contents:
- 1x Oscilloscope unit
- 2x Passive voltage probes 1:1/10:1
- 1x DC power adapter
- 1x Test lead
- 2x Current‑to‑voltage converters UT‑M03/UT‑M04
- 1x USB cable
- 1x International power cord
- 1x User manual
