Introduction
The New UTD2000CL series is an economical desktop digital storage oscilloscope that meets the key requirements of basic measurement. The simple and clear front panel design is more convenient for users to operate. UTD2000CL series is equipped with 70MHZ/150MHz bandwidth, the real-time sampling rate is 500MS/s, 2 models are provided with dual channels, standard storage depth is 64kpts
Features
- 70MHz/150MHz bandwidth
- 2 channels, low noise floor, wide vertical range: 1mV/div~20V/div
- Memory depth: 64kpts
- System software upgrade via USB drive
- 7 inches TFT LCD
- Supports plug-and-play USB storage device, communication with and remote control of the computer through the USB device

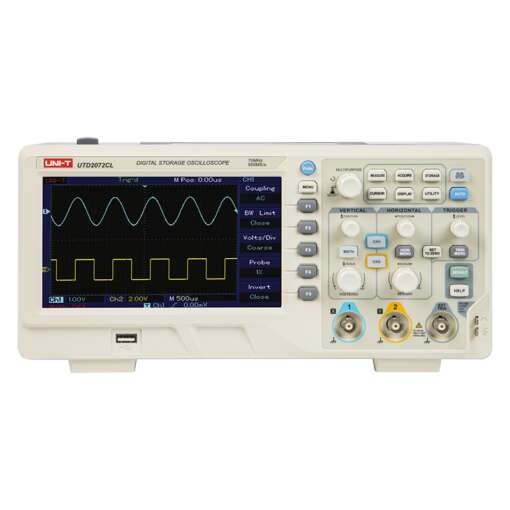

UTD2072CL Digital storage oscilloscope
| Specifications | |
| model | UTD2072CL |
| Channels | 2 |
| Bandwidth | 70MHz |
| Sampling rate | 500MS/s |
| Rise time | <5ns |
| Memory depth | 64kpts |
| Waveform capture rate | >5,000wfms/s |
| Vertical scale (V/div) | 1mV/div~20V/div |
| Time base scale (s/div) | 2ns/div~50s/div |
| Timing accuracy | ≤ ±（50+2 × service life ）ppm |
| Time base mode | Y-T、X-Y、Roll |
| Storage methods | Setup, wave, bitmap |
| Trigger types | Edge, Pulse, Slope, video, alternate |
| Mathematical operations | ＋, －, ×, ÷, FFT |
| Auto measurements | Max, Min, High, Low, Ampl, Pk-Pk, Middle, Mean, CycMean, RMS, C ycRMS, Period, Freq, Rise, Fall, RiseDelay, FallDelay, +Width, -Width, +Duty, -Duty,(UTD2052/25CL)FRR, FRF, FFR, FFF, LRF, LRR, LFR, LFF, Area, CycArea, OverSht, PreSht, Phase, 34 parameters in total |
| Displayed measurements | Display 5 measurements at the same time |
| Frequency counter | 6 bits |
| Interface | USB OTG, Pass/Fail |
| General Characteristics | |
| Power | 100-240VAC, 45-440Hz |
| Display | 7 inches TFT LCD, 800×480 |
| Product Color | White and grey |
| Product net weight | 2.5kg |
| Product size | 306mm×138mm×124mm |
