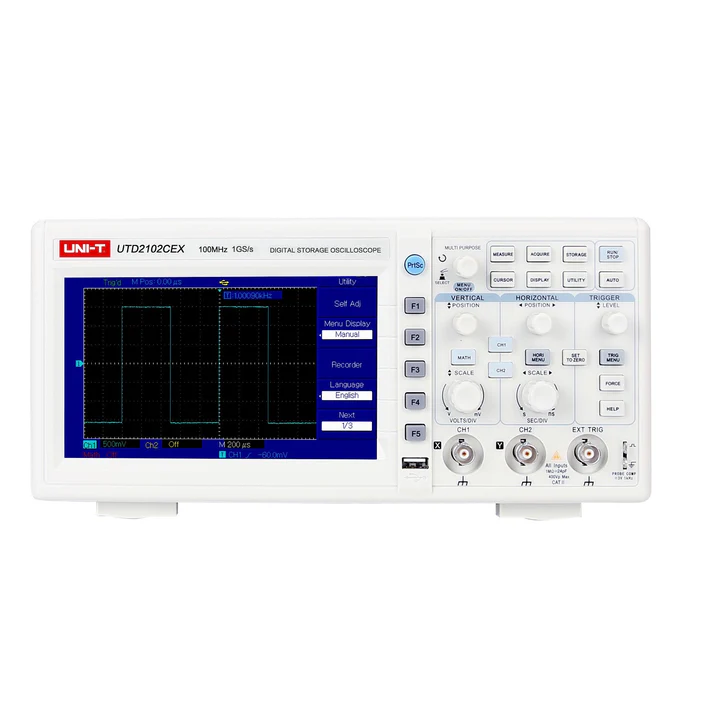

UNI-T UTD2102CEX+ Digital Storage Oscilloscope 100MHz 2 Channel
The UNI-T UTD2102CEX+ Digital Storage Oscilloscope is a versatile and user-friendly instrument designed to meet the needs of both professionals and educators in the field of electrical engineering. With a bandwidth of 100 MHz and dual analog channels, it offers reliable performance for a wide range of applications.
Equipped with a 7-inch TFT LCD display, the oscilloscope provides a clear and detailed view of waveforms, facilitating accurate analysis. Its intuitive interface ensures ease of use, making it suitable for both beginners and experienced users. The device’s compact design allows for convenient placement on workbenches, optimizing workspace utilization.
In summary, the UNI-T UTD2102CEX+ Digital Storage Oscilloscope combines functionality, ease of use, and compact design, making it a valuable tool for professionals and educators seeking reliable waveform analysis capabilities.
Features:
- 100MHz bandwidth
- 2channels, low noise floor, wide vertical range: 1mV/div~20V/div
- Memory depth: 64kpts
- System software upgrade via USB drive
- 7-inch TFT LCD
- Supports plug-and-play USB storage device; communication with and remote control of the computer through the USB device
Technical Specifications:
| Key Specifications | UTD2102CEX+ |
| Bandwidth | 100MHz |
| Channels | 2 |
| Sampling rate | 1GSa/s |
| Memory depth | 64kpts |
| Waveform capture rate | 5, 000wfms/s |
| Rise time | <3.5ns |
| Vertical scale (V/div) | 1mV/div~20V/div |
| Vertical resolution | 8bit |
| Time base scale (s/div) | 2ns/div~50s/div |
| Deviation from scope | ±8div(away from screen center) |
| Input impedance | 1MΩ±2% ,18±3pF |
| Input coupling | DC, AC, GND |
| Timing accuracy | ≤± (50+2 × service life )ppm |
| Time base mode | Y-T, X-Y Roll |
| Storage methods | Setup, wave, bitmap |
| Trigger types | Edge, pulse, alternate, slope, video |
| Mathematical operations | ＋ ,－ , ×, ÷, FFT |
| Auto measurements | Max, Min, High, Low, Ampl, Pk-Pk, Middle, Mean, CycMean, RMS, C ycRMS, Period, Freq, Rise, Fall, RiseDelay, FallDelay, +Width, -Width, FRR, FRF, FFR, FFF, LRF, LRR, LFR, LFF, +Duty, -Duty, Area, CycArea, OverSht, PreSht, Phase, 34 parameters in total |
| Displayed measurements | Display 5 measurements at the same time |
| Frequency counter | 6 bits |
| Interface | USB Host, USB Device, Pass/Fail |
| Power | 100-240VAC, 45-440Hz |
| Display | 7-inch TFT LCD, 800×480 |
| Product Color | White and grey |
| Product net weight | 2.5kg |
| Product size (W×H×D) | 306mm×138mm×124mm |
Applications:
- Signal Analysis and Troubleshooting.
- Educational Demonstrations.
- Research and Development.
- Maintenance and Repair.
- Automotive Diagnostics.
Package Contents:
- 1× UNI-T UTD2102CEX+ Digital Storage Oscilloscope
- 2× Passive Probes (1×/10× switchable)
- 1× Power Cable
- 1× USB Cable
- 1× User Manual
