UNI-T UTG2122B Waveform Generator
The UNI‑T UTG2122B Waveform Generator is a precision bench instrument that employs direct digital synthesis (DDS) to deliver stable, low‑distortion signals across a wide frequency range. Offering dual independent channels, it supports sine, square, ramp, pulse, noise, arbitrary, harmonic, and expression‑defined waveforms with full‑band resolution down to 1 μHz. With a sampling rate of 1.28 GSa/s and 16‑bit vertical resolution, it achieves sine‑wave outputs up to 120 MHz, square and pulse outputs up to 30 MHz, and ramp outputs to 5 MHz.

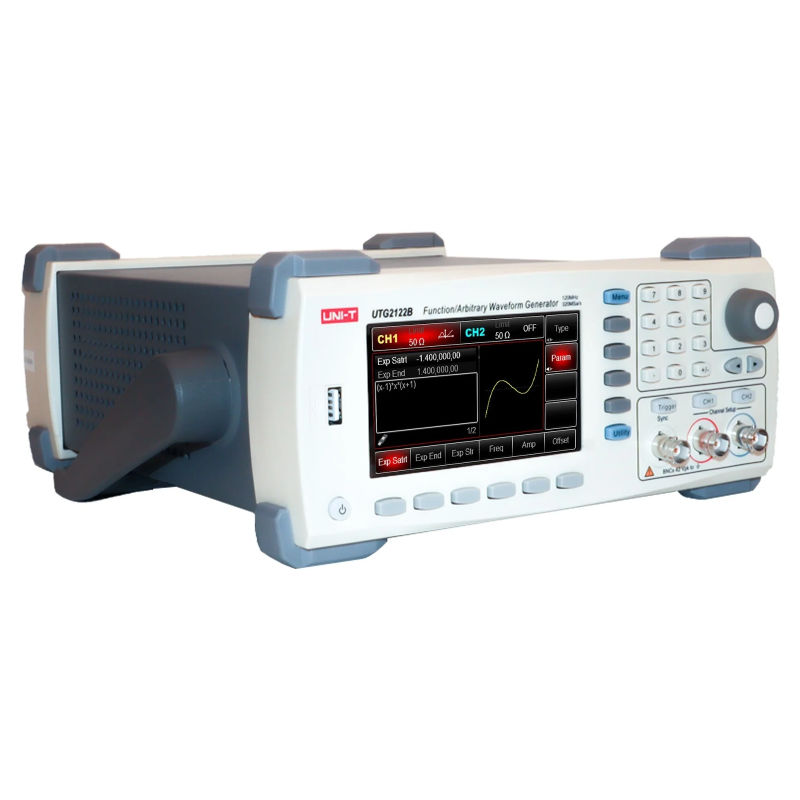

The front panel’s 4.3″ TFT color display and intuitive knob‑and‑key interface streamline setup, while USB Host/Device, LAN, and 10 MHz I/O facilitate integration into automated test systems. Advanced features include built‑in burst, sweep, and 18‑function expression modes, plus rich modulation capabilities (AM, FM, PM, ASK, FSK, PSK, BPSK, QPSK, OSK, SUM, DSBAM, QAM, PWM). Nonvolatile memory stores up to 200 waveforms (8–16 M points), and a USB flash drive slot supports up to 32 GB external storage.
Housed in a compact 305 × 230 × 93 mm chassis with forced‑air cooling, it meets CAT II safety standards and operates from 100–240 VAC. Ideal for R&D, education, and production, the UTG2122B balances high performance with user‑friendly design.
Features:
- Dual‑channel independent output.
- 1.28 GSa/s sampling rate, 16‑bit vertical resolution.
- Sine up to 120 MHz; square/pulse up to 30 MHz; ramp up to 5 MHz; full‑band 1 μHz resolution.
- 18‑function expression generator (max length 160 chars).
- Arbitrary waveform memory: 8–16 M points, 200 profiles (up to 20 MB internal or 32 GB external).
- Rich modulation: AM, FM, PM, ASK, FSK, PSK, BPSK, QPSK, OSK, SUM, DSBAM, QAM, PWM.
- Burst, sweep, gating, and continuous modes.

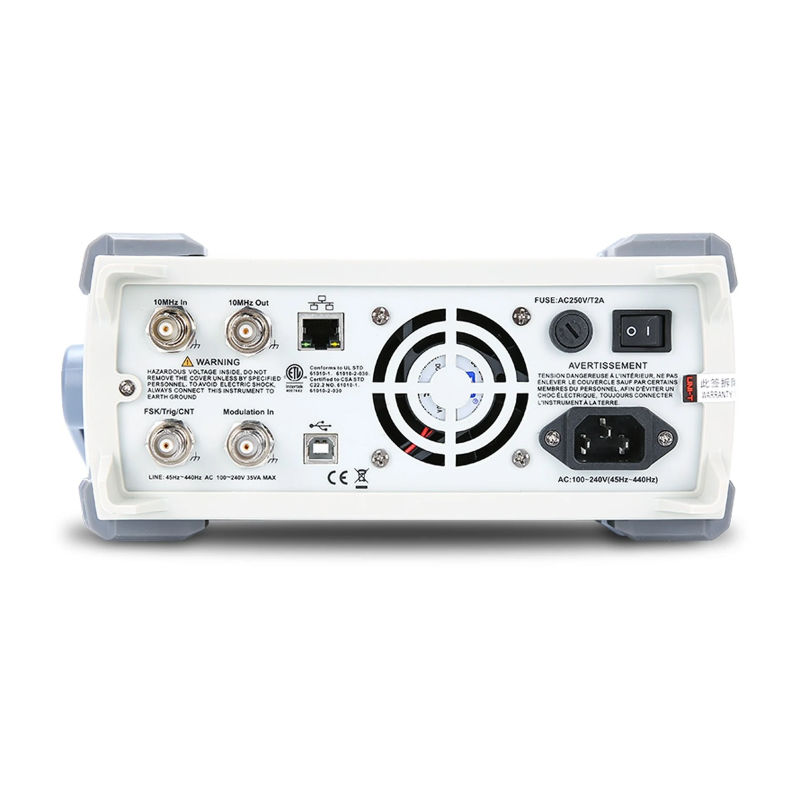

- 4.3″ TFT color display; USB Host/Device, LAN, 10 MHz I/O.
- Intuitive knob and numeric keypad interface.
- Compact 305 × 230 × 93 mm chassis, 3.10 kg net, forced‑air cooling.
- Meets CAT II safety, 100–240 VAC operation.
Specifications:
| Parameter | UTG2122B |
|---|---|
| Max Frequency: | 120 MHz |
| Sampling Rate: | 1.28 GSa/s (320 MSa/s × 4 interpolation) |
| Waveform Types: | Sine, Square, Ramp, Pulse, Noise, Arbitrary, Harmonic, Expression |
| Frequency Range (Sine): | 1 μHz–120 MHzResolution 1 μHzAccuracy ±0.5 ppm |
| THD (DC–20 kHz, 1 Vpp): | < 0.2% |
| Square/Pulse Rise‑Fall Time: | < 11 ns (typ.) |
| Duty‑Cycle Range: | 0.001%–99.999% |
| Burst Mode: | Count (1–1,000,000), Infinite, Gated |
| Sweep Type/Time: | Linear/Logarithmic, 1 ms–500 s ± 0.1% |
| Modulation: | AM, FM, PM, ASK, FSK, PSK, BPSK, QPSK, OSK, SUM, DSBAM, QAM, PWM |
| Display: | 4.3″ TFT, 480×272 |
| Power: | 100–240 VAC, 45–440 Hz, < 50 W; Fuse 2 A T |
| Env. Conditions: | 10–40 °C operating; –20–60 °C storage; ≤ 90% RH |
| Dimensions & Weight: | 305×230×93 mm; Net 3.10 kg; Gross 4.10 kg |
Applications:
- Education and Training.
- Electronic Circuit Testing.
- R&D in Communication Systems.
- Signal Simulation.
- Audio Equipment Testing.
- Embedded System Development.
- Industrial Product Testing.
- Scientific Research.
- Medical Equipment Testing.
- Sensor and Actuator Evaluation.
Package Contents:
- 1x Power line (to local standard)
- 1x USB data cable
- 1x BNC‑to‑BNC cable (1 m)
- 1x BNC‑to‑alligator‑clip cable (1 m)
- 1x User CD
- 1x Product warranty card
- 1x User manual
