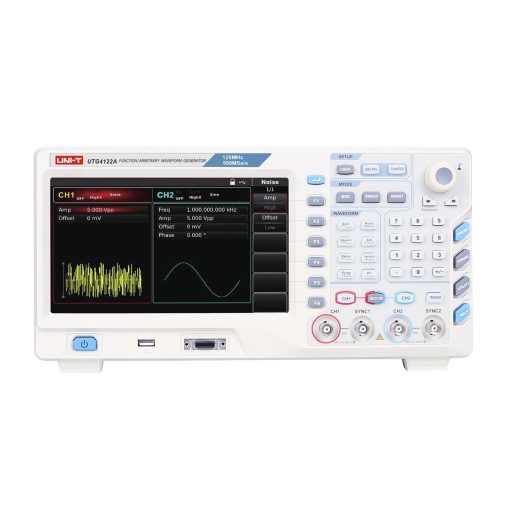

UNI-T UTG4122A Waveform Generator
The UNI-T UTG4122A is a dual-channel function/arbitrary waveform generator offering up to 120 MHz sine output and 500 MSa/s sampling for high-fidelity signal generation. Based on Direct Digital Synthesis (DDS), it provides stable, low-distortion waveforms with 1 µHz resolution, making it suitable for both laboratory and field environments. The upright design includes an 8″ TFT LCD with intuitive front-panel controls multifunction knob, soft keys, numeric keypad, and directional keys streamlining waveform configuration and parameter adjustment.
Each channel supports continuous, modulation, sweep (linear/log), and burst modes, with 32 Mpts memory depth and 16-bit vertical resolution enabling precise arbitrary waveform playback. Standard waveforms include sine, square/pulse, ramp, harmonic, noise, DC, and arbitrary, covering frequency ranges from 1 µHz to 120 MHz for sine and up to 40 MHz for square/pulse on this model. Rich modulation options (AM, FM, PM, ASK, FSK, PSK/BPSK/QPSK, OSK, PWM, SUM, QAM) facilitate communications testing. Additional functions such as TTL-level digital protocol outputs (I2C, SPI, UART), frequency counter, external/internal 10 MHz reference I/O, and LAN/USB interfaces for remote control and waveform upload enhance versatility. Ergonomic layout and context-sensitive help aid usability.
The UTG4122A’s design targets R&D, education, maintenance, and automated test systems requiring reliable, flexible signal emulation.
Features:
- Dual independent channels with equivalent performance for simultaneous outputs.
- DDS-based signal generation up to 120 MHz sine with 1 µHz resolution.
- 500 MSa/s sampling and 16-bit vertical resolution for high-fidelity arbitrary waveforms.
- 32 Mpts memory depth per channel for lengthy arbitrary waveform playback.
- Standard waveforms: sine, square/pulse, ramp, harmonic, noise, DC, and arbitrary.
- Multiple modes: continuous, modulation, sweep (linear/log), burst/pulse train.
- Comprehensive modulation suite: AM, FM, PM, ASK, FSK, PSK/BPSK/QPSK, OSK, PWM, SUM, QAM.
- TTL-level digital protocol output: I2C, SPI, UART for embedded system stimulus.
- Built-in frequency counter handling 100 mHz–800 MHz signals.
- External/internal 10 MHz reference I/O for synchronization across instruments.
- LAN and USB Host/Device interfaces for remote control, waveform upload, and data transfer.
- High-resolution 8″ TFT LCD with context-sensitive help and soft keys for ease of operation.
- Ergonomic controls: multifunction knob, numeric keypad, directional keys for fast parameter entry.
- Frequency sweep and burst functionality with internal/external trigger options.
- Upper-computer software support for arbitrary waveform creation and editing.
- Three-year warranty (excluding accessories).
Specifications:
| Specification | UTG4122A Details |
|---|---|
| Channels: | 2 |
| DDS Resolution: | 1 µHz |
| Sampling Rate: | 500 MSa/s |
| Vertical Resolution: | 16-bit |
| Memory Depth: | 8 points – 32 Mpoints per channel |
| Waveform Types: | Sine, Square/Pulse, Ramp, Harmonic, Noise, DC, Arbitrary |
| Frequency Ranges: | Sine: 1 µHz – 120 MHz; Square/Pulse: 1 µHz – 40 MHz; Ramp: 1 µHz – 3 MHz; Harmonic: 1 µHz – 50 MHz; Noise bandwidth: 120 MHz (–3 dB) |
| Noise Bandwidth: | 120 MHz (–3 dB) |
| Rise/Fall Time (typical): | <6 ns |
| Modulation Types: | AM, FM, PM, ASK, FSK, PSK/BPSK/QPSK, OSK, PWM, SUM, QAM |
| Sweep Modes: | Linear, Logarithmic |
| Burst/Pulse Train: | Configurable period, count, gating, trigger source |
| Protocol Output: | TTL-level I2C, SPI, UART |
| Frequency Counter Range: | 100 mHz – 800 MHz |
| Reference I/O: | 10 MHz input/output |
| Interfaces: | USB Host (≤32 GB), USB Device, LAN |
| Display: | 8″ TFT LCD WVGA (800×480) |
| Dimensions: | 336 × 164 × 108 mm |
| Weight: | 3.5 kg |
| Power Input: | 100 V – 240 V AC, 50/60 Hz |
| Operating Temperature: | 0 °C – 40 °C |
| Storage Temperature: | –20 °C – 60 °C |
| Safety/Certifications: | IEC61010-1, CAT II 300 V, CE/UKCA/cTUVus |
Applications:
- Signal Emulation in R&D Environments.
- Communication Modulation and Demodulation Testing.
- Frequency Sweep and Filter Characterization.
- Arbitrary Waveform Playback for Device Testing.
- Educational Lab Demonstrations and Experiments.
- Embedded System Stimulus and Digital Protocol Generation.
- Burst/Pulse Train Generation for Timing Verification.
- Multi-Instrument Synchronization via 10 MHz Reference.
- Noise Injection and Distortion Analysis.
- Automated Test Systems with LAN/USB Remote Control.
Package Contents:
- 1x Main unit (UTG4122A waveform generator)
- 1x Power cord (to local standard)
- 1x USB interface cable (UT-D14)
- 2x BNC cables (1 m)
- 1x User CD (software, manual)
- 1x Product warranty card/documentation
