UNI-T UTi220k EST Thermal Camera

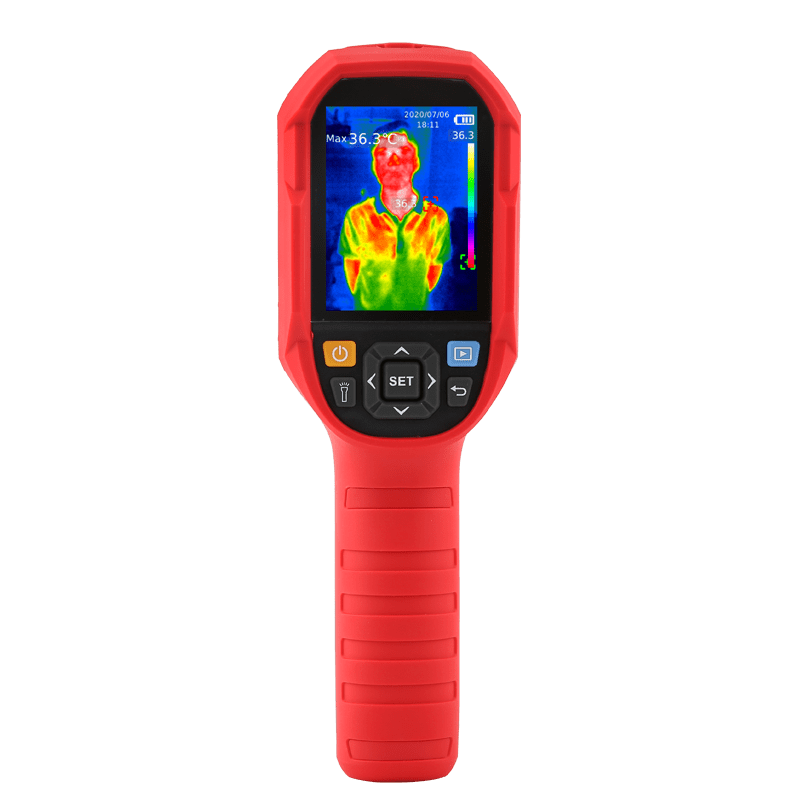

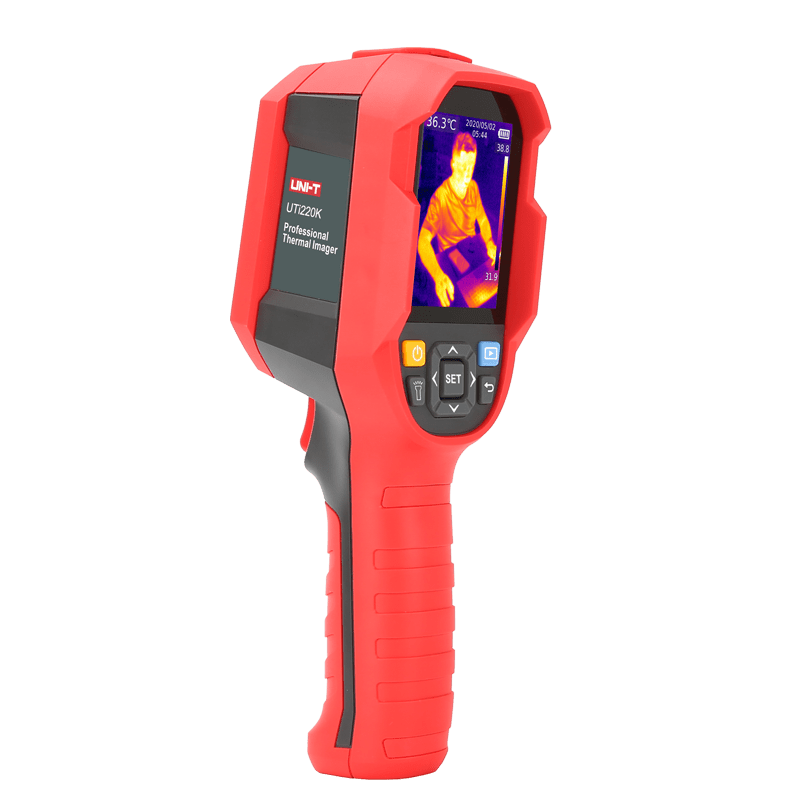

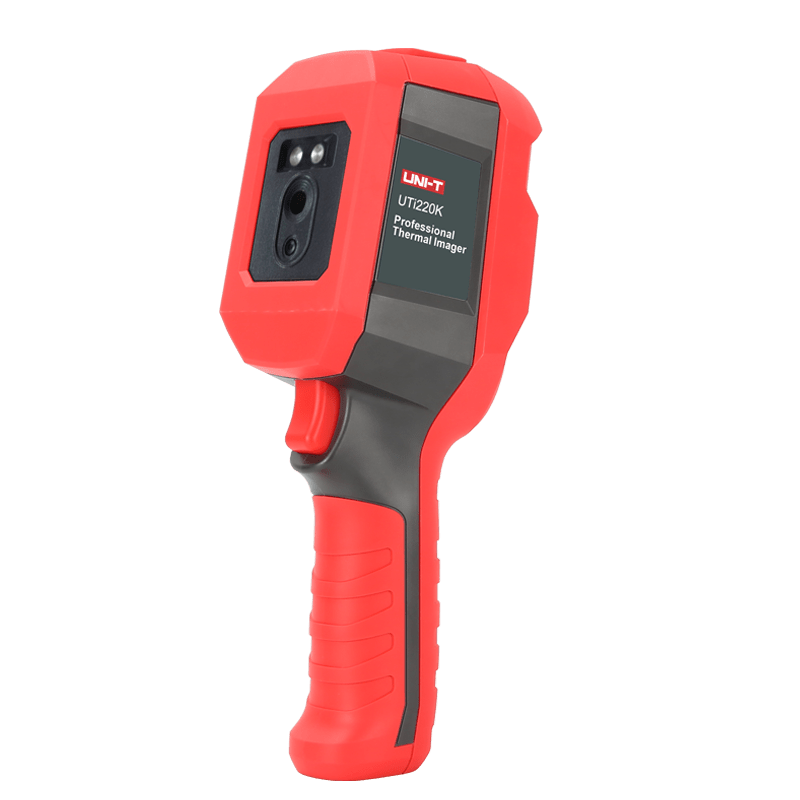

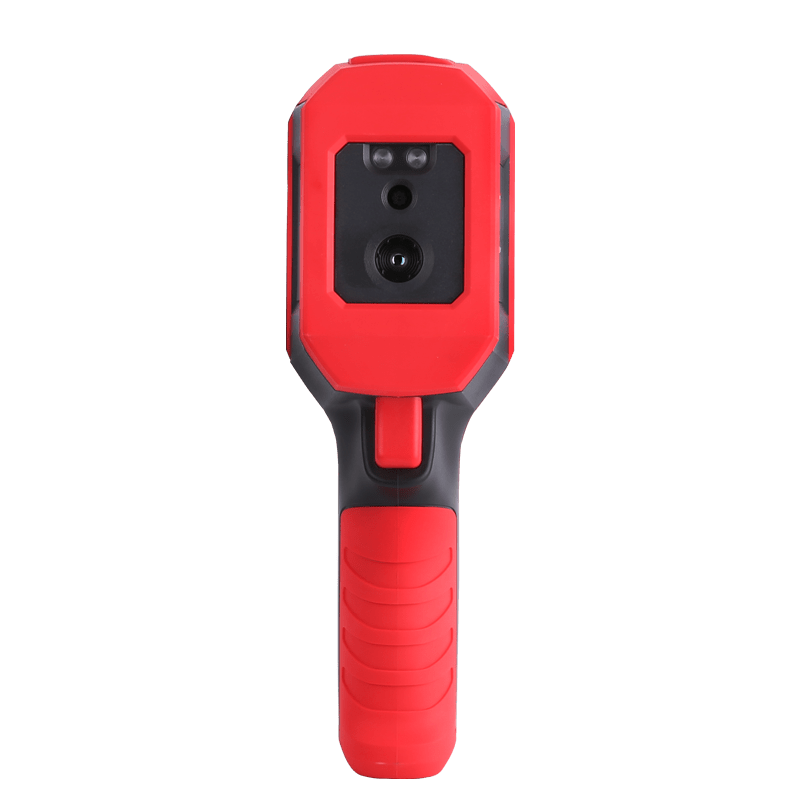

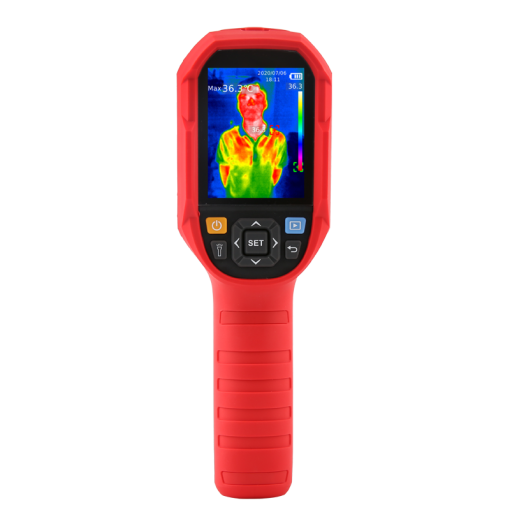

The UNI-T UTi220K EST thermal camera is a purpose-built, handheld thermal imager designed for rapid surface-temperature screening in public and industrial settings. Its compact body and integral display present thermal images and temperature readouts in real time, allowing operators to quickly identify elevated skin or surface temperatures and take action. The unit balances portability with the reliability expected from professional UNI-T thermal products.
Internally the UTi220K uses an uncooled infrared detector and on-board processing to convert thermal flux into an image and temperature measurement. The instrument is tuned for a narrow elevated-temperature measurement window (typical for EST/fever-screening use), and provides color palettes, image overlay/fusion and on-screen alarms for quick visual reading. The device also supports image capture and PC connectivity for archiving and analysis.

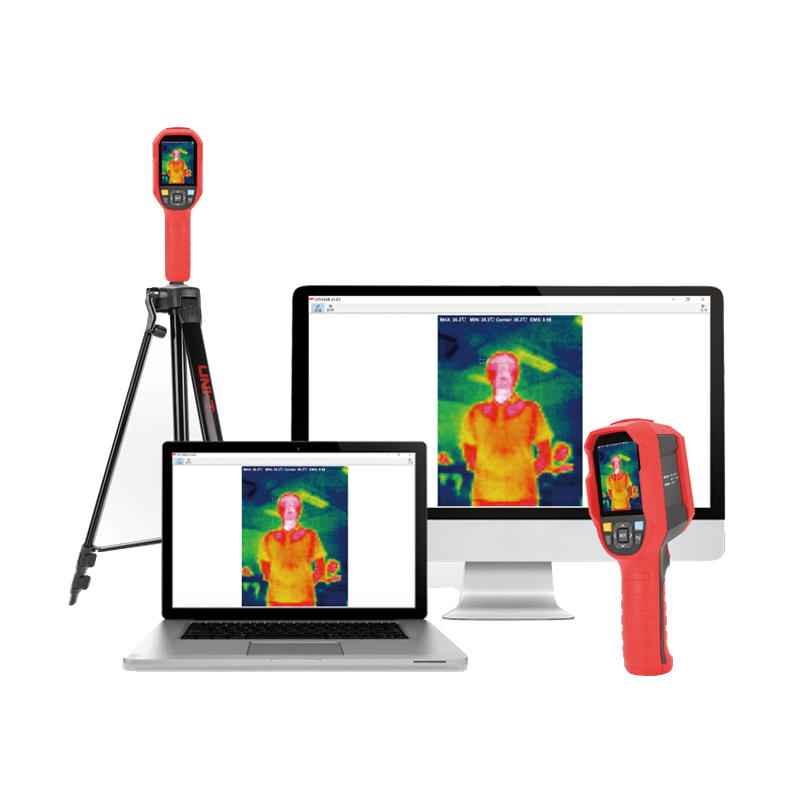

Designed to be used at checkpoints, entrances, clinical prelim screens or in-plant safety stations, the UTi220K emphasizes measurement speed, ease of use and repeatability. Its screw-mount/tripod capability and software tools let teams set up semi-permanent screening stations; its ruggedized housing makes it practical for continuous daily screening in busy public locations.
Features:
- Real-time thermal imaging and temperature readout for elevated-skin screening.
- Multiple color palettes and image fusion/overlay modes.
- Visual + thermal image capture and on-device storage / PC transfer.
- Audible/visual high-temperature alarm (LED + buzzer).
- Tripod mount (1/4″) for hands-free checkpoint use.
- USB-C (or USB) interface for real-time video/PC analysis and data export.
- Compact handheld design for rapid deployment.
Specifications:
| Parameter | Value |
|---|---|
| IR (thermal) resolution: | 200 × 150 (typical model |
| Display: | 2.8″ TFT LCD (320 × 240) (typical) |
| Field of view (FOV): | ~35° × 26° |
| Thermal sensitivity (NETD) : | ≤100 mK (typical) |
| Frame rate: | ≤9 Hz (typical) |
| Spectral range: | 8–14 µm |
| Measuring (screening) range: | 30 °C – 45 °C (86–113 °F) (est. for EST models) |
| Accuracy: | ±0.5 °C (at 25 °C ambient, typical) |
| Emissivity: | adjustable (≈0.01–1.00), default 0.95 |
| Visual camera resolution: | ~640 × 480 (models vary) |
| Storage & connectivity: | On-device image capture (TF/SD), USB-C for PC |
| Mounting: | 1/4″ tripod thread |
Applications:
- Elevated-Skin-Temperature (EST) screening at entrances.
- Checkpoint / crowd-screening stations (airports, malls, transit).
- Quick clinical triage / preliminary temperature checks.
- Industrial spot checks where fast surface-temperature detection is needed.
Package Contents:
- 1× UTi220K thermal camera (unit).
- 1× User manual / quick start guide.
- 1× USB (Type-C) cable for power/data.
- 1× TF/SD card (e.g., 16 GB) supplied with some bundles / manuals mention included card.
- 1× Warranty card / accessory set (varies by seller).
